Scanreco RC400 G2B User Manual

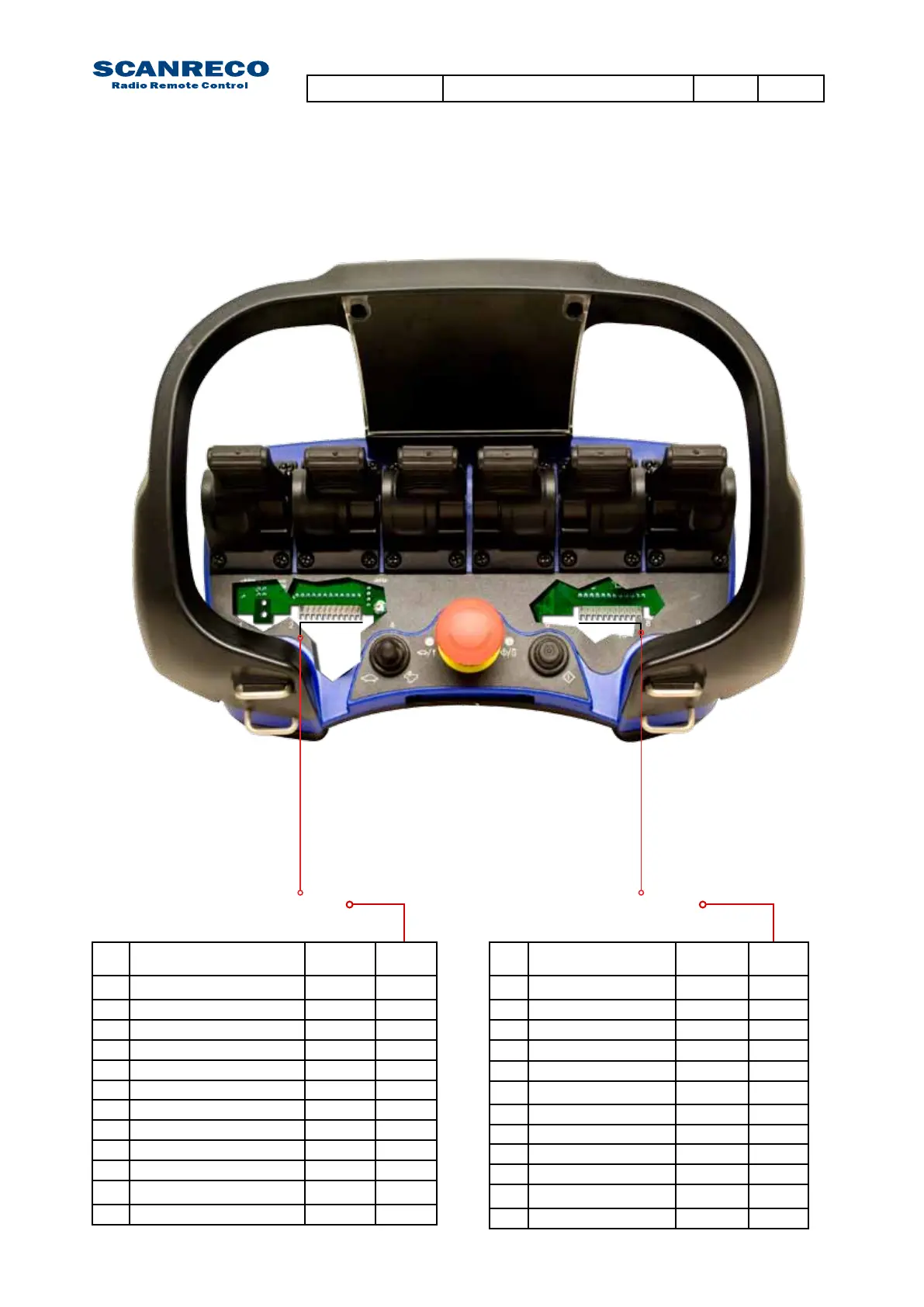

5.3 Portable Control Unit MINI digital inputs
ThedigitalinputsavailableareNOTallbydefaultassignedandigitaloutputontheCentralUnit,
 belowguresonlydeclaresdigitalinputaccess.
No. Type Colour
code
AMP
Pin no.
- Common (GND) Black 1
10 Digital input 33 Pink 2
9 Digital input 06 Grey 3
8 Digital input 02 Brown 4
7 Digital input 32 Purple 5
6 Digital input 05 Orange 6
5 Digital input 31 Black 7
4 Digital input 07 White 8
3 Digital input 04 Blue 9
2 Digital input 03 Green 10
1 Digital input 01 Yellow 11
- Supply output Red 12
No. Type Colour
code
Amp
Pin no.
- Common (GND) Black 1
20 Digital input 36 Pink 2
19 Digital input 35 Grey 3
18 Digital input 34 Brown 4
17 Digital input 37 Purple 5
16 Digital input 08 Orange 6
15 Digital input 09 Black 7
14 Digital input 13 White 8
13 Digital input 12 Blue 9
12 Digital input 11 Green 10
11 Digital input 10 Yellow 11
- Supply output Red 12
Terminal 2Terminal 1
1-12
1-12
Document type Document number PageRev
Service Manual S071 C 17 of 46
