Scanreco RC400 G2B User Manual

Part number information:
Part no: No of outputs Type of connector
47925 8 (1A-4B) Hirchmann GDM3009
47924 12 (1A-6B) Hirchmann GDM3009
47903 16 (1A-8B) Hirchmann GDM3009
48238 12 (1A-6B) AMP-JPT 2-pol
48362 16 (1A-8B) AMP-JPT 2-pol
1A
1A
1
2
3
1A
1B
4A
4B
2A
2B
5A
5B
3A
3B
6A
6B
7A
7B
8A
8B
CONNECTOR:
AMP-JPT 2-pol
CONNECTOR:
Hirchmann GDM3009
1
2
Cablespecication:
Cable Lenght Wires x Dim.
1-8 (A/B) 2 meters 2x0,5mm
2 = PWM-
2 = PWM-
1 = PWM+
1 = PWM+
WIRE:
WIRE:
Girder/cable alignment:
21
1
1
2
2

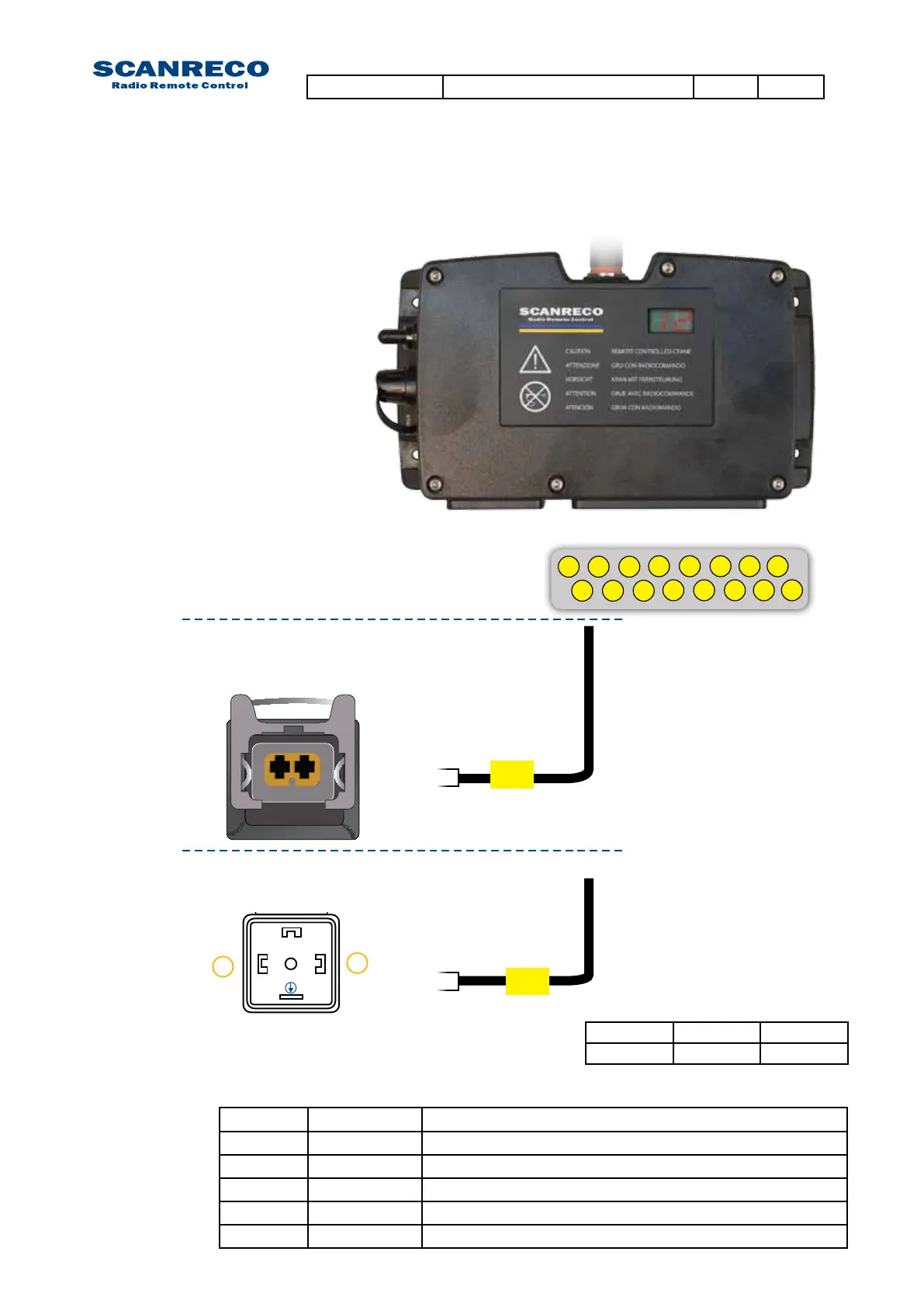

13.3 Standard valve cable kits for PWM solenoids
For connection of analogue functions for PWM solenoids
Central Unit type:
3010
3011
Document type Document number PageRev
Service Manual S071 C 46 of 46
