MAINTENANCE AND REPAIR

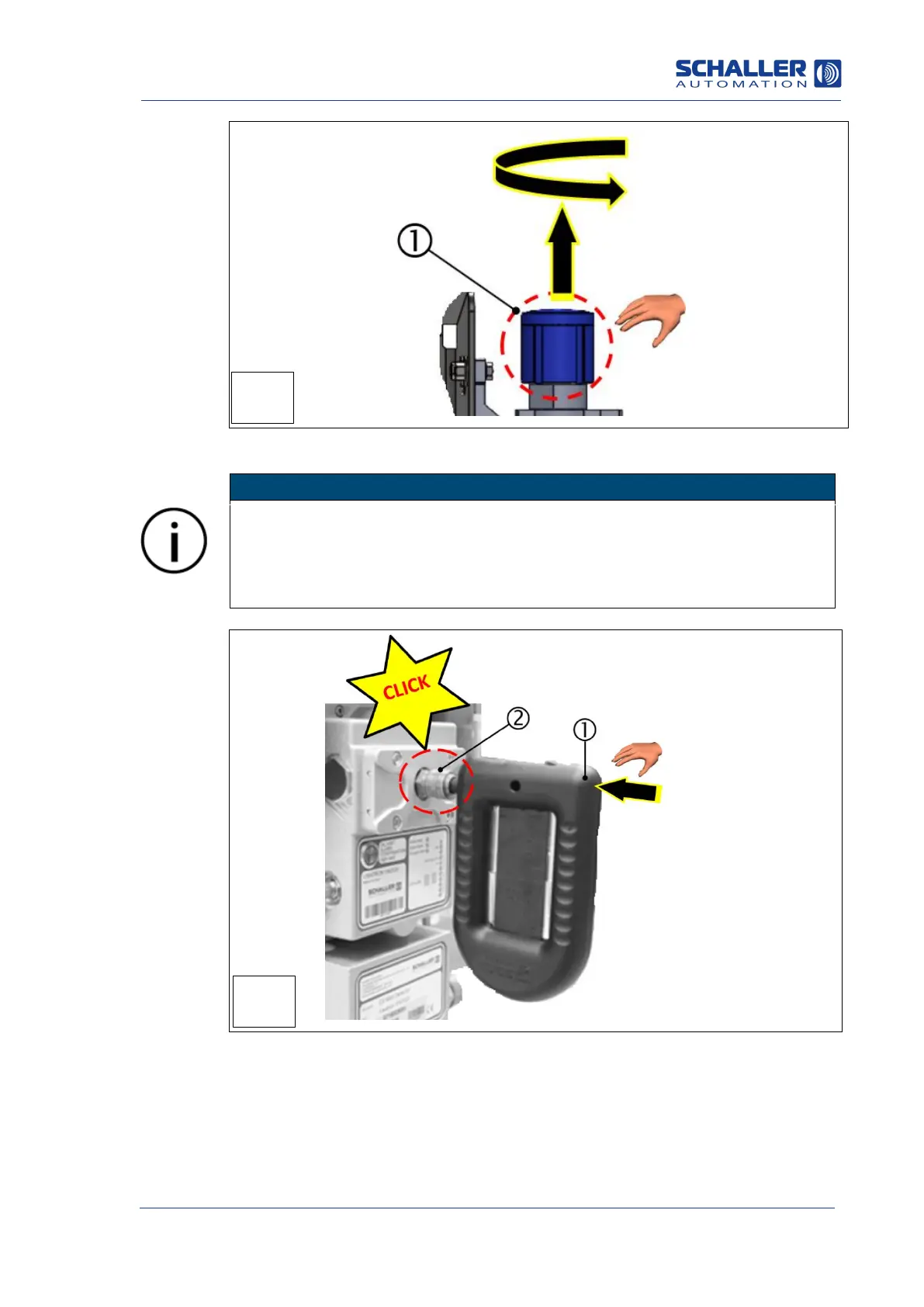

1: Adjusting cap
NOTE
Checking the supply pressure on the oil mist detector
 After completing installation step 7, the supply pressure on the VN2020
measuring head has to be checked again and readjusted if necessary.
 See Section 6.5.3  Section 6.5.3 Setting the negative pressure at the measuring head of
the VN2020 / VN2020 EX
#
1: U-tube manometer
2: Quick-release coupling
6
7
