Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
MAINTENANCE AND REPAIR

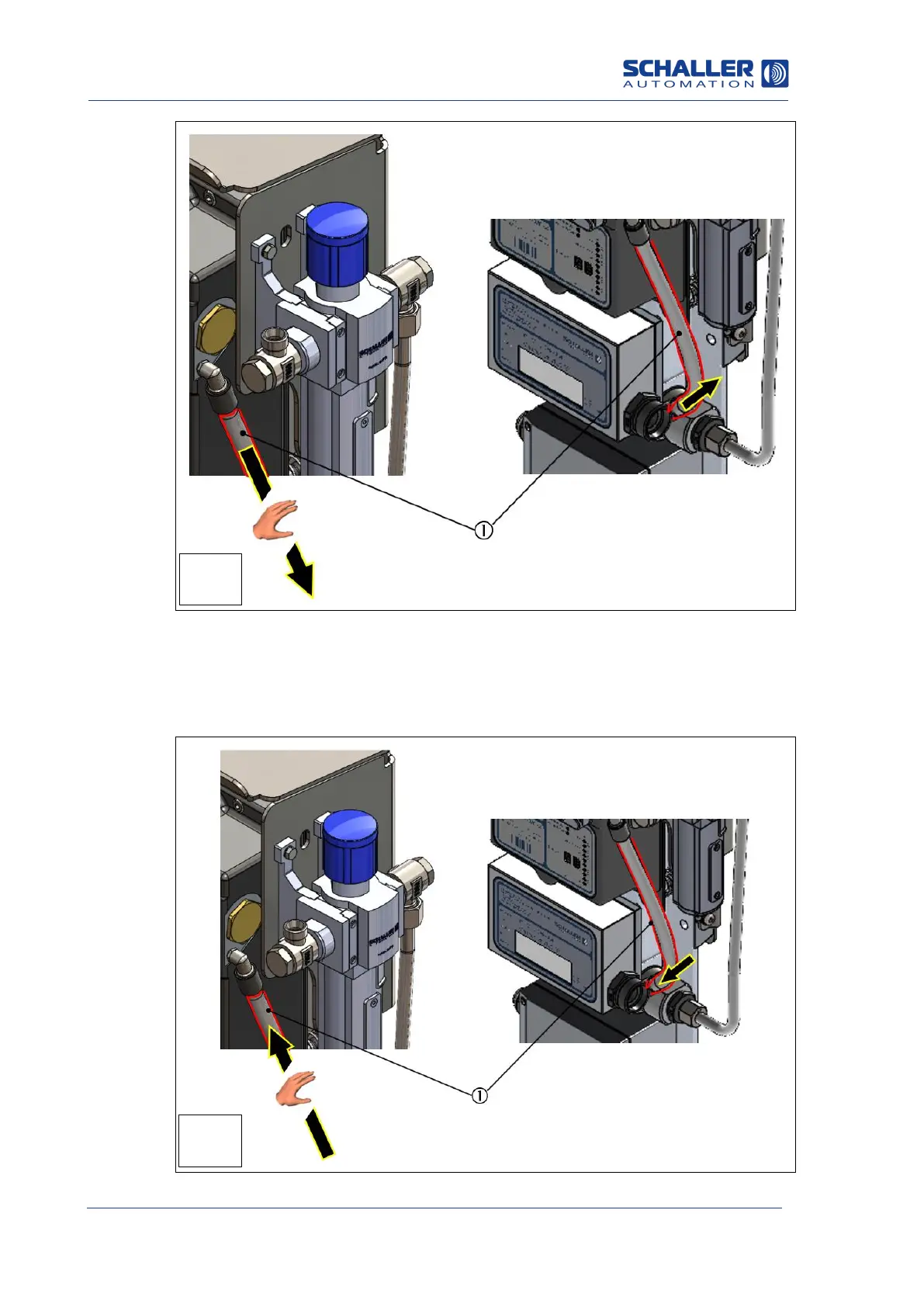

1: Connecting hose (old)
 Pull off the connecting hose to be replaced [] on the right side of the
measuring head and on the venturi injector.
 Insert the new connecting hose back into the two push-in fittings as far as it will
go, as per the figure below.
1: Connecting hose (new)
2
3
