Schiller AT-1 Service Manual

SCHILLER AT-I 3-Channel ECG Unit
SERVICE HANDBOOK Issue 3 September 1999

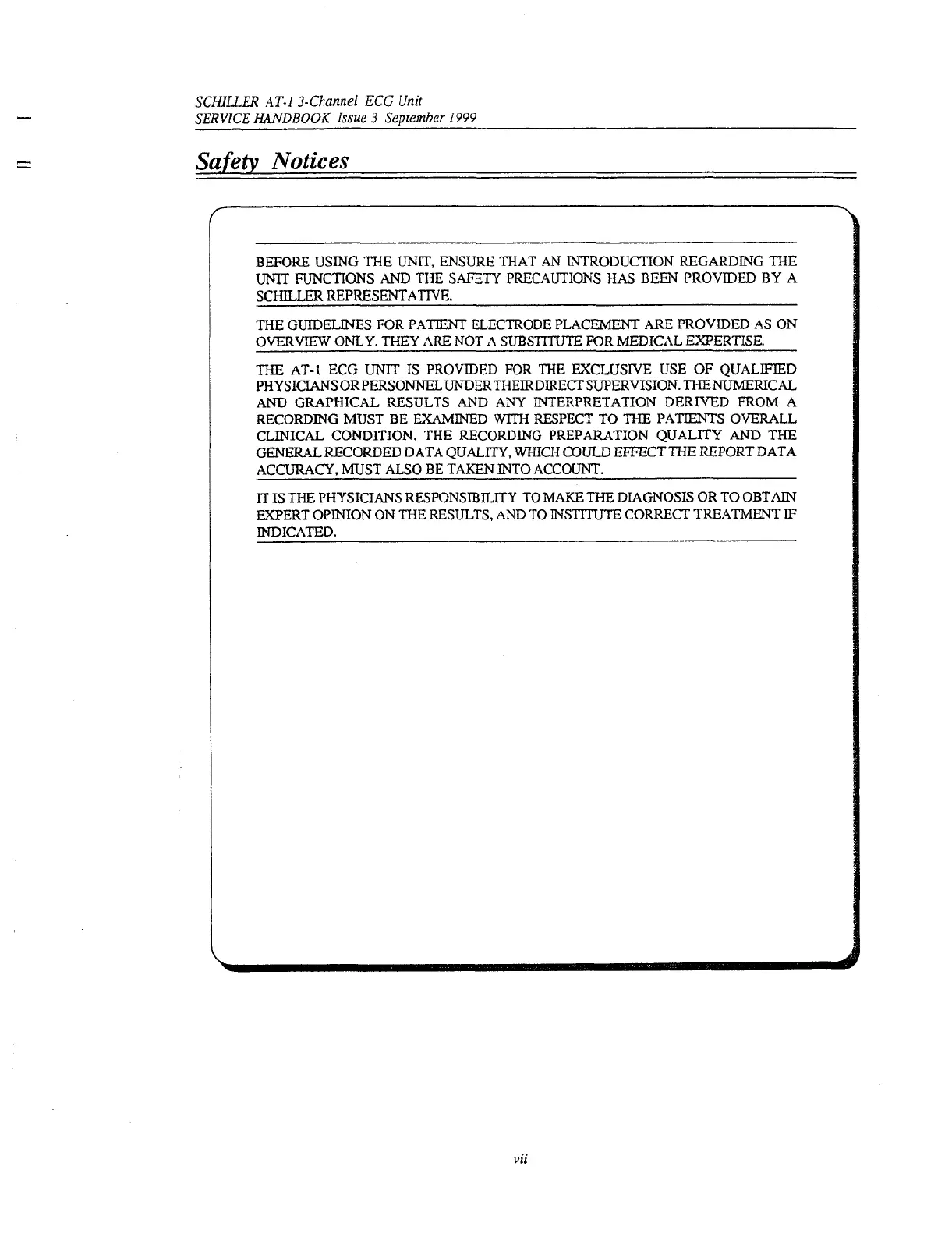

Safety Notices
BEFORE USING THE UNIT, ENSURE THAT AN INTRODUCTION REGARDING THE
UNIT FUNCTIONS AND THE SAFETY PRECAUTIONS HAS BEEN PROVIDED BY A
SCHILLER REPRESENTATIVE.
THE GUIDELINES FOR PATIENT ELECTRODE PLACEMENT ARE PROVIDED AS ON
OVERVIEW ONLY. THEY ARE NOT
A SUBSTITUTE FOR MEDICAL EXPERTISE.
THE AT-1 ECG UNIT IS PROVIDED FOR THE EXCLUSIVE USE OF QUALIFIED
PHYSICIANS OR PERSONNEL UNDER THEIR DIRECT SUPERVISION. THENUMERICAL
AND GRAPHICAL RESULTS AND ANY INTERPRETATION DERIVED FROM A
RECORDING MUST BE EXAMINED
WJTH RESPECT TO THE PATIENTS OVERALL
CLINICAL CONDITION. THE RECORDING PREPARATION QUALJTY AND THE
GENERAL RECORDED DATA QUALITY, WHICH
COULD EFFECT THE REPORT DATA
ACCURACY, MUST ALSO BE TAKEN INTO ACCOUNT.
IT IS THE PHYSICIANS RESPONSIBILITY TO MAKE THE DIAGNOSIS OR TO OBTAIN
EXPERT OPINION ON THE RESULTS, AND TO
INSTITUTE CORRECT TREATMENT IF
INDICATED.
vii

Schiller AT-1 Specifications

General

Type	Electrocardiograph
Display	LCD
Recording	Thermal printer
Weight	2.9 kg
Power Supply	AC or battery
Channels	3
