Service Manual L
7

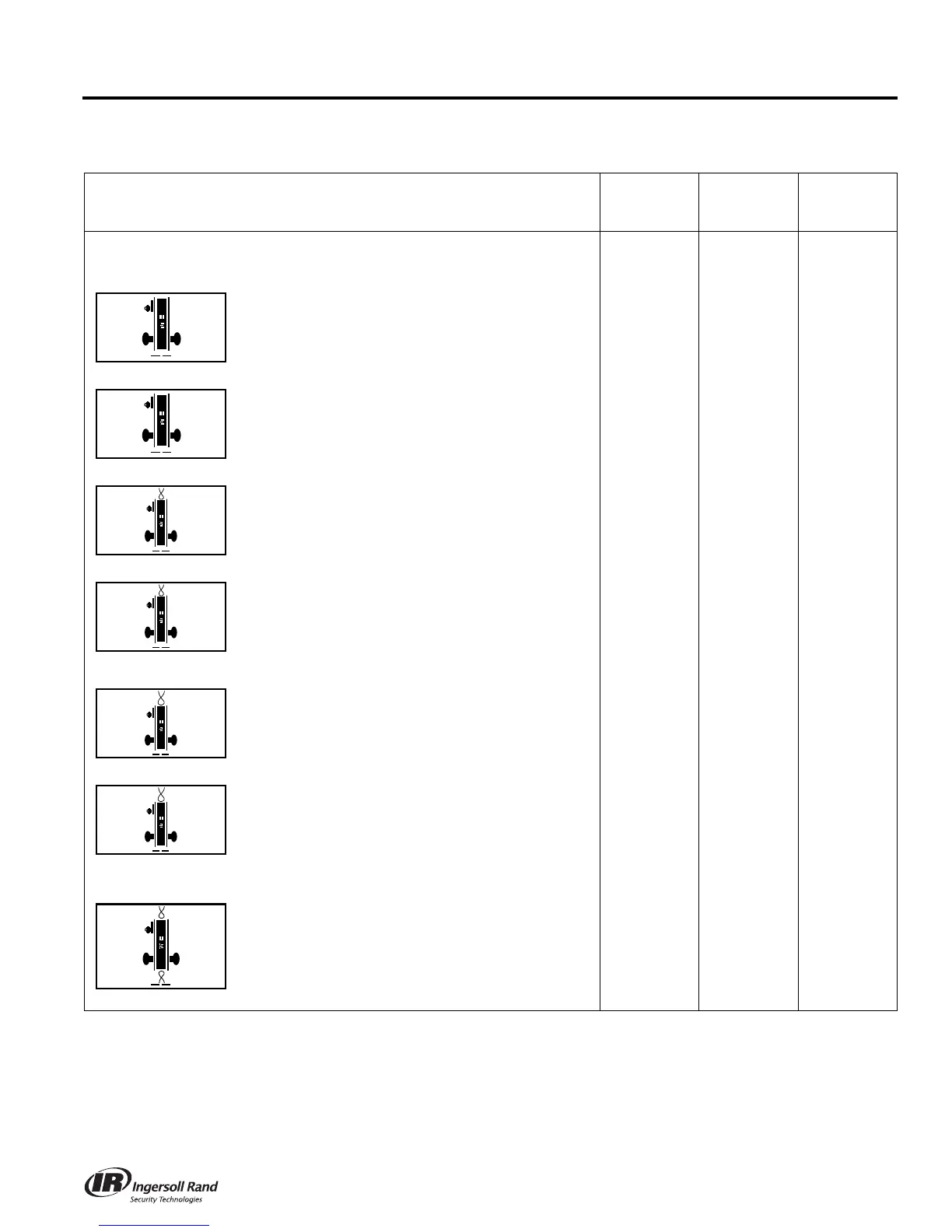

Lock Assembly Drawing Index
Functions
ANSI A156.13, 1994 Series 1000
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Part Number
Keyed Locks
SCHLAGE ANSI
L9080 F07 Storeroom Lock
Latchbolt is retracted by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit.
24 57 L283-134
LV9080
Storeroom Lock with Vandlgard
®
Latchbolt is retracted by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
24 58 L283-173†
L9080EL Electrically Locked (Fail Safe)
Outside knob/lever is continuously locked. Latchbolt is retracted
by key outside or by knob/lever inside. Switch or power failure
allows outside knob/lever to retract latchbolt. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit.
24 59 L283-142
LV9080EL
Electrically Locked (Fail Safe) with Vandlgard
®
Outside knob/lever is continuously locked. Latchbolt is retracted
by key outside or by knob/lever inside. Switch or power failure
allows outside knob/lever to retract latchbolt. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
24 60 L283-174†
L9080EU Electrically Unlocked (Fail Secure)
Outside knob/lever is continuously unlocked. Latchbolt is
retracted by key outside or by knob/lever inside. Inside
knob/lever is always free for immediate exit. Auxiliary latch
deadlocks latchbolt when door is closed.
24 61 L283-143
LV9080EU
Electrically Unlocked (Fail Secure) with Vandlgard
®
Outside knob/lever is continuously unlocked. Latchbolt is
retracted by key outside or by knob/lever inside. Inside
knob/lever is always free for immediate exit. Auxiliary latch
deadlocks latchbolt when door is closed. Vandlgard function
allows exterior lever to rotate freely down, while remaining
securely locked.
24 62 L283-175†
L9080EL-RX Request to Exit Electrically Locked
Same as L9080EL function. In addition, a microswitch
positioned inside the lock case is activated when either inside or
outside knob/lever is rotated. The switch signals the use of that
opening to security systems, allowing a non-disruptive means of
immediate exit. Specify L283-059 for normally closed or
L283-125 for normally open. (Previously XL11-807)
24 59 L283-142
per L283-059
for normally
closed.
L283-142
per L283-125
for normally
open.
† Not sold separately as a part.
Available with Request to Exit feature. See page 114 for Request to Exit information.
