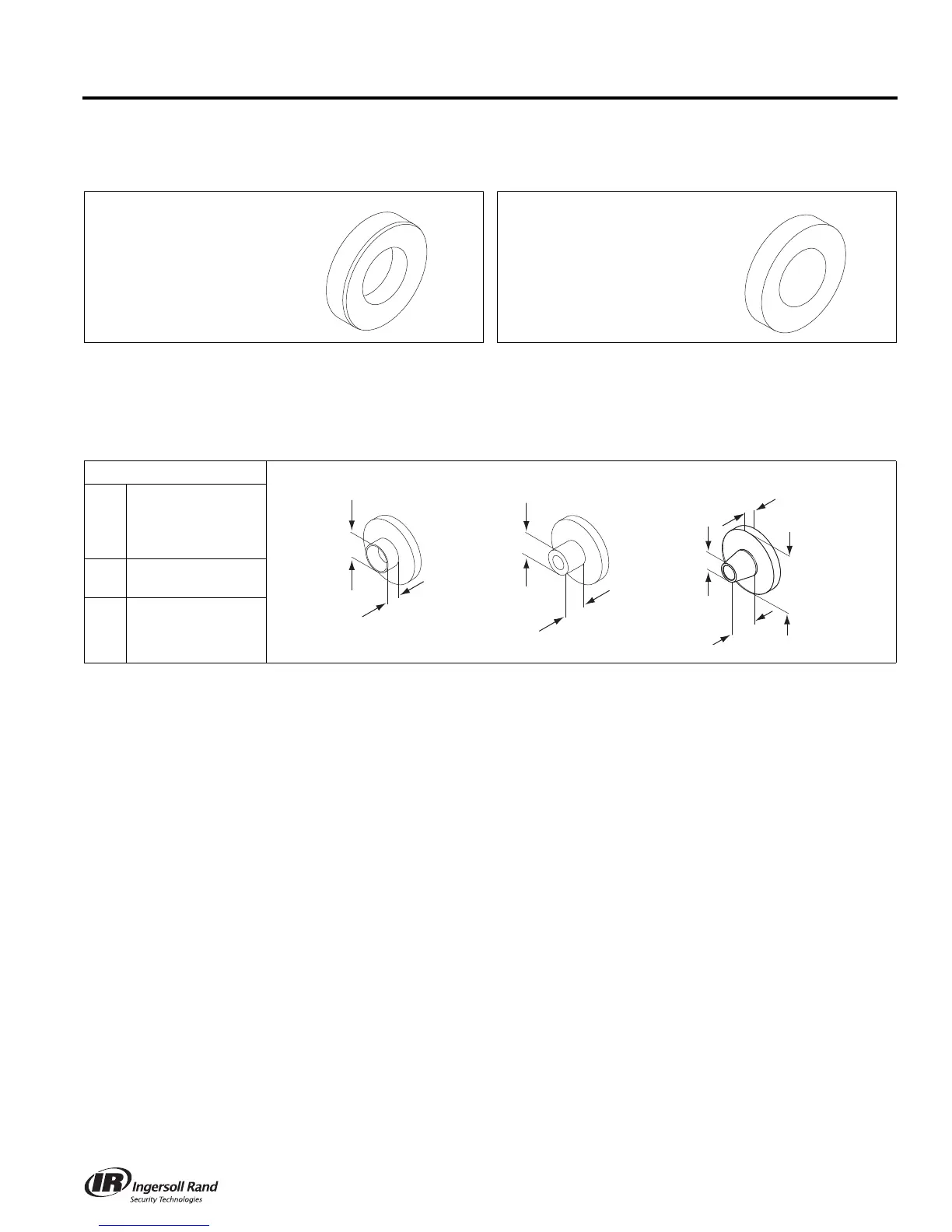

Schlage L463 - Rose Trim a or B; Inside Rose; Blank Outside Rose; Outside Rose Dimensions

Service Manual L
91
Rose Trim A or B
Outside Rose Dimensions
09-404 (Bushing attached at factory) or 09-506 with knob/lever
NOTES: When ordering trim parts, specify the complete design and finish (e.g. 09-402 01A 605).
See Schlage Commerical Price Book for available finishes.
Inside Rose Blank Outside Rose
09-503
Rose Design A – 2¹⁄₈'' dia. x ¹³⁄₃₂''
Rose Design B – 2⁹⁄₁₆'' dia. x ¹³⁄₃₂''
09-508
Rose Design A – 2¹⁄₈'' dia. x ¹³⁄₃₂''
Rose Design B – 2⁹⁄₁₆'' dia. x ¹³⁄₃₂''
Furnished with mounting plate and screws.
For decorative trim see page 95.
Furnished with mounting plate, screws and plug. Used to mount inside
rose trim on doors prepared for trim both sides.
Knob/Lever Design
ABC
A 41, 42
B 01, 02, 03, 05, 06,
07, 12, 17, 18
C
93
ACC, AST, MER,
OME, STA
⁹⁄₁₆"
1¹⁄₈"
⁷⁄₈"
1"
All Designs
¹³⁄₃₂"
⁷⁄₈"
³⁄₄"
2¹⁄₈" Design A
2⁹⁄₁₆" Design B
