Schlage L463 - Trim Options; Cast or Forged Lever Designs; Bent Extruded Bar Lever Design; Inside Lever Assembly

Service Manual L
89
Trim Options

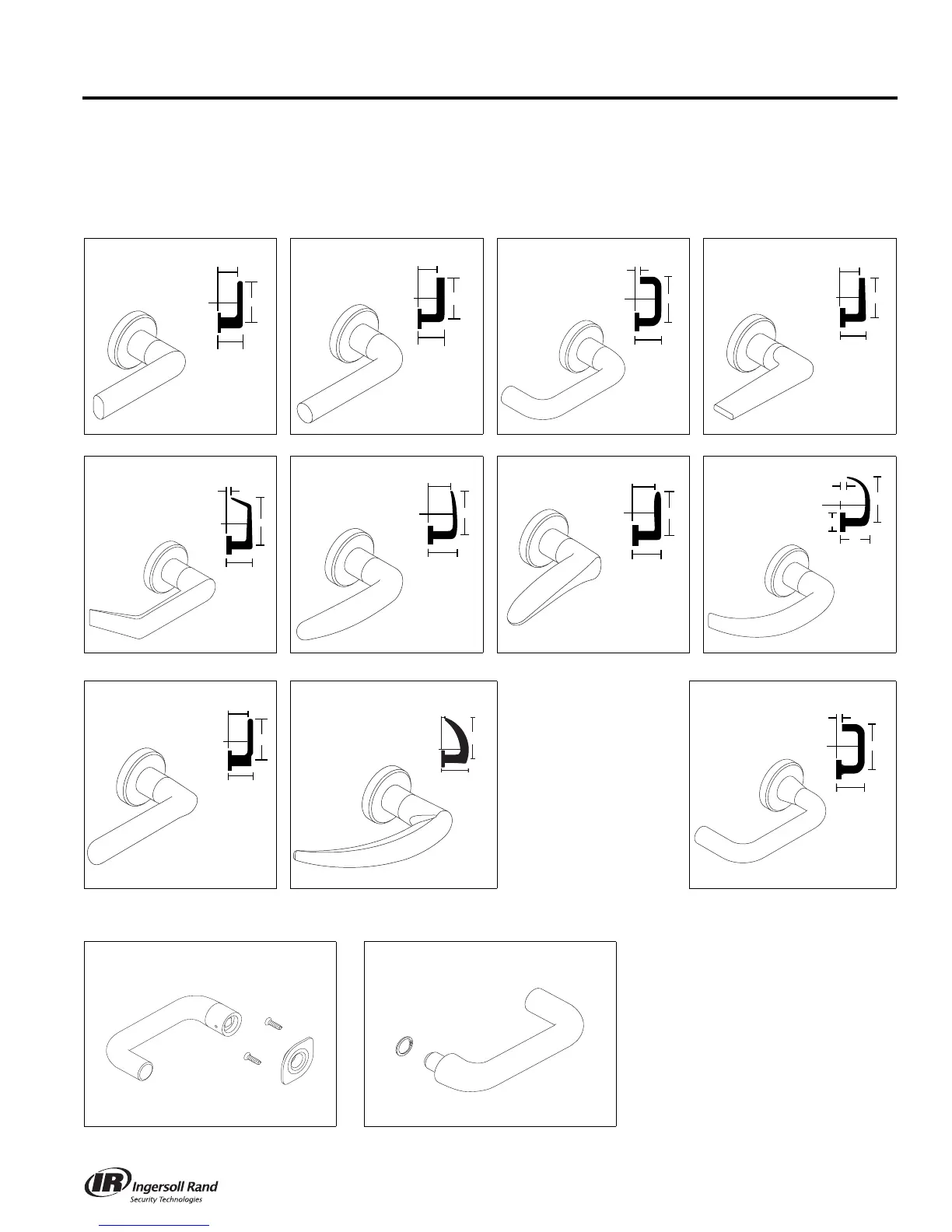

Cast or Forged Lever Designs
Levers shown with rose trim A or B. Also available with L or N escutcheon. See page 92 for escutcheon options.
NOTE: See Schlage Commerical Price Book for available finishes.
01 02 03 05
06 07 12
SPECIFY DOOR HAND
17
18 OME
Bent
Extruded
Bar
Lever
Design
93
Inside Lever Assembly Outside Lever Assembly
09-402 09-401
2¹¹⁄₁₆"
2¹⁄₁₆"
2¹⁄₁₆"
3⁷⁄₈"
2¹³⁄₁₆"
1¹³⁄₁₆"
1¹³⁄₁₆"
4³⁄₄"
4³⁄₄"
2¹³⁄₁₆"
2"
¹⁄₂"
2⁷⁄₈"
3³⁄₄"2⁹⁄₃₂"
2⁹⁄₃₂"
2¹⁄₂"
¹⁄₂"
4⁵⁄₈"2"
2¹⁵⁄₁₆"
4⁵⁄₈"2³⁄₈"
1³¹⁄₃₂"
3¹⁄₁₆"
max.
2"
2"
4⁵⁄₈"
¹⁄₂"
3"
4³⁄₄"
2¹⁄₈"
2¹⁵⁄₁₆"
2¹¹⁄₁₆"
2¹⁄₃₂"
2¹⁄₃₂"
4⁷⁄₈"
²¹⁄₅₀"
2 ³⁄₁₀ "
5¹⁄₂₀"
3⁵⁄₁₆"
5"
3¹⁄₈"
2⁹⁄₃₂"
³⁄₈"
