Service Manual L
59

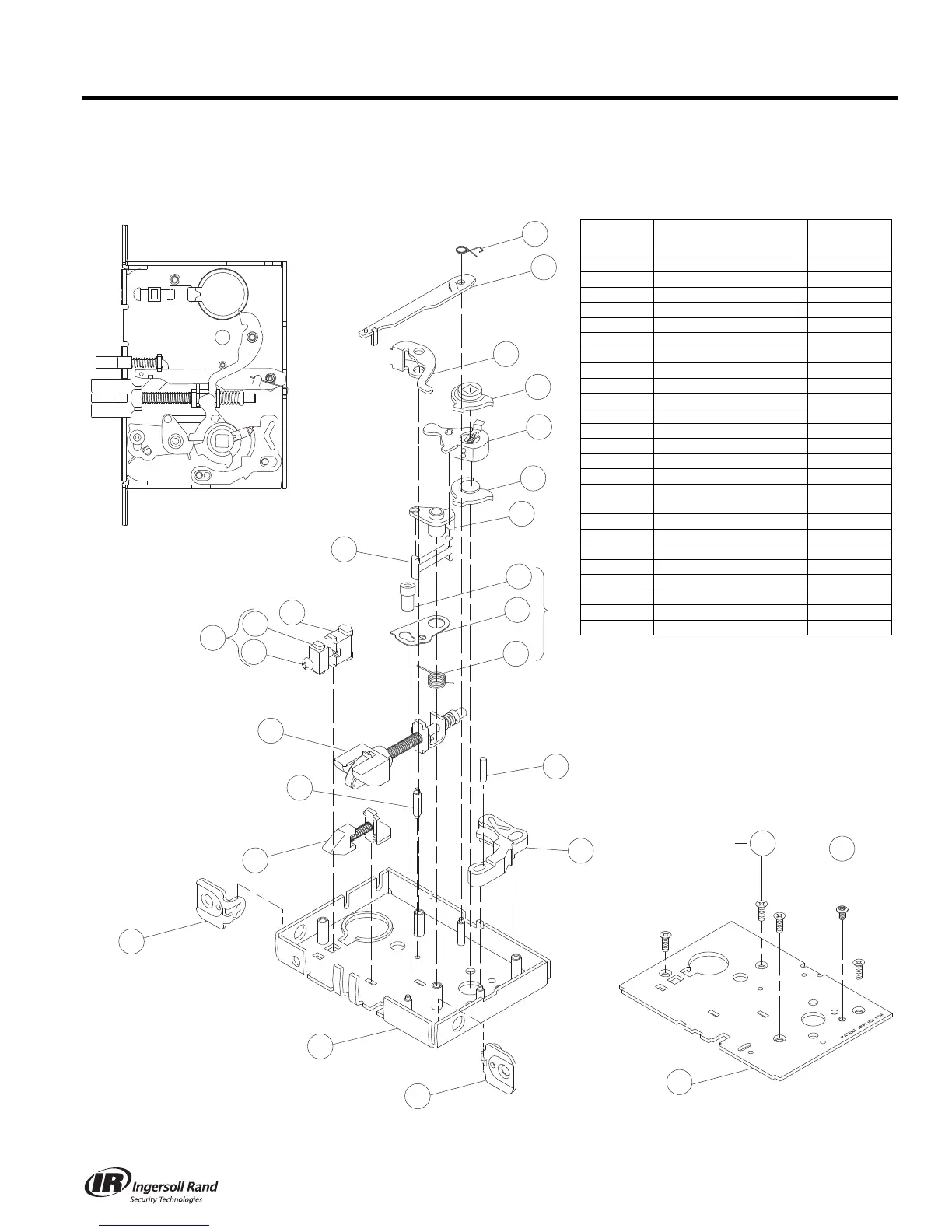

Assembled Lock Case L283-173
** Please see “Assembly of Lock Case Parts” on page 87.
Lock case assembly shown for RH and RHR doors. See page 117 for instructions on changing the lock hand.
62
60
63
64
61
54
4
58
52
26
41
24
22
33
50
25
39
55
10
6
56
53
5
51
51
13
15
**
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
15 Standoff Post L583-004
22 Retractor Link L583-024
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
33 Stop Spring L583-044
39 Transfer Lever L583-051
41 Catch Pin L583-056
50 Auxiliary Stop L583-196
51 1 ¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
60 Retractor Lever Assy L283-147
61 Crank Retractor L583-383
62 Bottom Hub L583-386
63 Top Hub L583-387
64 Retractor Catch L583-345
