Schlage L463 - L9460 X XL11-635

L Service Manual
78

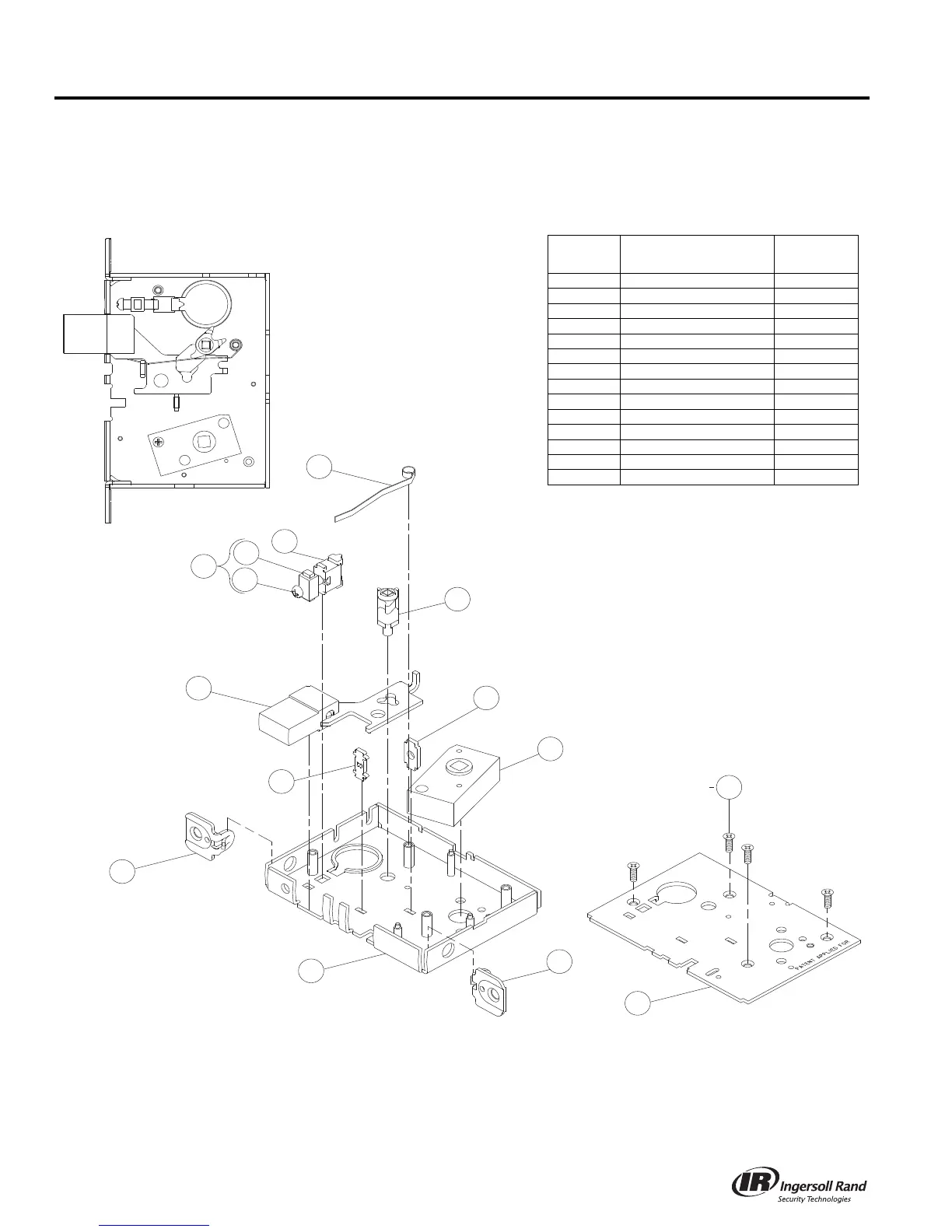

Lock Case Assemblies
L9460 x XL11-635
Assembled Lock Case XL11-661
NOTE: Lock case assembly shown for LH and LHR doors.
4
58
52
27
55
10
3
51
42
16
31
56
53
51
13
30
Number Description
Part
Number
3 Deadbolt L283-003
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
16 Latchbolt Guide L583-015
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
42 Spindle Anchor L583-057
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
