L Service Manual
14

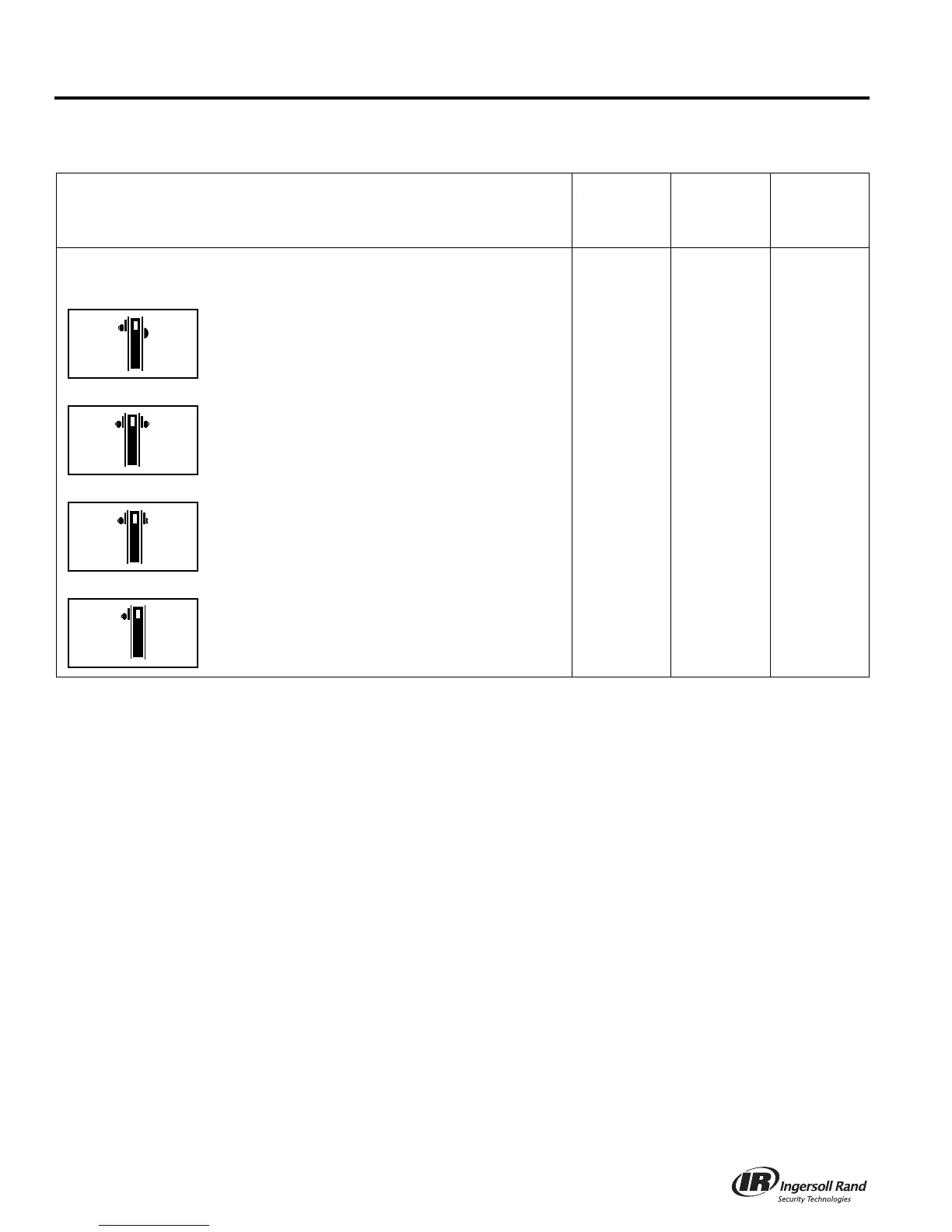

Lock Assembly Drawing Index
Functions
ANSI A156.13, 1994 Series 1000
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Part Number
Keyed L9000-Series Deadbolts
SCHLAGE ANSI
L9460 F17 Cylinder by Thumbturn Lock
Deadbolt is operated by key outside or turn piece inside.
29 76 L283-139
L9462 F16 Double Cylinder Lock*
Deadbolt is operated by key either side.
29 76 L283-139
L9463 Classroom Lock
Deadbolt is operated by key outside. Inside cylinder turn retracts
deadbolt but cannot extend it.
29 76 L283-139
L9464 F18 Cylinder Lock
Deadbolt is operated by key from one side. No trim on
opposite side.
29 76 L283-139
* CAUTION: Double cylinder locks on residences—or on any door in any structure which are used for egress—are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
