L Service Manual

106

Concealed Cylinders

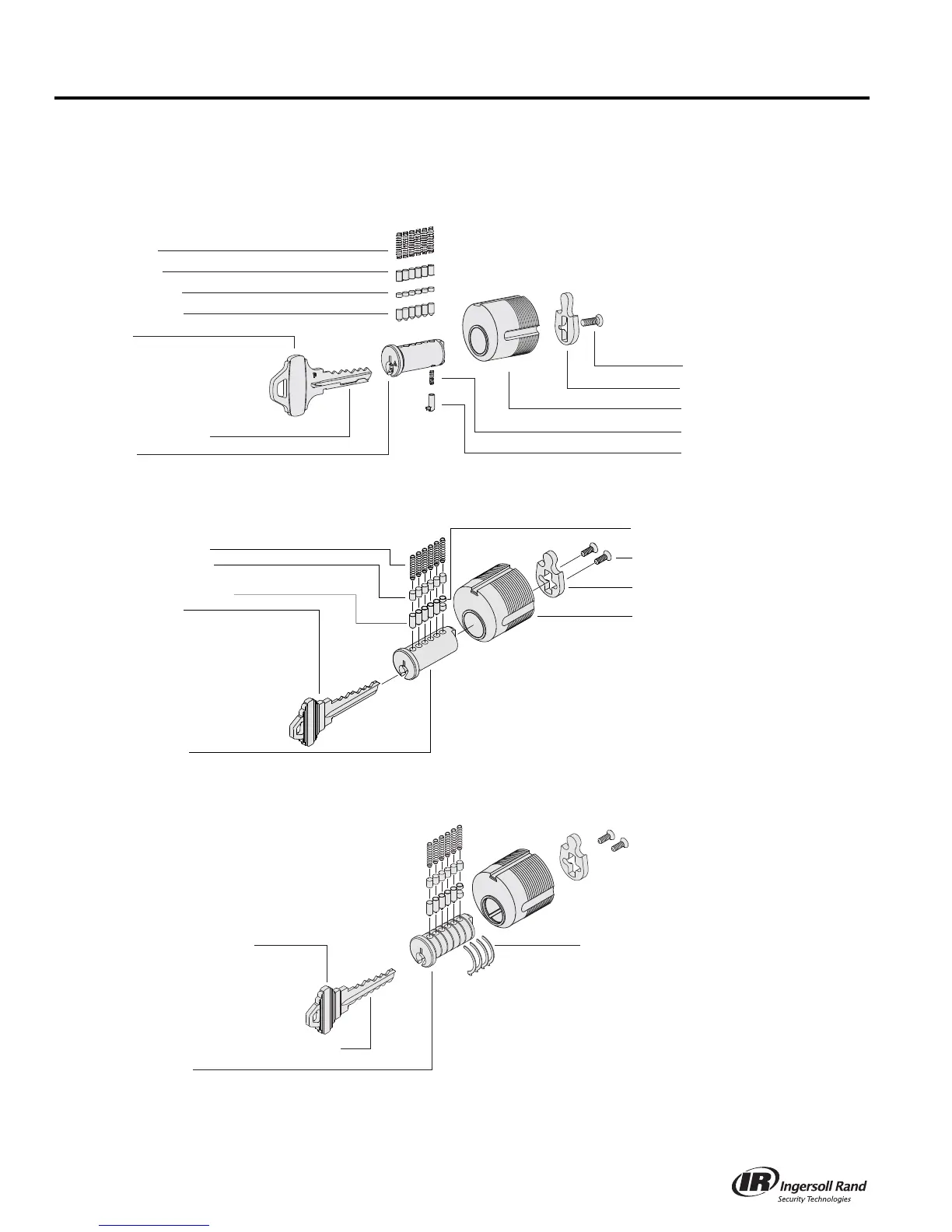

Exploded View—Everest

Mortise Cylinder

Exploded View—Classic Mortise Cylinder

Exploded View—Hotel Mortise Cylinder

Undercut groove

Springs

Top pins

Master pins

Bottom pins

Key

Plug Check pin

Check pin spring

Shell

Cam (L583-153 shown)

Cam screw

Cam screws

Cam (L583-254 shown)

Shell

Springs

Top pins

Bottom pins

Key

Plug

Master pins

Emergency key Stop rings (4)

Shown for right hand (RH) doors.

Notched to bypass stop rings

Plug

Furnished with grooves for stop rings.
