Schlage L463 - L-Series (Except L9060;LV9060 Outside); L-Series L9060;LV9060 Outside; Concealed Cylinders

Service Manual L
107

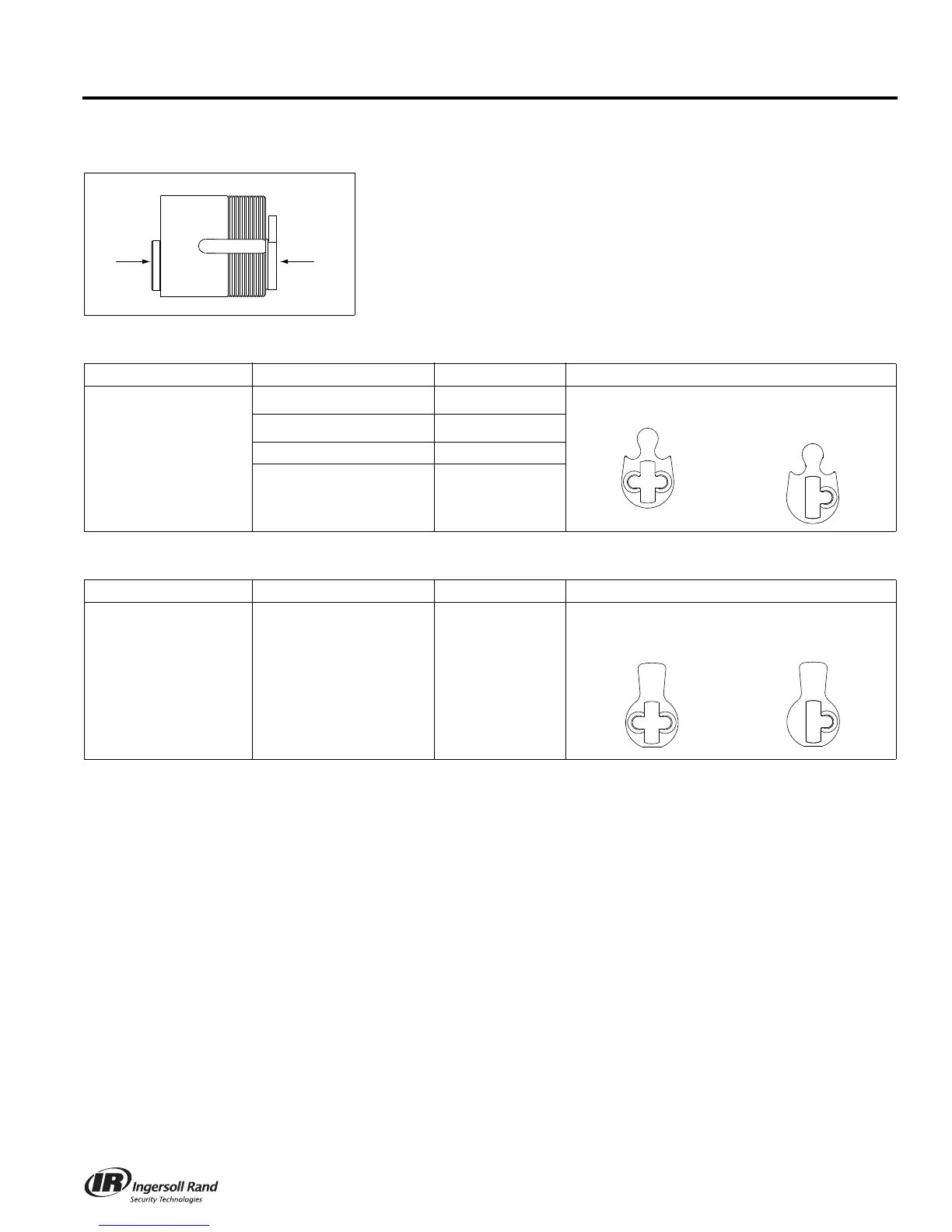

Concealed Cylinders
L-Series (except L9060/LV9060 Outside)
L-Series L9060/LV9060 Outside
NOTES: 1) Everest
®
hotel function cylinders are available in 1¹⁄₈'', 1¹⁄₄'', and 1³⁄₈'' only.
2) 1¹⁄₈'' (Dim=118) cylinders are furnished unless otherwise specified. Cylinder length depends on function, trim and door thickness.
3) Finishes: 606 and 626.
4) Specify LKB if 0-bitted Primus cylinders are required less key blanks.
5) Extended lengths are available.
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder Only:
L Escutcheon
Conventional 30-004
L583-254
Conventional
L583-153
Everest
®
and
Primus
®
Primus
®
Controlled Access
20-789
Primus UL437 20-589
Hotel Function 30-005*
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder Only:
L Escutcheon
Conventional 26-023
B502-191
Conventional
B502-948
Everest
®
and
Primus
®
* Specify hand for hotel function cylinders. Not available in Primus
®
. Emergency keys must be ordered separately.
Plug
Cam
