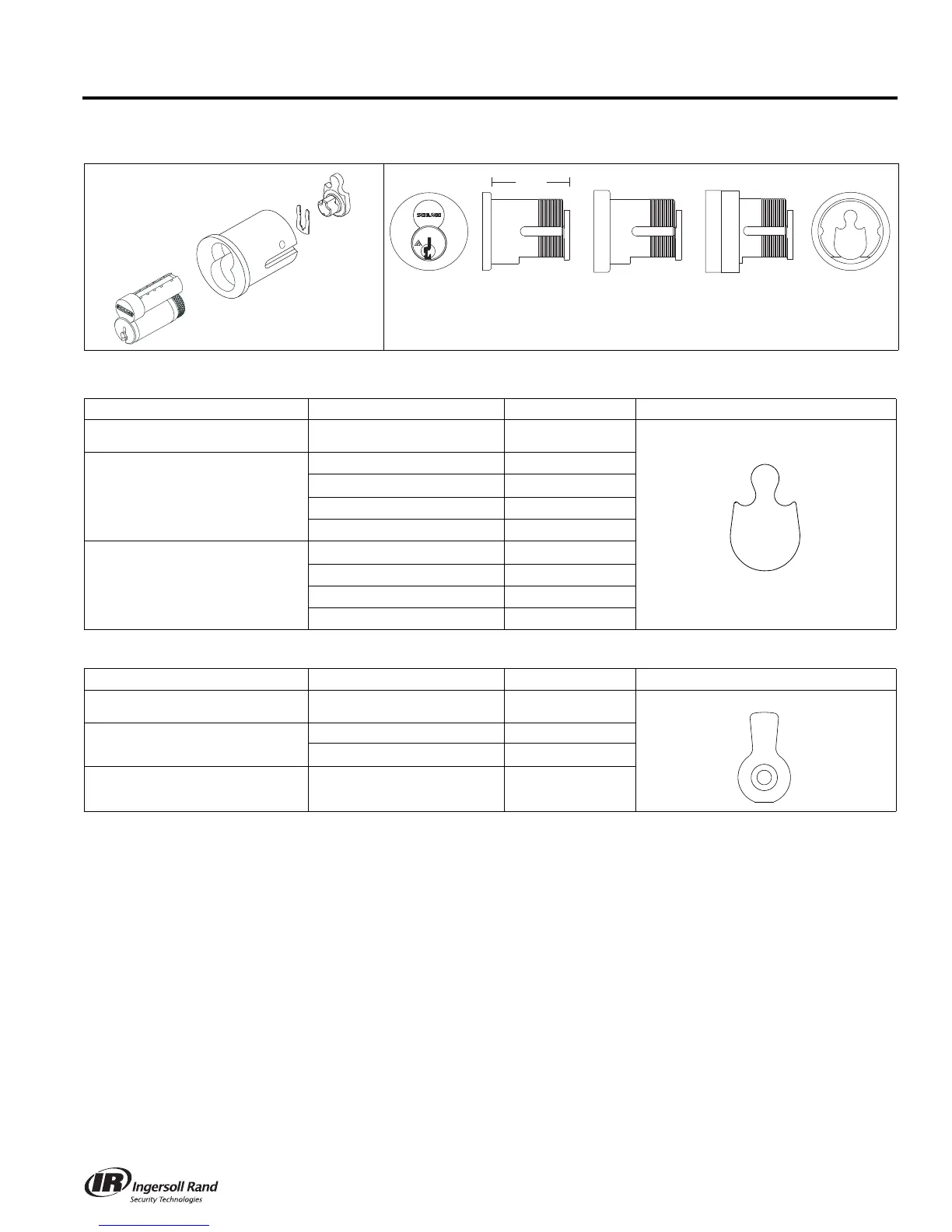

Schlage L463 - L-Series (Except L9060;LV9060 Outside); L-Series L9060;LV9060 Outside

Service Manual L
109
Full Size Interchangeable Cores
L-Series (except L9060/LV9060 Outside)
L-Series L9060/LV9060 Outside
* Can be ordered with construction core.
** Specify hand for hotel function cylinders. Not available in Primus
®
. Emergency key must be ordered separately.
*** For this configuration with conventional core, order 30-030 cylinder and 36-082-050 blocking ring.
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder Only:
L & N Escutcheons
Housing Less Core
30-016 L583-489
Cylinder with Compression Ring &
Spring: L & N Escutcheons
Conventional Core
30-008*
Primus
®
Core
20-798
Hotel Function
30-010**
Housing Less Core
30-007
Cylinder with Compression Ring,
Compression Spring and ³⁄₈” Blocking
Ring: Rose Trim
Everest
®
or Classic
30-138*
Primus Core
20-776
Hotel Function Everest or Classic
30-140**
Housing Less Core
30-137
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder Only:
L & N Escutcheons
Housing Less Core 30-032
K510-680
Cylinder with Compression Ring &
Spring: L & N Escutcheons
Everest or Classic 30-030*
Primus
Core
20-782
Cylinder with Compression Ring,
Compression Spring and ¹⁄₂” Blocking
Ring: Rose Trim***
Primus Core 20-783
Cylinder Only Front Cylinder with
Compression
Ring & Spring
Cylinder with
Blocking Ring
Back
1¹⁄₂"
