Service Manual L

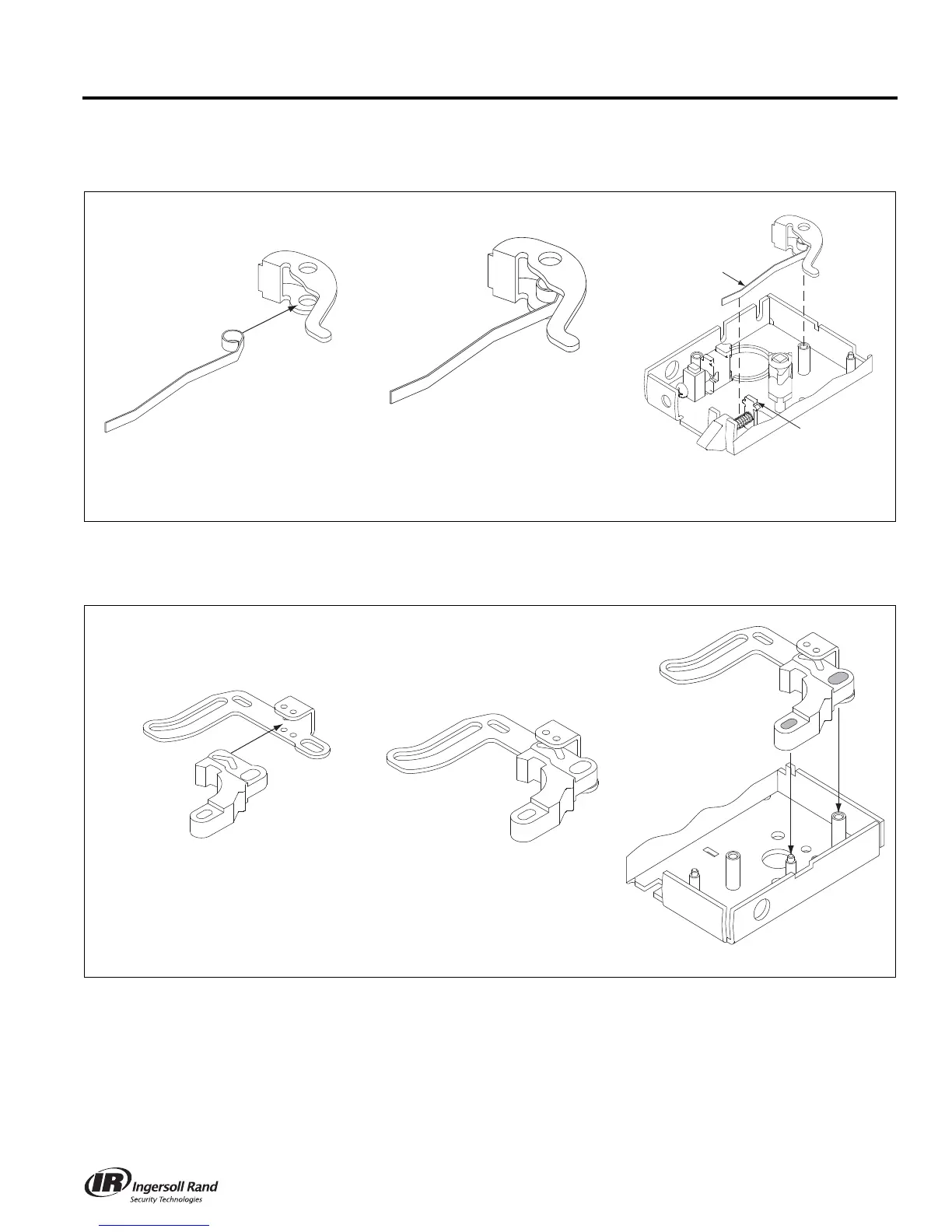

Assembly of Lock Case Parts

Turn Hub Spring and Transfer Lever

Place joined parts on the post with the arm of

the Turn Hub Spring against the Auxiliary Bar

Guide.

Locking Catch / Retractor Catch and Locking Link

Turn Hub Spring

Transfer Lever

Arm

Auxiliary Bar Guide

Locking Catch

Locking Link
