Service Manual L
13

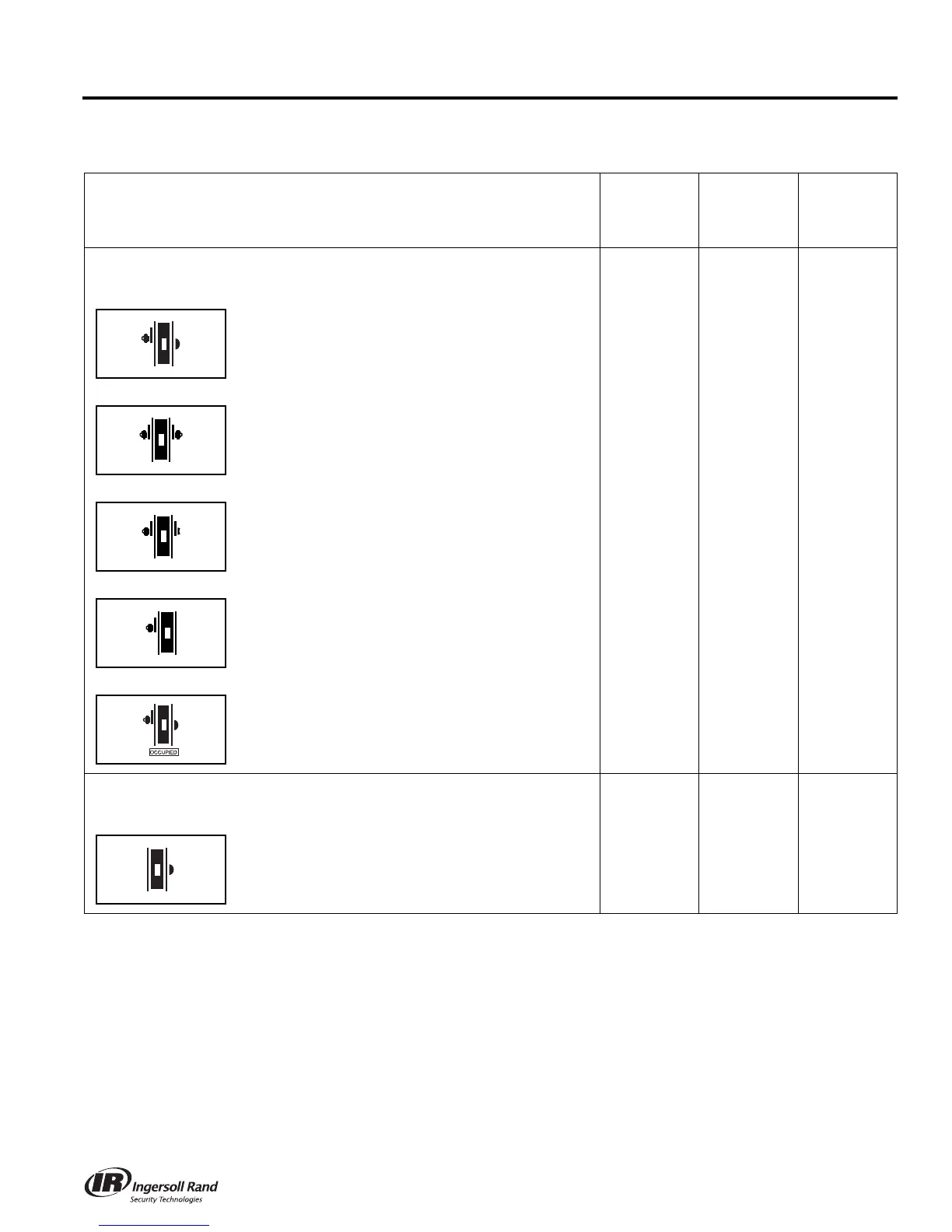

Lock Assembly Drawing Index
Functions
ANSI A156.13, 1994 Series 1000
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Part Number
Keyed L400-Series
SCHLAGE ANSI
L460 E06071 Cylinder by Thumbturn Lock
Deadbolt is operated by key outside or thumbturn inside.
Available with rose trim only.
17 47 L283-099
L462 E06061 Double Cylinder Lock*
Deadbolt is operated by key on either side. Available with rose
trim only.
17 47 L283-099
L463 E06091 Classroom Lock
Deadbolt is operated by key from outside. Inside cylinder turn
retracts deadbolt but cannot extend it. Door hand must be
specified. Available with rose trim only.
17 47 L283-099
L464 E06081 Cylinder Lock
Deadbolt is operated by key from one side. No trim on opposite
side. Available with rose trim only.
17 47 L283-099
L496 Deadbolt with “Occupied” Indicator
Deadbolt is operated by key outside or turn piece inside.
Furnished with 09-611 per L583-375 indicator. When deadbolt is
thrown “OCCUPIED” plate is displayed. Available with rose trim
only. (Previously XL11-911)
17 47 L283-099
Non-Keyed L400-Series
SCHLAGE ANSI
L480 F14 Door Bolt
Deadbolt is operated by thumbturn one side. No trim on
opposite side.
17 47 L283-099
* CAUTION: Double cylinder locks on residences—or on any door in any structure which are used for egress—are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
