L Service Manual
4

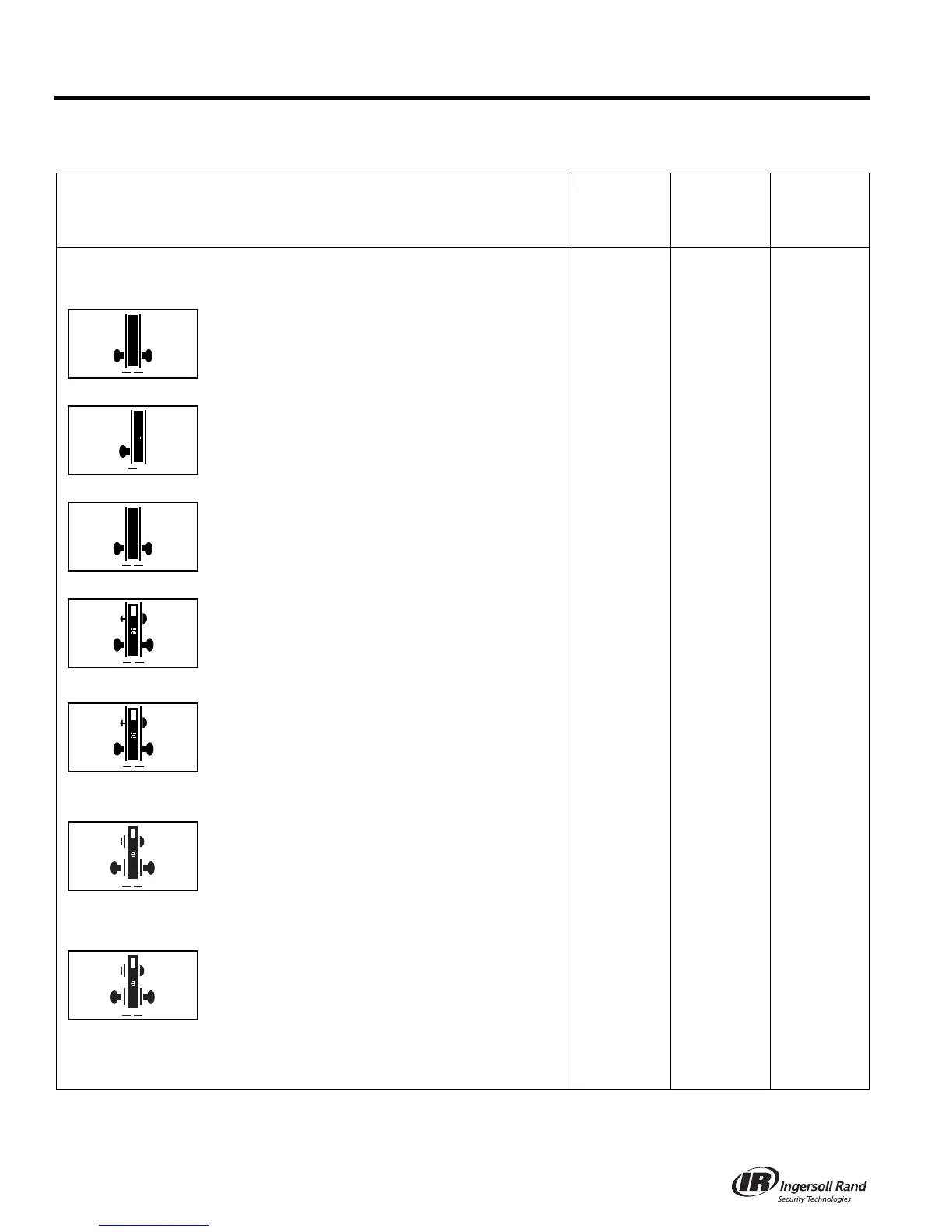

Lock Assembly Drawing Index
† Not sold separately as a part.
Functions
ANSI A156.13, 1994 Series 1000
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Part Number
Non-Keyed Locks
SCHLAGE® ANSI
L9110 x XL11-741 Double Dummy with Active Trim
Knob/lever is always active on both sides. Includes lock case
and armor front. Specify XL11-741 for use on active door, or
specify XL11-743 for use on inactive door (furnished with armor
front with cutout to receive deadbolt).
26 — —
L9175 Single Dummy with Lock Case
Inoperable knob/lever on one side. Includes lock case and
armor front.
27 68 L283-144
L9176 Double Dummy with Lock Case
Inoperable knob/lever on both sides. Includes lock case and
armor front.
28 69 L283-145
L9440 Privacy with Deadbolt
Latchbolt is retracted by knob/lever from either side. Deadbolt is
thrown or retracted by inside turn piece. Throwing deadbolt locks
outside knob/lever. Rotating inside knob/lever simultaneously
retracts deadbolt and latchbolt and unlocks outside knob/lever.
To unlock from outside, remove emergency button, insert turn
piece in access hole and rotate. (Previously XL11-761)
19 70 L283-062
LV9440
Privacy with Deadbolt with Vandlgard
®
Latchbolt retracted by knob/lever from either side. Deadbolt is
thrown or retracted by inside turn piece. Throwing deadbolt locks
outside knob/lever. Rotating inside knob/lever simultaneously
retracts deadbolt and latchbolt and unlocks outside knob/lever. To
unlock from outside, remove emergency button, insert turn piece
in access hole and rotate. Vandlgard function allows exterior lever
to rotate freely down while remaining securely locked.
19 71 L283-181†
L9444 Privacy with Deadbolt and Coin Turn
Latchbolt is retracted by knob/lever from either side. Deadbolt is
thrown or retracted by inside turn piece or outside coin turn.
Throwing deadbolt locks outside knob/lever. Rotating inside
knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose trim
only. Specify per L283-056 for Torx screws.
(Previously XL11-868)
21 70 L283-062
LV9444
Privacy with Deadbolt and Coin Turn with Vandlgard
®
Latchbolt is retracted by knob/lever from either side. Deadbolt is
thrown or retracted by inside turn piece or outside coin turn.
Throwing deadbolt locks outside knob/lever. Rotating inside
knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose trim
only. Vandlgard function allows exterior lever to rotate freely
down while remaining securely locked. Specify per L283-056 for
Torx screws.
21 71 L283-181†
