23

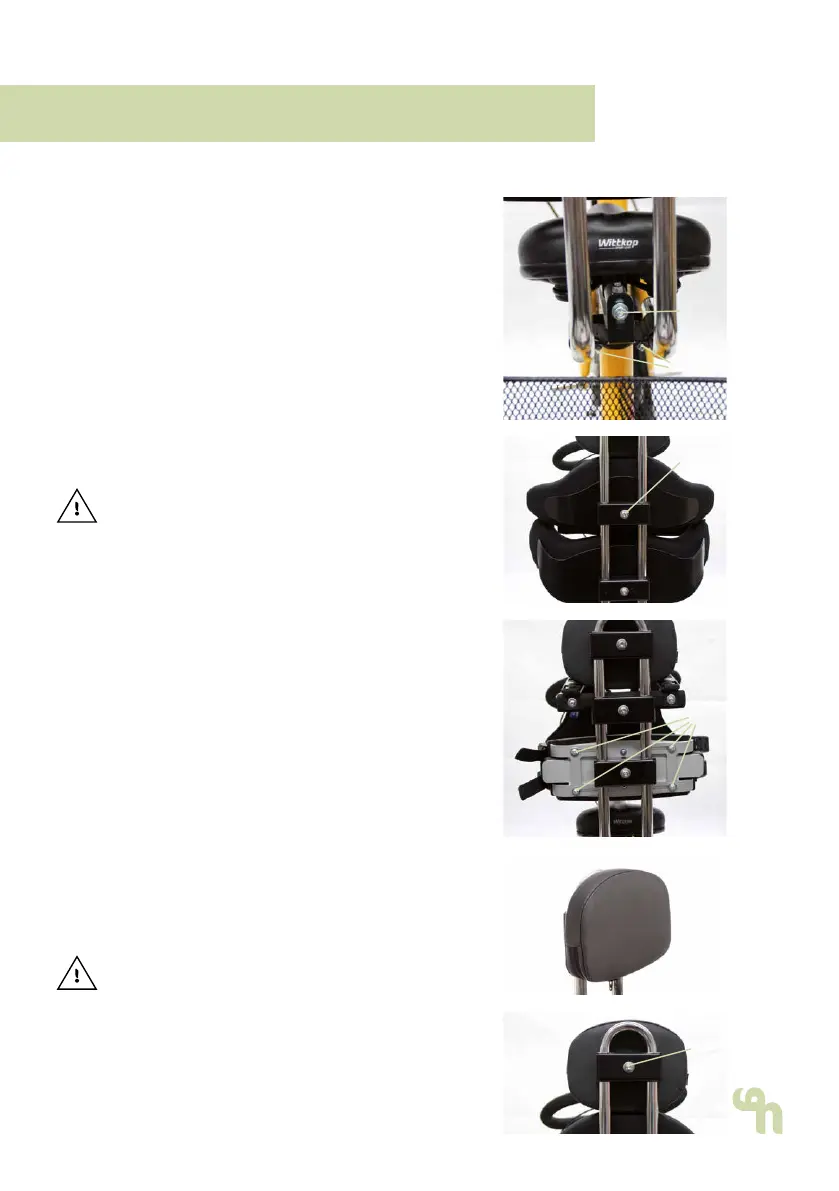

4. Accessories.
4.1 Dynamic back and pelvic guide pelotte pads
All back and pelvic guide pelotte pads can
only be used in connection with a holding
bracket (see Point 4.7). For depth adjustment
of the pelotte pad holding bracket, please
loosen the screws (A) on the right and left-
hand sides of the support under the saddle,
and bring the holding bracket into the requi-
red position.
The angular adjustment of the holding bracket
takes place after loosening the screw (B) on
the support. The pelotte pads are adjusted
in height after loosening the screw (C) on the
respective support.
Use only original accessories as otherwise the
warranty will become void.
4.1.1 Width adjustable back and pelvic gui-
de pelotte pads
To adjust the height, handle and depth of
the back and pelvic guide pelotte pads, see
Point 4.1. The back and pelvic pelotte pads
can be adjusted in width. To do this, loosen
the screws (D) on the rear of the back or pelvic
guide pelotte pads and bring them into the
required position.
4.2 Headrest
The headrest can only be used in connection
with a holding bracket (see Point 4.7) and is
adjustable in height. In order to adjust the
height, loosen the screw (E) and bring the
headrest into the required position.
After each adjustment, please retighten all
screw connections!
A
B
D
E
C
