5. Foot positioner.

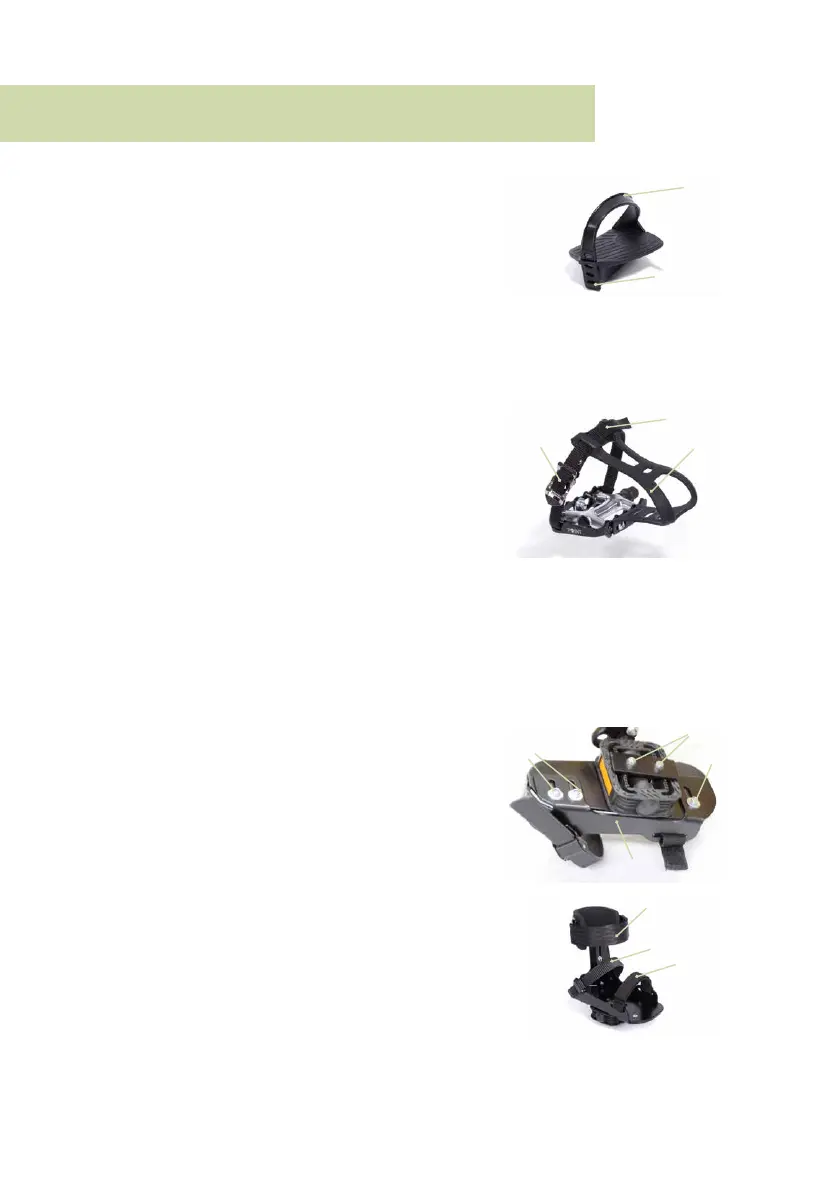

5.1 Exercise bike pedals

The exercise bike pedals are characterised by

their integrated balancing weight, whereby

the tread surface automatically balances its-

elf horizontally. This permits the rider to climb

on independently. The strap (A) is adjustable

in length, and at the same time provides easy

side guidance. To adjust the length of the strap (A) pull on the lower end in

order to loosen the strap (A) from the plug (B). Now adjust the strap (A) to

the required length.

5.2 Foot positioning pedals

The foot positioning pedals are characteri-

sed through the integrated balancing weight,

whereby the treads are automatically horizon-

tally balanced. This permits the rider to step

onto them independently. The strap (C) is ad-

justable in length, and at the same time pro-

vides easy side guidance. The cage mounted

at the front of the pedals (D) prevents the toes from slipping through at the

front. In order to adjust the strap (C) in length, pull the strap (C) back out

of the strap guide (E). Now the strap (C) can be shortened through pulling

and extended through pressing under the lock. To ﬁx the adjustment, gui-

de the strap (C) back through the strap guide (E).

5.3 Foot pans

The foot pans provides side guidance and

thus prevents internal or external rotations of

the foot. To guarantee this function, the foot

pan is adjustable in width, which can be con-

ducted by loosening the three screws (F) and

shifting the side part (G) in the slotted hole.

The foot pans are mounted at the factory

centrally on the pedals. In order to shift the

pressure point under the foot, it must be mo-

ved in four positions. To do this, the nuts (H)

under the pedals must be removed and the

screws (F) moved into the required posi-

tions. Then the counterplate must be placed

onto the screws(F) and the nuts (H) must be

re-tightened. By loosening the nuts (H) and

twisting the foot pan on the pedal, it is pos-

sible to adjust the rotation. In order to secure the user in the foot pan, pull

the snap-in strap (I) for preliminary ﬁxation. Then ﬁx the straps (J) and (K).
