Design and description
14
01.00 | ECG | Assembly and Operating Manual | en | 389769
4 Design and description

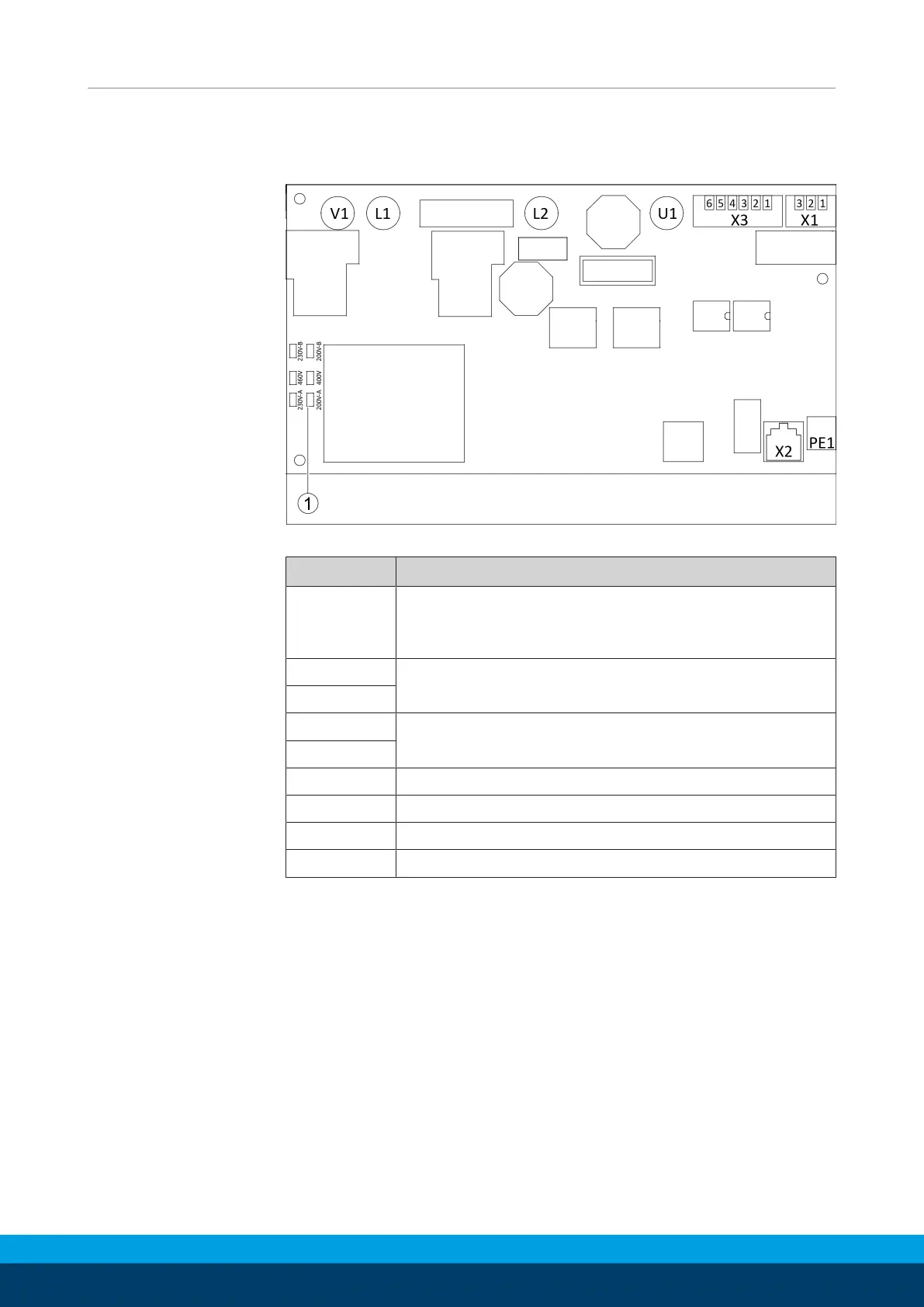

4.1 ECG-C design
ECG-C interfaces
Interface Description
(1) Operating voltage
IMPORTANT!The operating voltage is preset and
may only be changed by SCHUNK.
L1 Power area – supply voltage
L2
U1 Power area – magnetic system
V1
PE1 Ground connection
X1 Signal outputs status display (terminals 1–3)
X2 Manual operating unit (optional)
X3 Signal inputs actuation EGM (terminals 1–6)
