SCHUNK ECG Series - ECG-R Design

Design and description
01.00 | ECG | Assembly and Operating Manual | en | 389769
15

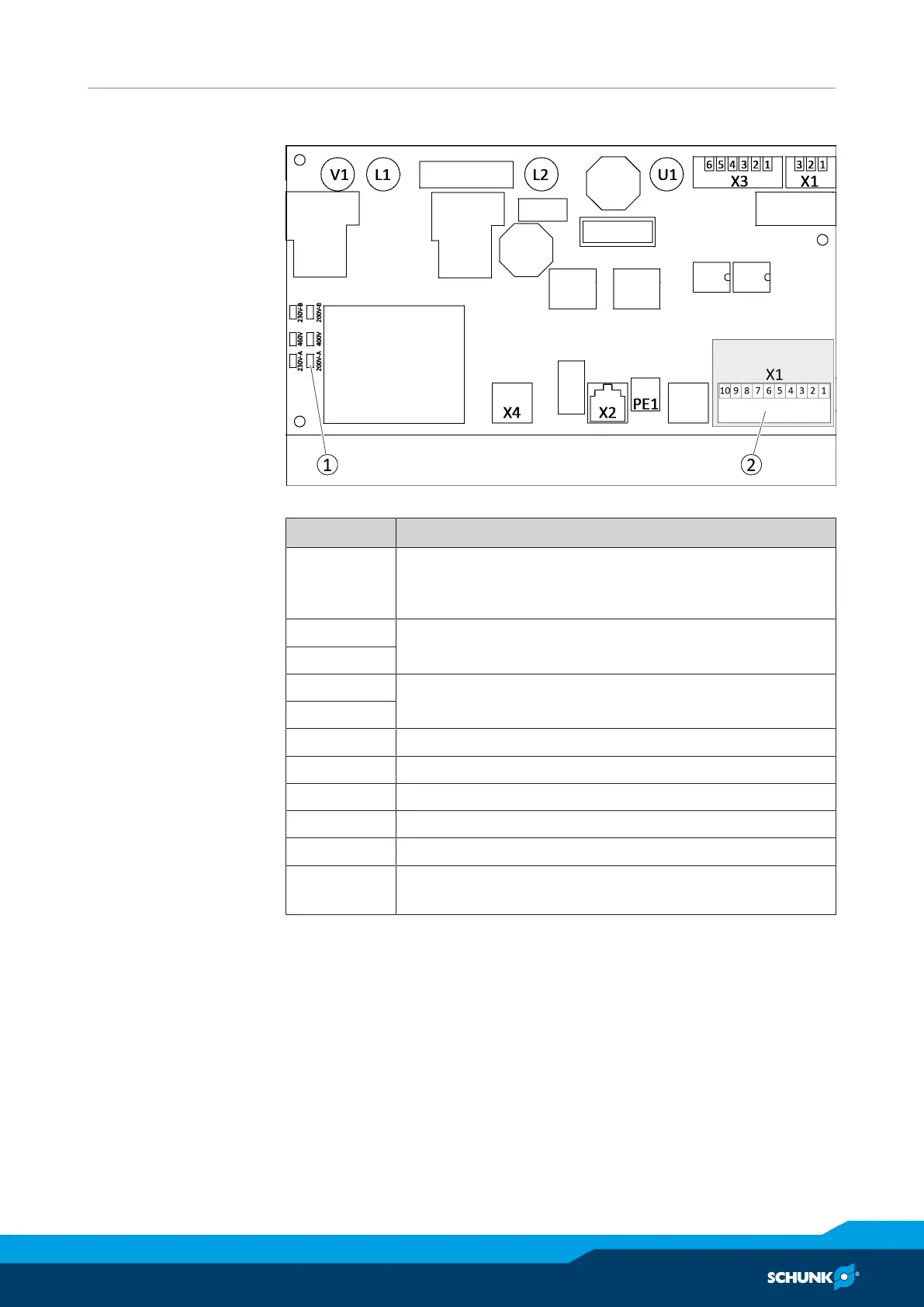

4.2 ECG-R design
Interfaces ECG-R with additional terminal X1 (item 2)
Interface Description
(1) Operating voltage
IMPORTANT!The operating voltage is preset and
may only be changed by SCHUNK.
L1 Power area – supply voltage
L2
U1 Power area – magnetic system
V1
PE1 Ground connection
X1 Signal outputs status display (terminals 1–3)
X2 Manual operating unit (optional)
X3 Signal inputs actuation EGM (terminals 1–6)
X1 (2) Preselection holding force level (terminals 1–10)
X4 Internal use
IMPORTANT!For SCHUNK service employees only.
