SCHUNK ECG Series - Adjusting the Holding Force; Chronological Sequence of the Control and Status Signals

Commissioning
32
01.00 | ECG | Assembly and Operating Manual | en | 389769
WARNING
Risk of injury due to loss of workpiece!
A holding force that is too low can lead to the loss of a workpiece
and serious injury during handling.
• Test workpiece suitability for each type of workpiece
separately.
• Increase the holding force if necessary.
• Observe the maximum permissible load capacity, Technical
data [
}
12].
• Avoid overheating the product. If necessary, reduce the
number of activations per minute.
6.1 Adjusting the holding force
(Only ECG-R.)
The holding force required on the magnetic gripper is preselected
before every magnetization. To do this, the force signals IN1–IN8
are activated (value=1) or deactivated (value=0) on the "Holding
force" terminal (X1, supplementary printed circuit board).

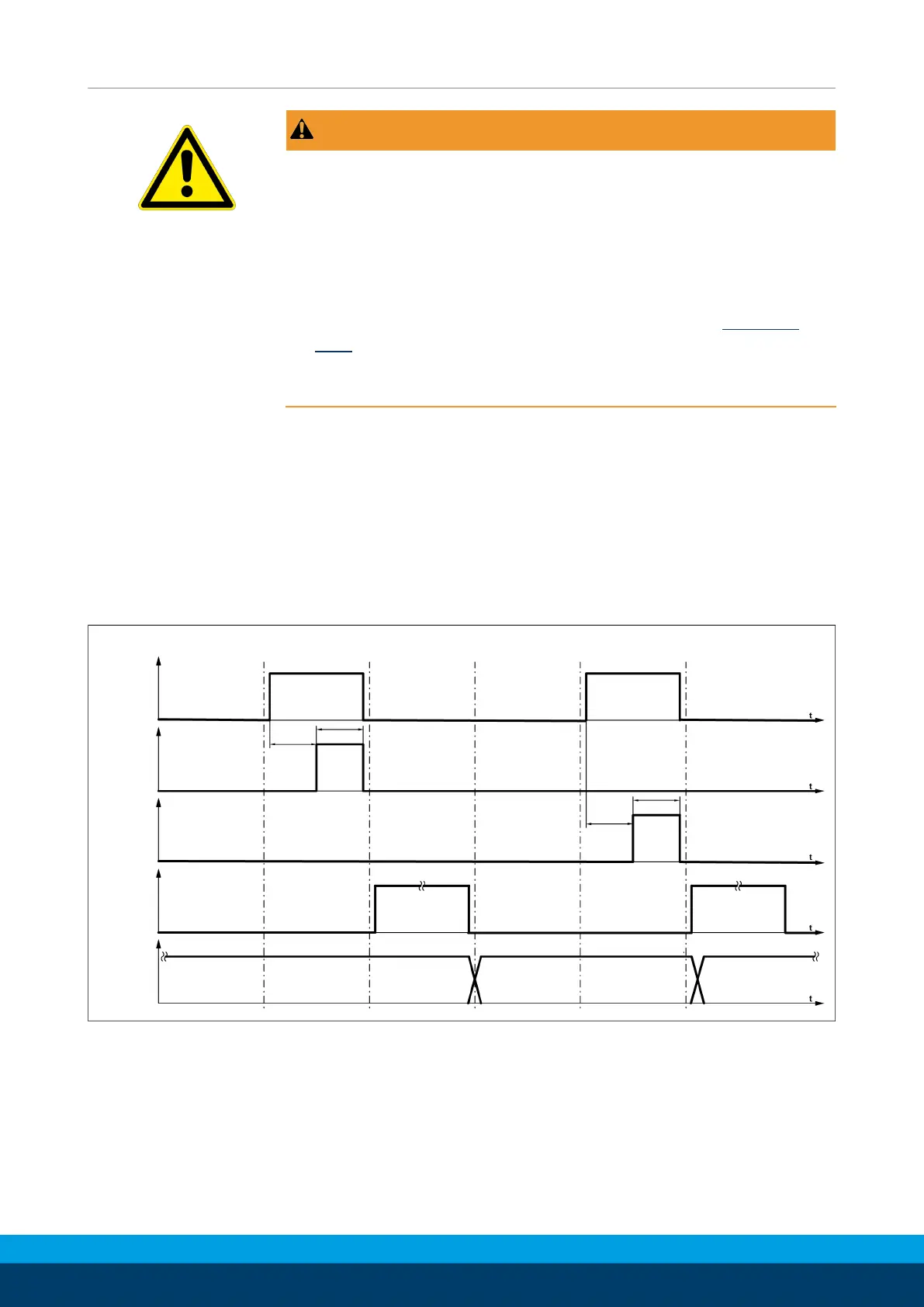

6.2 Chronological sequence of the control and status signals
Demagnetized
system
Magnetization
commands
Magnetization
sequence
Magnetized system Demagnetization
commands
Demagnetization
sequence
100 ms
100 ms
100 ms
100 ms
see magnetic gripper data
sheet
see magnetic gripper data
sheet
ENABLE
MAG
DEMAG
CYCLE
MACHINE
STATUS
DISPLAY
close between pin 7 and 8
open between pin 6 and 8
open between pin 7 and 8
close between pin 6 and 8
Sequence of the control and status signals
