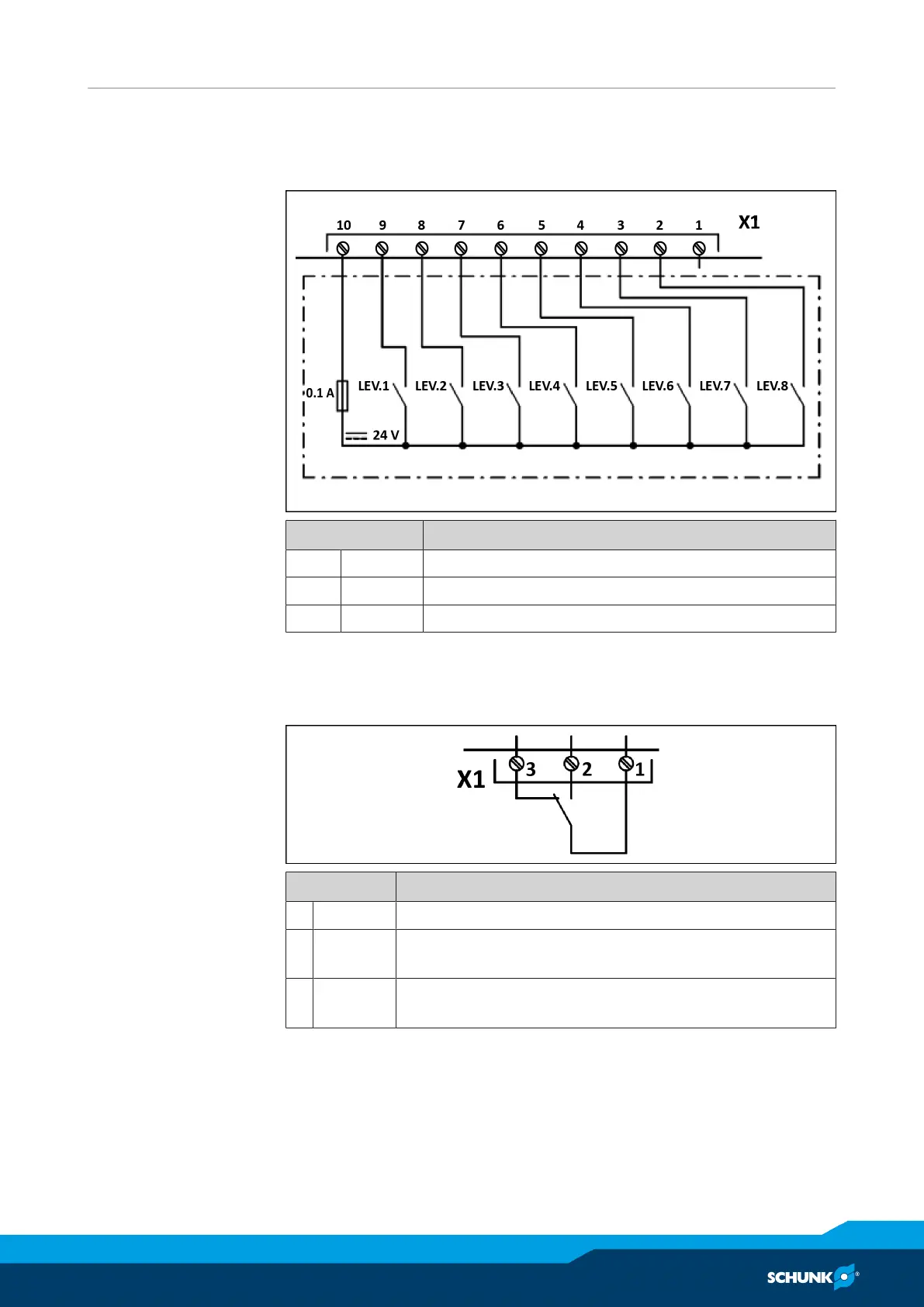

5.2.3.4 Terminal holding force (X1, supplementary printed circuit board)
The holding force level is preselected via the "holding force" (X1)
terminal.
Pin Description
1 0V GND
2–9 IN1–IN8 Preselection holding force level 1–8
10 +24VDC Connection 24VDC
5.2.3.5 Magnet status terminal (X1)
The status outputs of the magnet system are connected to the
"Display magnet status" terminal (X1).
Terminal Description
1 COM Communication contact, shared connection
2 NO Normally open contact in the event of demagnetized
system
3 NC Normally closed contact in the event of
demagnetized system
