Assembly and settings
01.00 | ECG | Assembly and Operating Manual | en | 389769
25

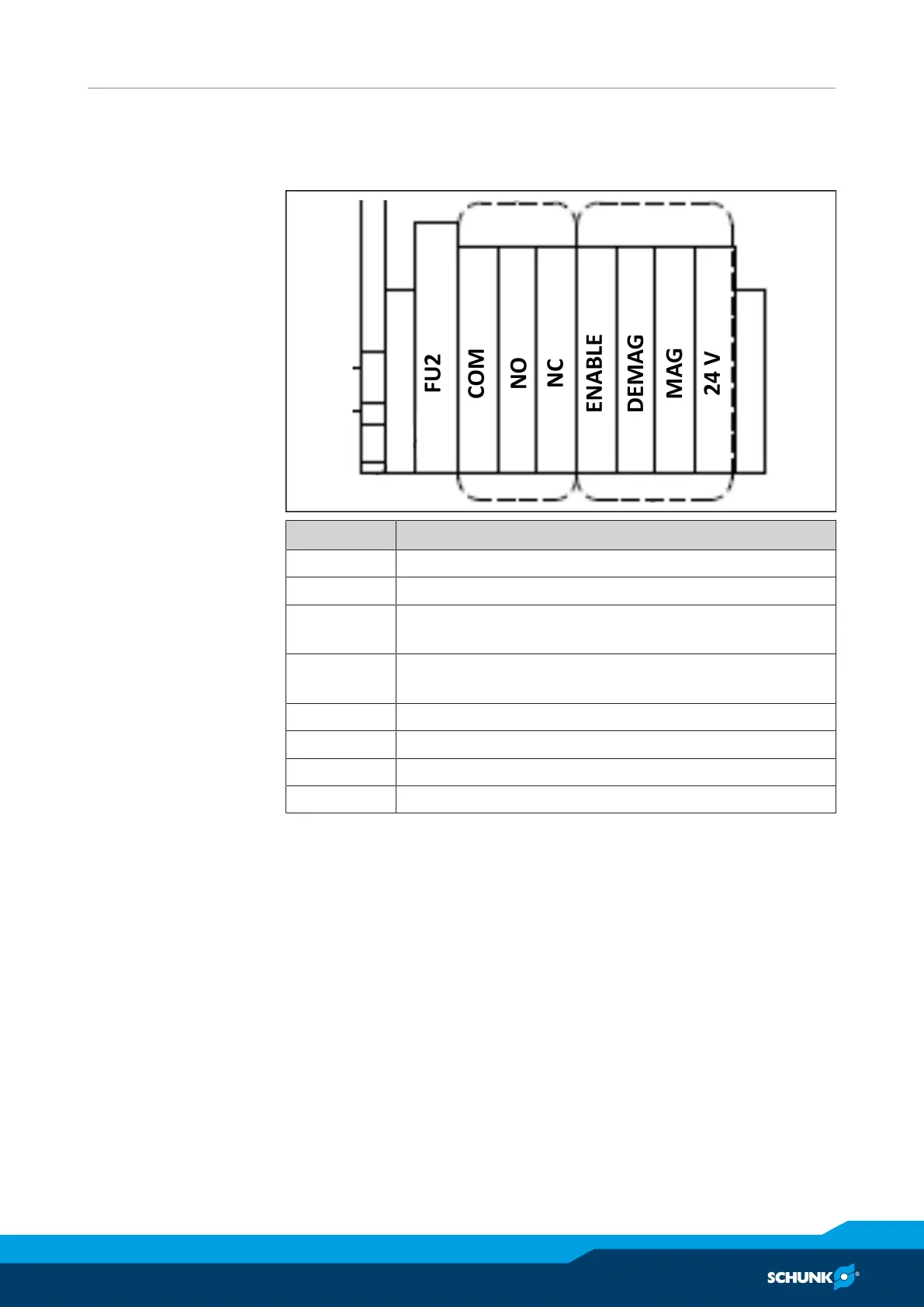

5.2.4.3 External terminals actuation area
The actuation signals are connected to the external terminals on
the right side of the product.
Terminal Description
FU2 Current circuit fuse protection
COM Communication contact, shared connection
NO Normally open contact in the event of demagnetized
system
NC Normally closed contact in the event of
demagnetized system
ENABLE Enable contact magnetic gripper actuation
DEMAG Demagnetizing contact (impulse input min.100ms)
MAG Magnetizing contact (impulse input min.100ms)
24V Connection 24VDC
