Assembly
13.00 | MPG-plus | Assembly and operating manual | en | 389216
27

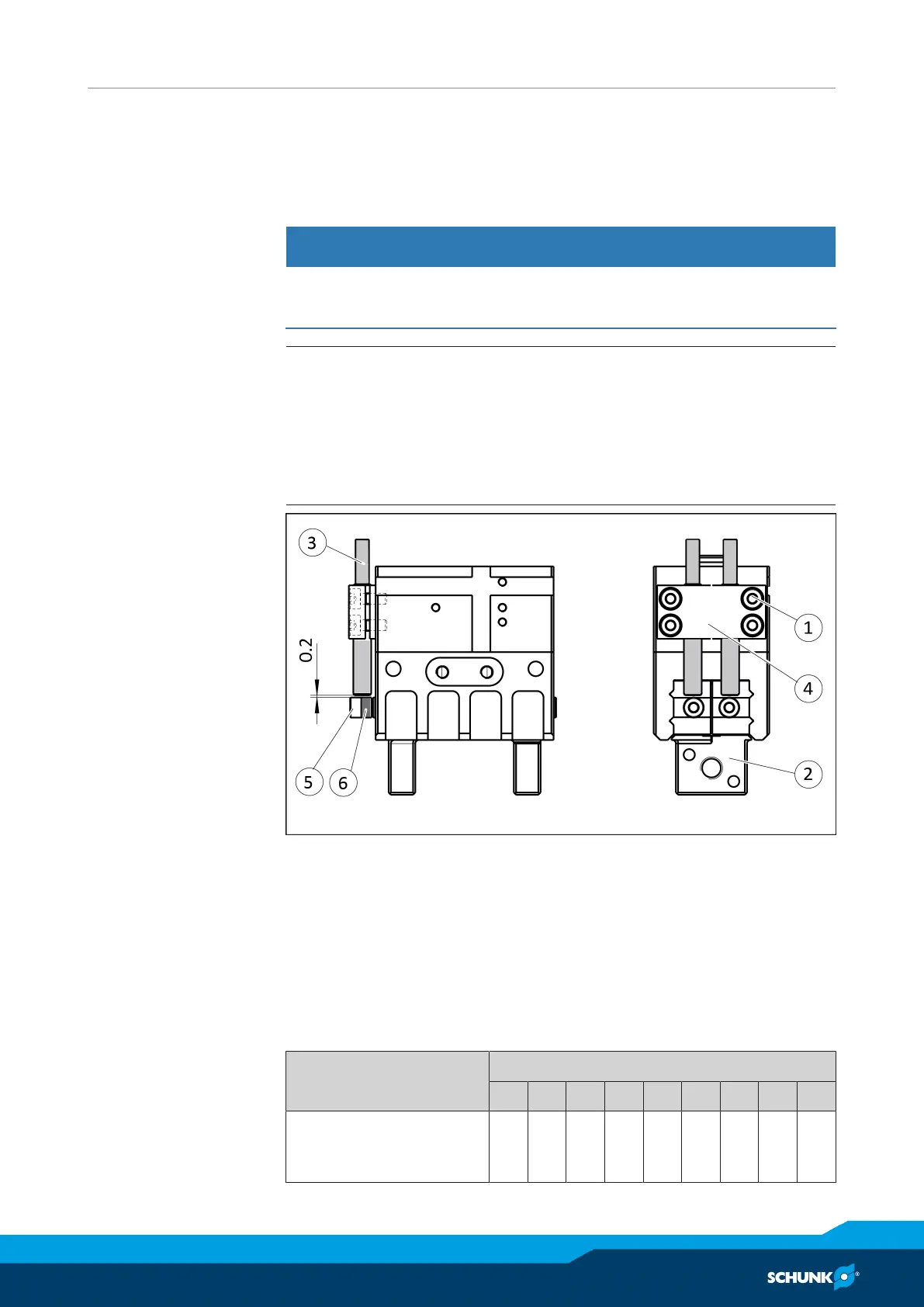

5.3.4 Mounting inductive proximity switchesIN30, IN40
Mounting kit
To use the inductive sensor, the gripper has to be retrofitted with
a special mounting kit. This mounting kit is available from SCHUNK
for the models below.
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE
The sensorsare dampened by the screw heads.
• For sizes MPG-plus 25– 64, a spacer sleeve is also used to
monitor the "Part gripped" position.
• For sizes MPG-plus 10–20, it is not possible to monitor the
"Part gripped" position.
Ø For monitoring "opened" or "closed": secure screw (5) in the
base jaw (2).
For tightening torque, see following table.
Mount spacer sleeve (6) on the housing on the side of the main
air connections.
Ø For monitoring "Part gripped": secure spacer sleeve (6) and
screw (5) to the base jaw (2).
For tightening torque, see following table.
Ø Secure (4) holder. Tighten screws (1) only slightly.
Designation
MPG-plus
10 12 16 20 25 32 40 50 64
Maximum tightening
torque for the screw
pos.5[Ncm]
3.7 11 16 34 34 68 68 68 120
