Maintenance
48
13.00 | MPG-plus | Assembly and operating manual | en | 389216
7.5.4 Size 64
"O.D. gripping" version
(AS)
"I.D. gripping" version
(AS)
Version without
maintenance of
gripping force

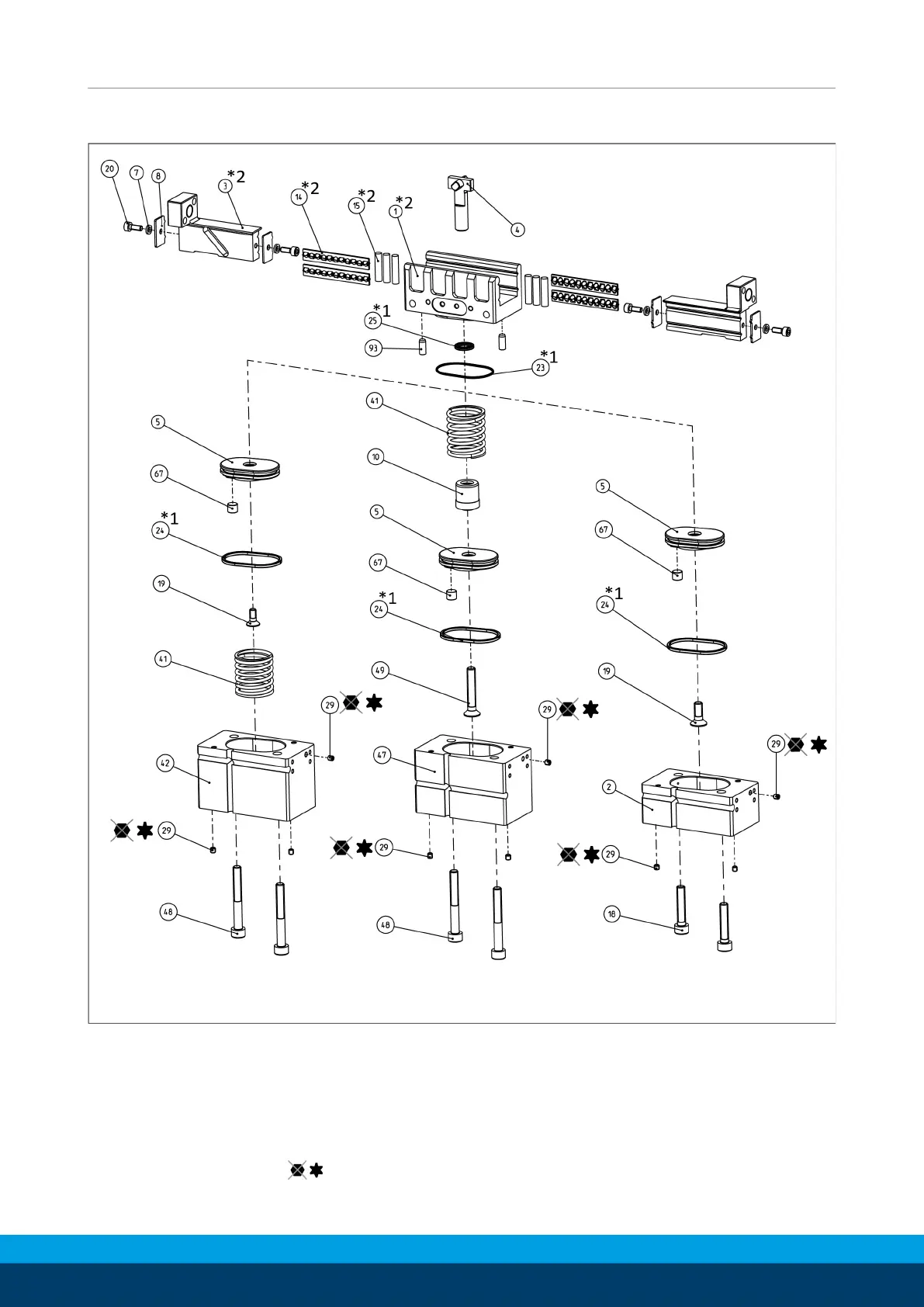

Assembly of size 64
*1 Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered completely.
*2 Positions are adapted to each other and can not be
replaced by the customer.
Torx section
