Assembly
13.00 | MPG-plus | Assembly and operating manual | en | 389216
35

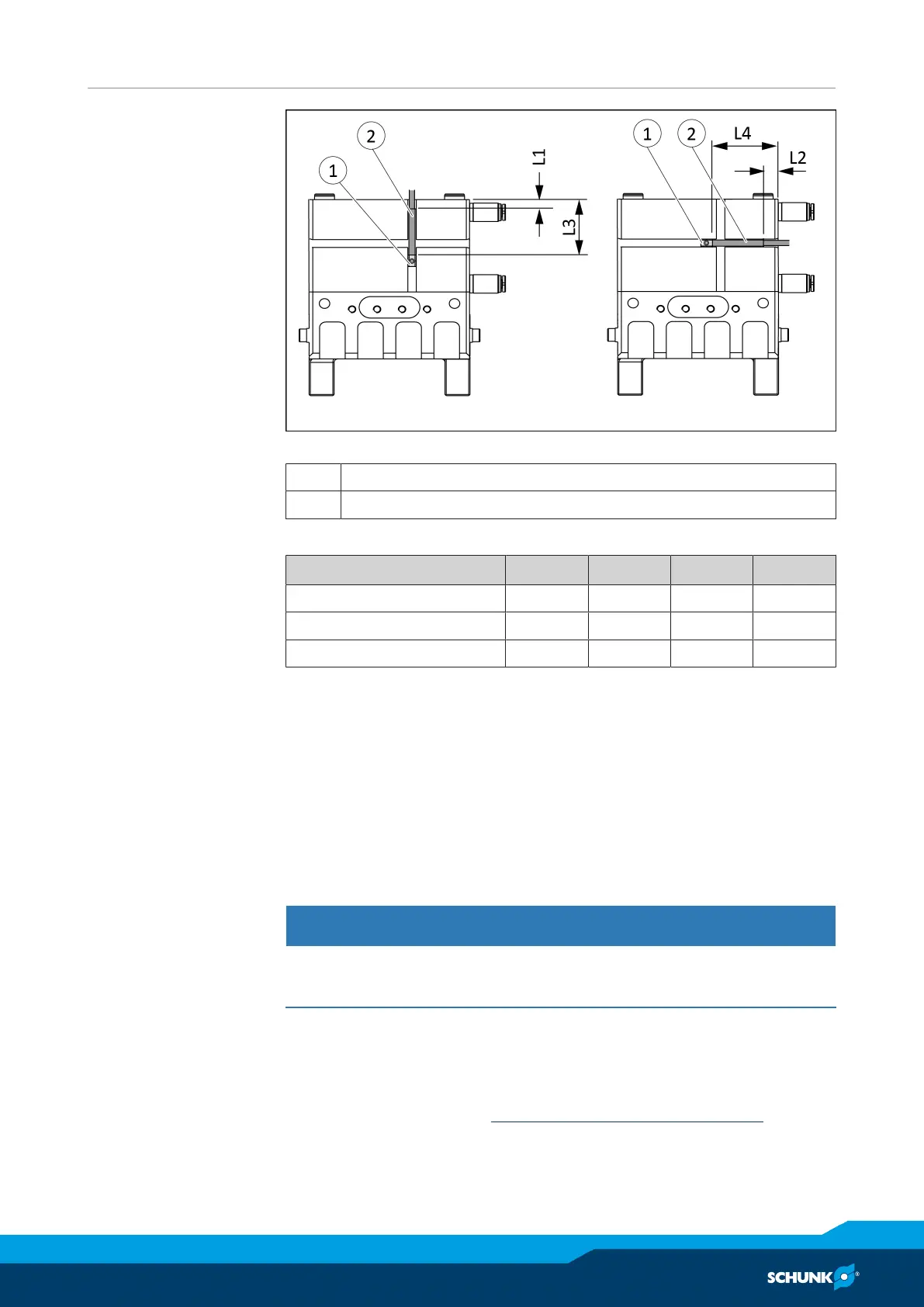

Adjustment dimensions of slot nuts and the sensor
L1, L2 Protrusion of the sensor
L3, L4 Distance of housing to front side of the sensor
Adjustment dimensions
Size L1 [mm] L2 [mm] L3 [mm] L4[mm]
MPG-plus 64 -5 7 -25 -15
MPG-plus 64 IS -20 6 -24 -16
MPG-plus 64 AS -4 7 -40 -15
5.3.8 Mounting the flexible position sensor FPS
The flexible position sensor FPS consists of a control unit output
and one of the following sensors:
• MMS 22-A-5V
• FPS-S 13
In order to operate the sensor, special housing variants of the
gripper are required for the sizes MPG-plus 20–32. For the sizes
MPG-plus 40–64, there is a bracket required.
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
5.3.8.1 Mounting the MMS 22-A-5V
Note: In order to mount the sensor MMS 22-A-5V, no additional
attachment kit is required.
Ø Assembling the sensor, Analog magnetic sensor MMS 22‑A [
}
31] .
Ø Connect the control unit output and adjust the sensor (see
assembly and operating manual of the sensor).
