Assembly
22
13.00 | MPG-plus | Assembly and operating manual | en | 389216
5.2.2 Pneumatic connection
NOTE
Only use carbide bits to remove the bottom grub screws.

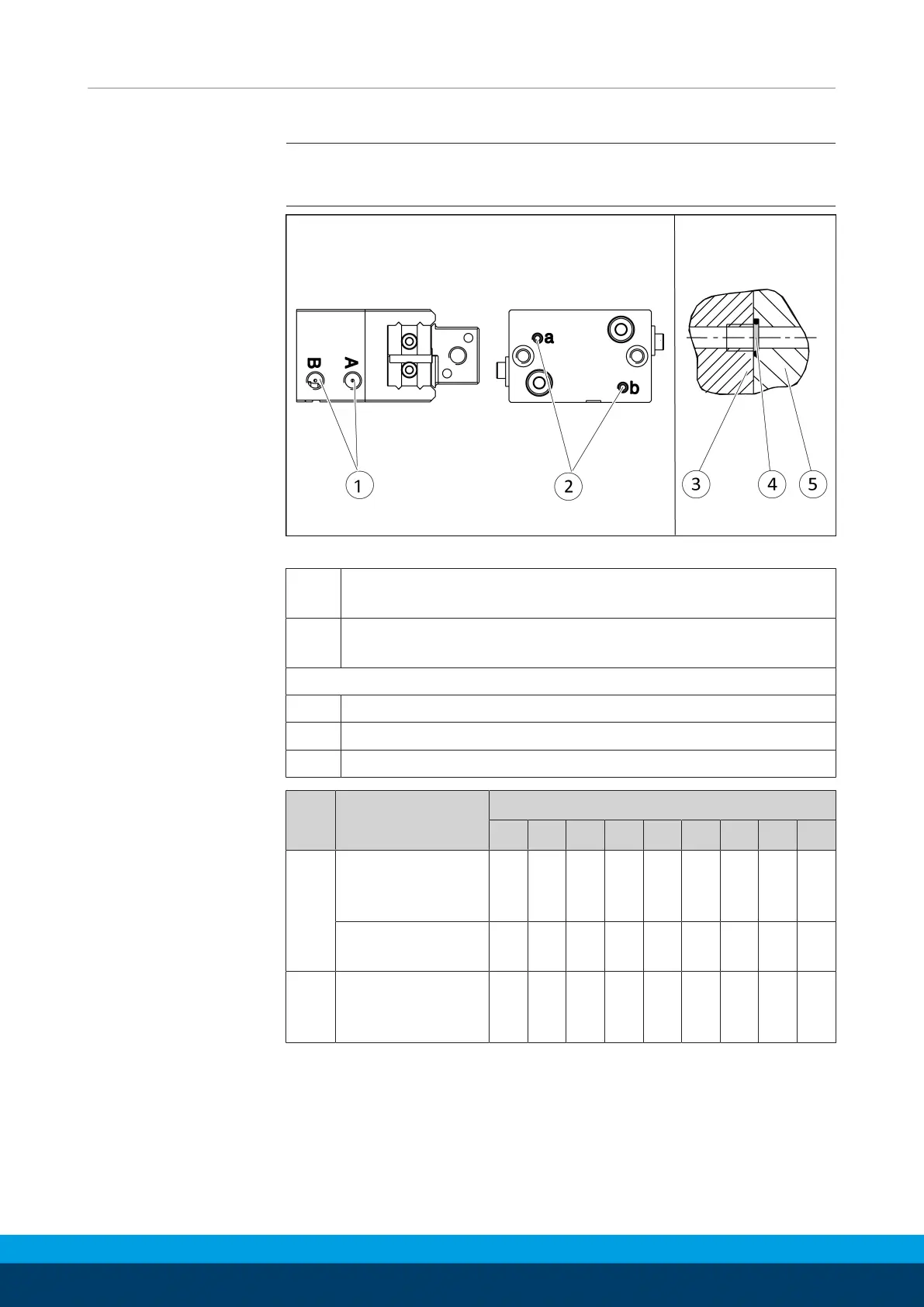

Compressed air connections
1 Main connections (Hose connection)
(A = open, B = close)
2 Hose-free direct connection at the base
(a = open, b = close)
Hose-free direct connection
3 Product
4 O-ring
5 Attachment
Item Mounting
MPG-plus
10 12 16 20 25 32 40 50 64
1 Thread in the
main air
connections
* * * M3 M3 M5 M5 M5 M5
Max. depth of
engagement [mm]
- - - 3 3 4.5 5 5 5
2 Thread in Hose-
free direct
connection
- - M
2.5
M
2.5
M3 M3 M3 M3 M3
* For this size, the hose clips are pre-assembled at the factory and
the compressed air hoses prescribed by SCHUNK must be used,
see catalog data sheet. Procedure for leaking compressed air
connection, see section "Troubleshooting".
