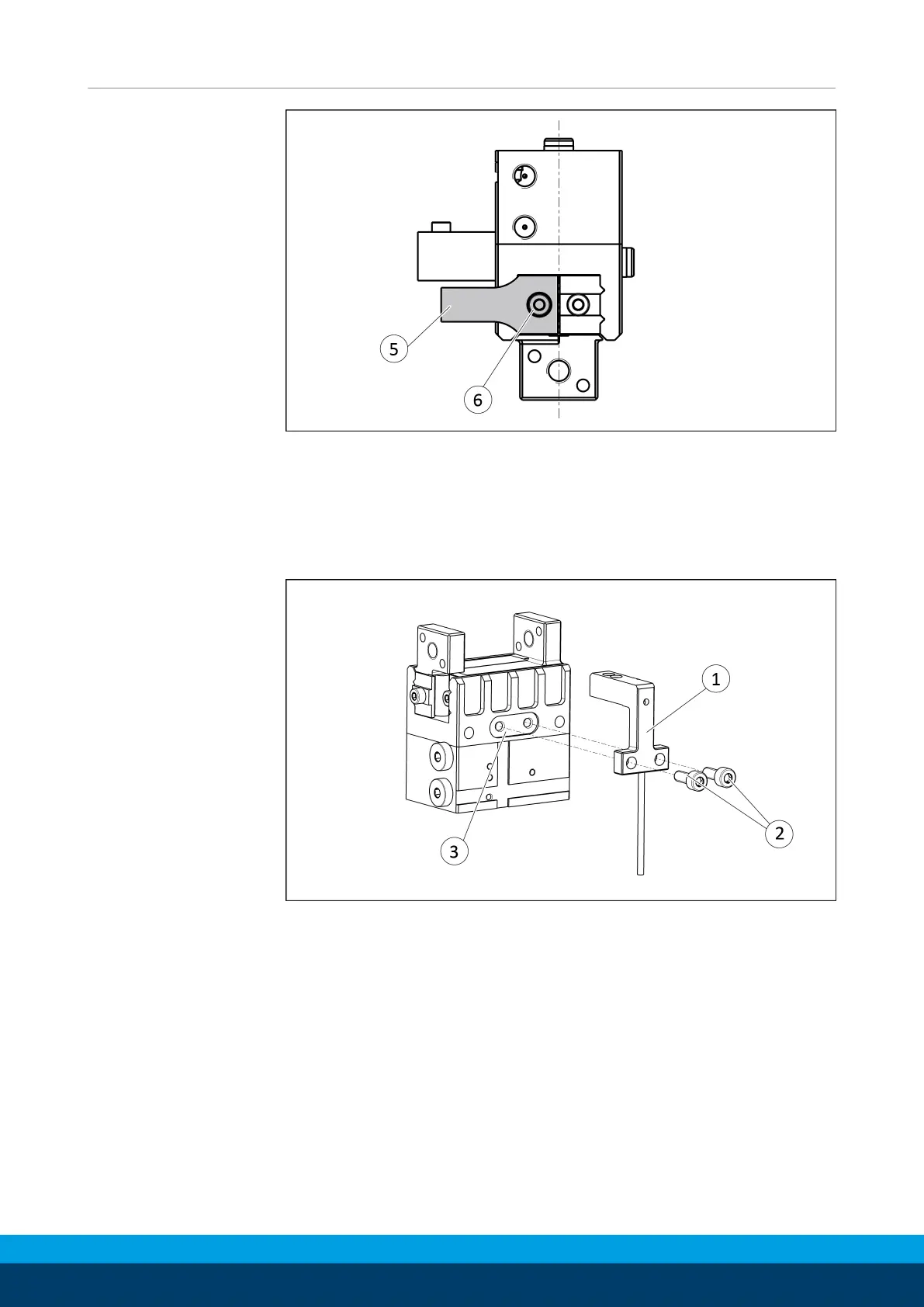

Ø Secure control cam (5) with screw (6) on the base jaw. Ensure
that the magnets are facing the sensor surface.
Ø Connect the torque sensor system controller and adjust the
sensor, see the Assembly and Operating Manual for the sensor.
5.3.9 Mounting the object-distance sensor OAS
Ø Fix sensor(1) with screws(2) at the housing(3).
Notice: The screws(2) are not included in the scope of delivery.
Ø Connect control unit output and adjust sensor, see sensor
mounting and operating manual.
