Assembly
13.00 | MPG-plus | Assembly and operating manual | en | 389216
37

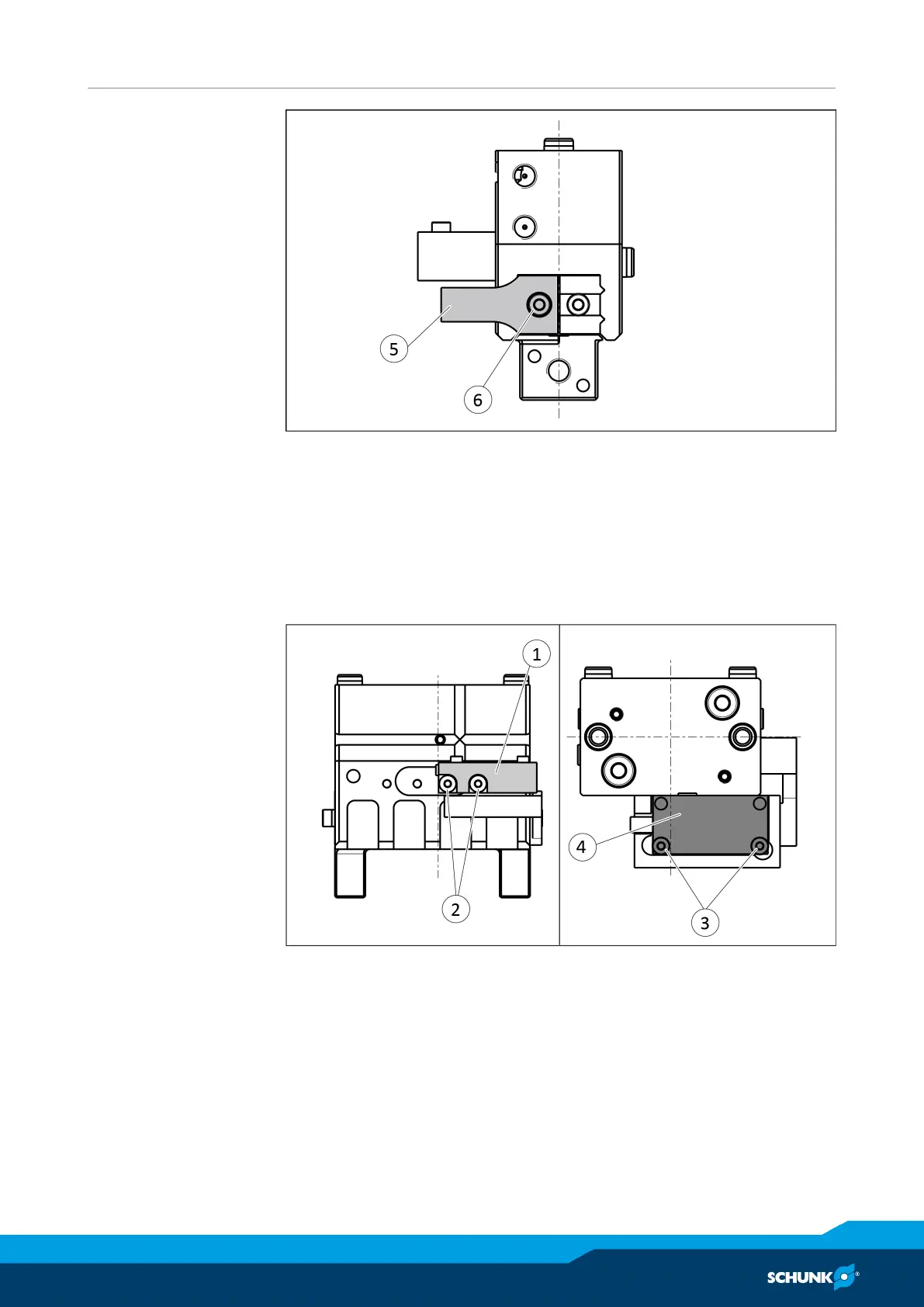

Ø Secure control cam (5) with screw (6) on the base jaw. Ensure
that the magnets are facing the sensor surface.
Ø Connect the torque sensor system controller and adjust the
sensor, see the Assembly and Operating Manual for the sensor.
Size MPG-plus 64
For this size, a holder must be mounted. This holder is available
from SCHUNK.
Ø Secure holder (1) with screws (2).
Ø Secure sensor(4) with screws (3).
Tightening torque: 10Ncm
