Assembly
34
13.00 | MPG-plus | Assembly and operating manual | en | 389216

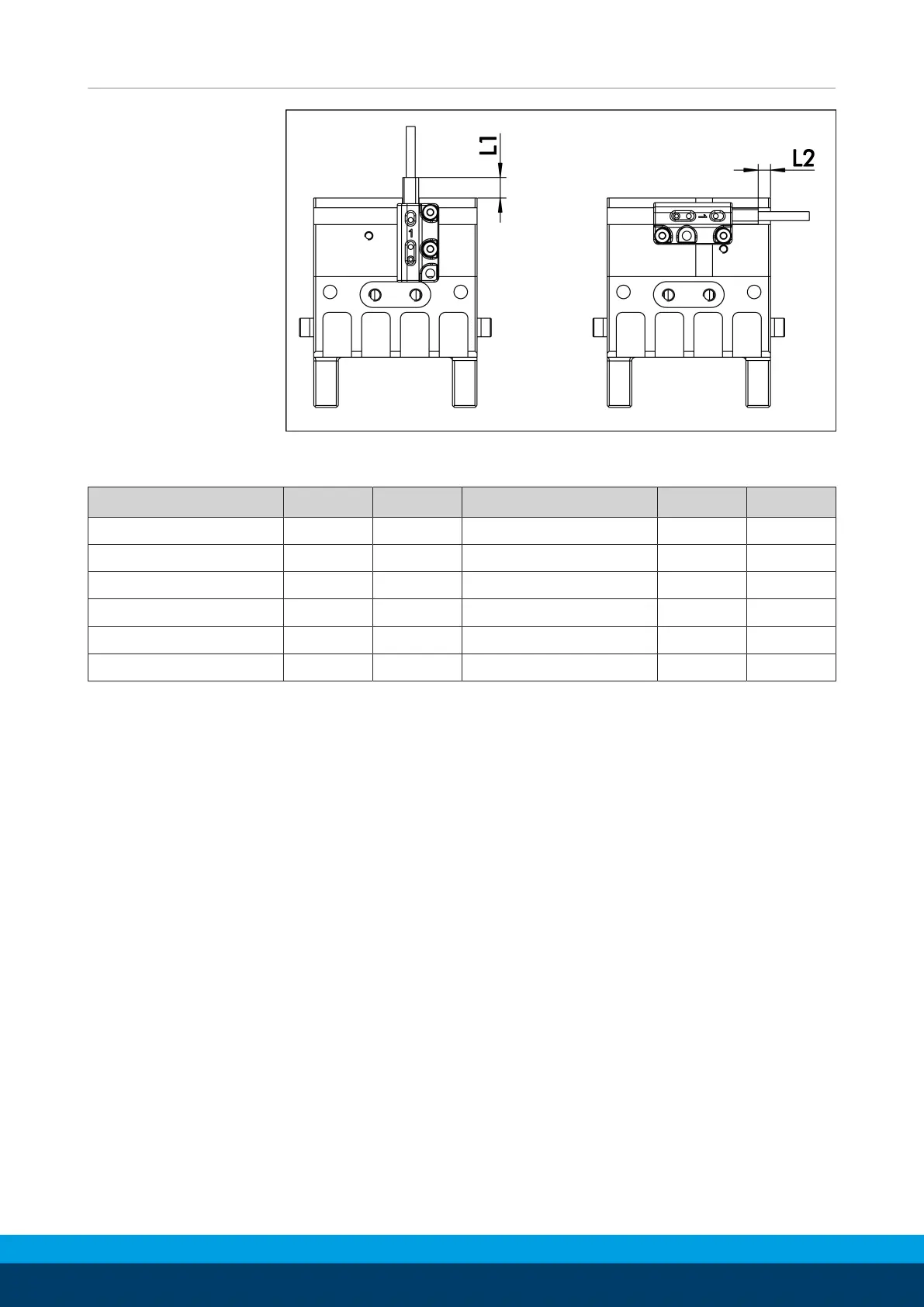

Protrusion of the sensor to be mounted
Adjustment dimensions
Size L1 [mm] L2[mm] Size L1 [mm] L2 [mm]
MPG-plus 25 6.8 3.0 MPG-plus 40 3.0 5.0
MPG-plus 25 AS -6.0 3.0 MPG-plus 40-AS -19.0 5.0
MPG-plus 25 IS 6.5 3.0 MPG-plus 40-IS 1.5 5.0
MPG-plus 32 4.0 7.0 MPG-plus 50 2.3 13
MPG-plus 32 AS 1.5 7.0 MPG-plus 50-AS -16.5 13
MPG-plus 32 IS 0 7.0 MPG-plus 50-IS 2 13
5.3.7.2 Size MPG-plus 64
For this size, there is no bracket necessary. Depending on the
desired installation position, the sensor is fastened in the vertical
or horizontal slot of the gripper.
Ø If there is a slot nut (1), move the slot nut to dimension L3 or L4
(see table "adjustment dimensions"). Move the sensor (2) into
the slot up to the stop.
OR: If there is no slot nut (1), move the sensor (2) into the slot
and adjust it to distance L3 or L4 (see table "adjustment
dimensions").
Ø Fasten the senor using a threaded pin.
Tightening torque: 10 Ncm
Ø Adjust the sensor, see assembly and operating manual of the
sensor.
