Assembly
09.00 | MPG | Assembly and Operating Manual | en | 389213
27
Up to construction year 12/2015:

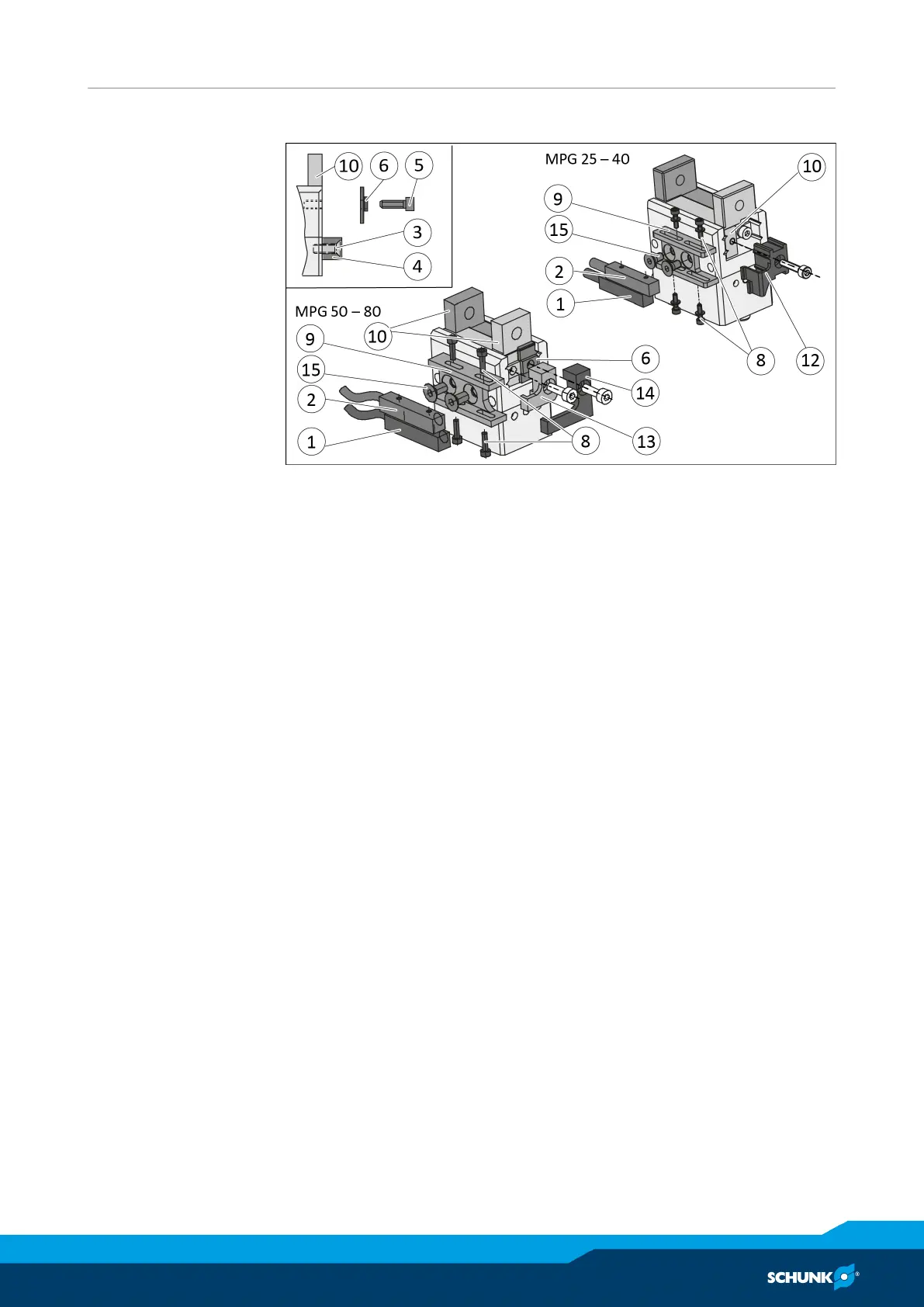

Ø Loosen screw(3) and remove bracket(4).
Ø Secure bracket (9) with screws(15).
Ø MPG 25–40:
✓ Remove screws(5) and cover(6) on the base jaw (10) next to
the bracket(9).
✓ Secure cam switch (12) to the base jaw(10).
Ø MPG 50–80:
✓ Remove screws(5) and cover(6) on both base jaws.
✓ Secure cam switches (13, 14) with the covers (6) to the base
jaws.
Ø Insert sensors (1, 2) in the bracket(9). Ensure that the buttons
are facing in the direction of the cam switch.
Ø Secure sensors (1, 2) with screws(8). Tighten screws only
slightly.
Ø Adjust sensors, see following section.
