Assembly
28
09.00 | MPG | Assembly and Operating Manual | en | 389213

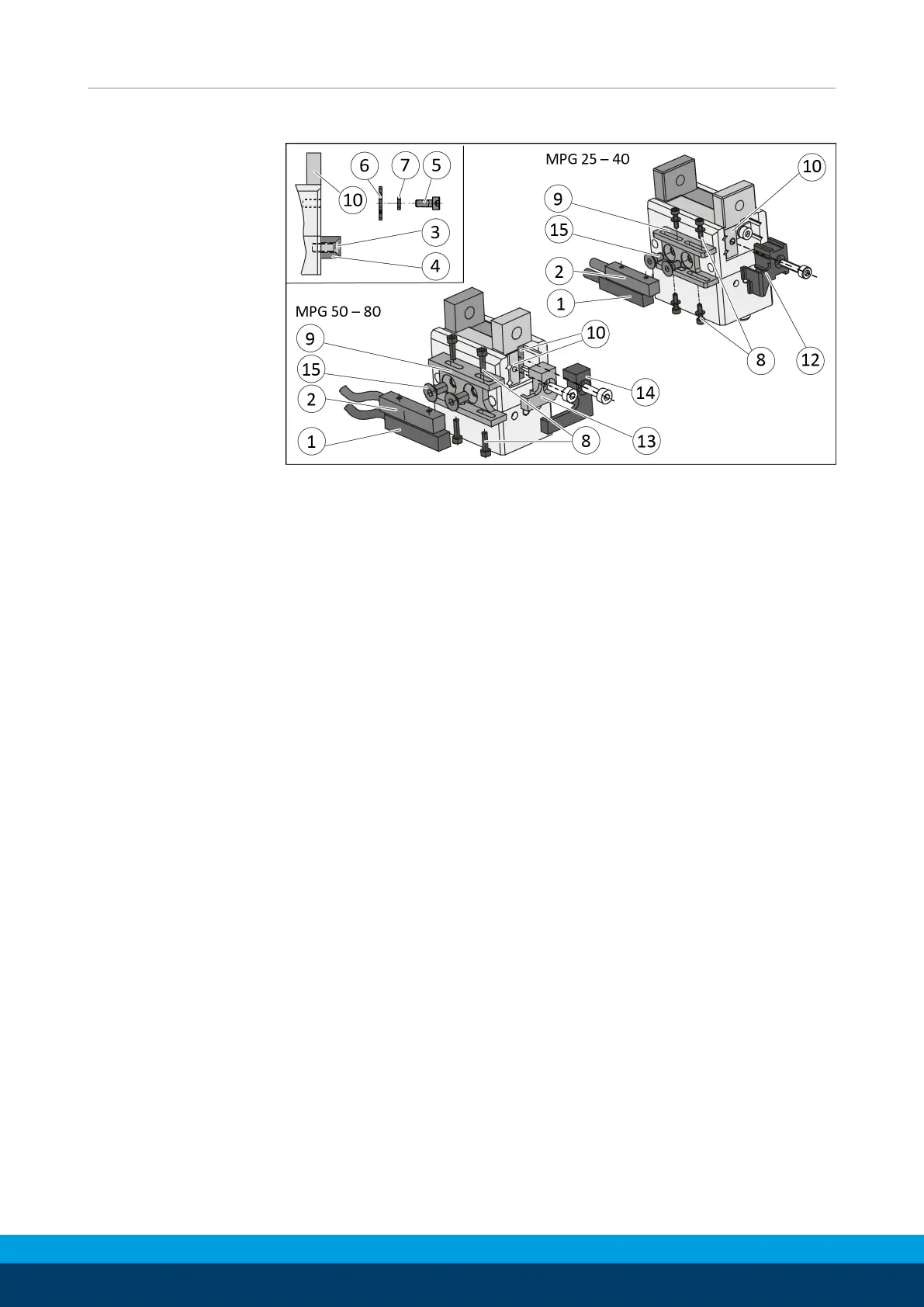

From construction year 01/2016:
Ø Loosen screw(3) and remove bracket(4).
Ø Secure bracket (9) with screws(15).
Ø MPG 25–40:
✓ Remove screws(5), spacer shim(7) and retaining plate(6) on
the base jaw (10) next to the bracket(9).
✓ Secure cam switch (12) to the base jaw(10).
Ø MPG 50–80:
✓ Remove screws(5), spacer shim(7) and retaining plate(6) on
both base jaws (10).
✓ Secure cam switches(13, 14) to the base jaws (10).
Ø Insert sensors (1, 2) in the bracket(9). Ensure that the buttons
are facing in the direction of the cam switch.
Ø Secure sensors (1, 2) with screws(8). Tighten screws only
slightly.
Ø Adjust sensors, see following section.
