Assembly
210.00 | PZN-plus | Assembly and Operating Manual | en | 389374 23
Connections at the
housing

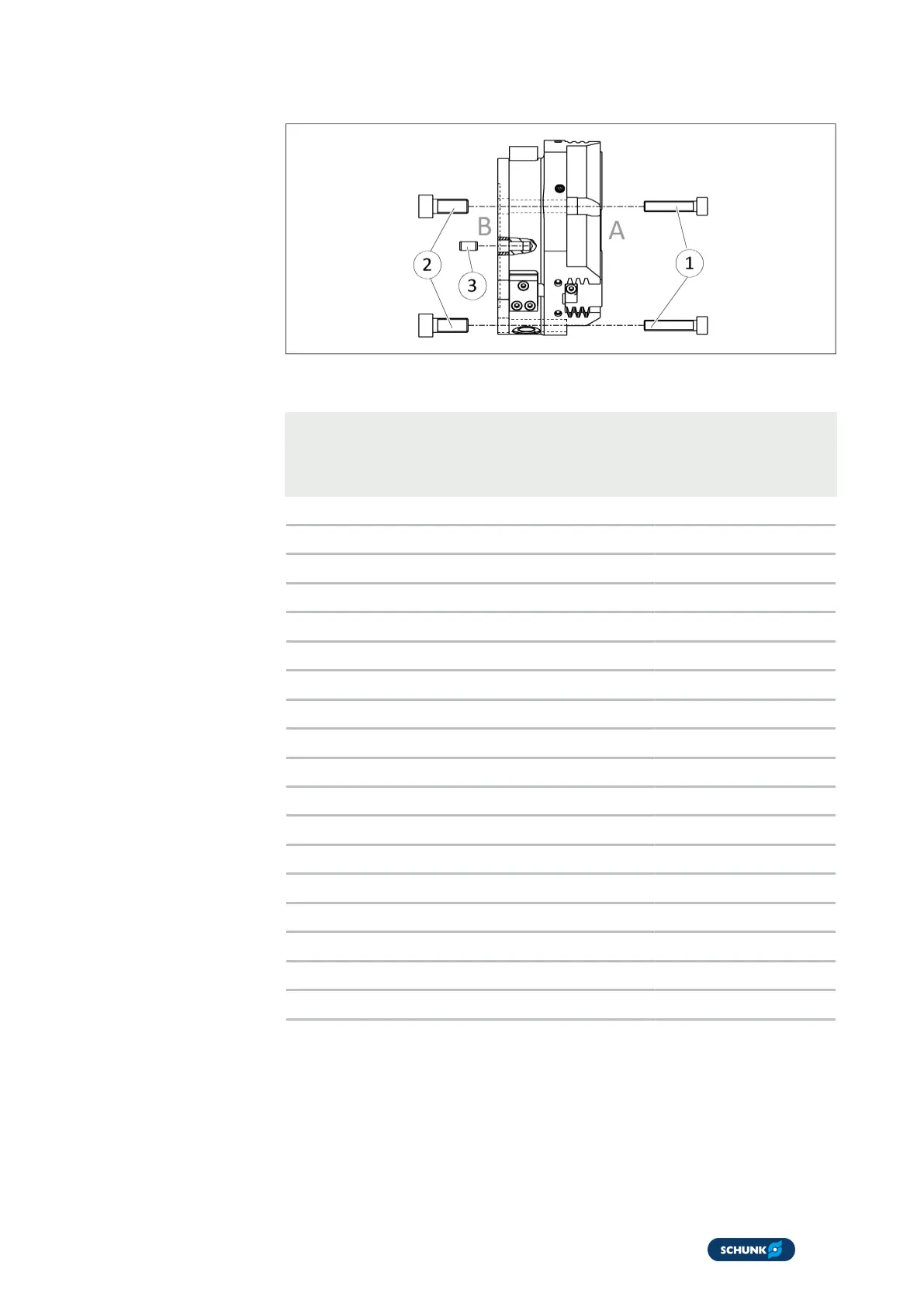

Assembly options
The product can be assembled from two sides.
side A side B
Size
①
Screws
②
Screws *
③
Fitting bore for
centering pin [mm]
40 M3 - Ø2
50 M3 M4 / 10 Ø3
50 (AS / IS) M3 M4 / 20.5 Ø3
64 M5 M6 / 13 Ø4
64 (AS / IS) M5 M6 / 26 Ø4
80 M6 M8 / 17 Ø5
80 (AS / IS) M6 M8 / 32 Ø5
100 M6 M8 / 18 Ø5
100 (AS / IS) M6 M8 / 38 Ø5
125 M8 M10 / 21 Ø6
125 (AS / IS) M8 M10 / 45.5 Ø6
160 M8 M10 / 21.5 Ø6
160 (AS / IS) M8 M10 / 51.5 Ø6
200 M10 M12 / 25 Ø8
200 (AS / IS) M10 M12 / 61 Ø8
240 M12 - Ø8
300 M16 - Ø10
380 M20 - Ø12
* Thread / max. depth of engagement from locating surface [mm]
