Maintenance
210.00 | PZN-plus | Assembly and Operating Manual | en | 389374 63

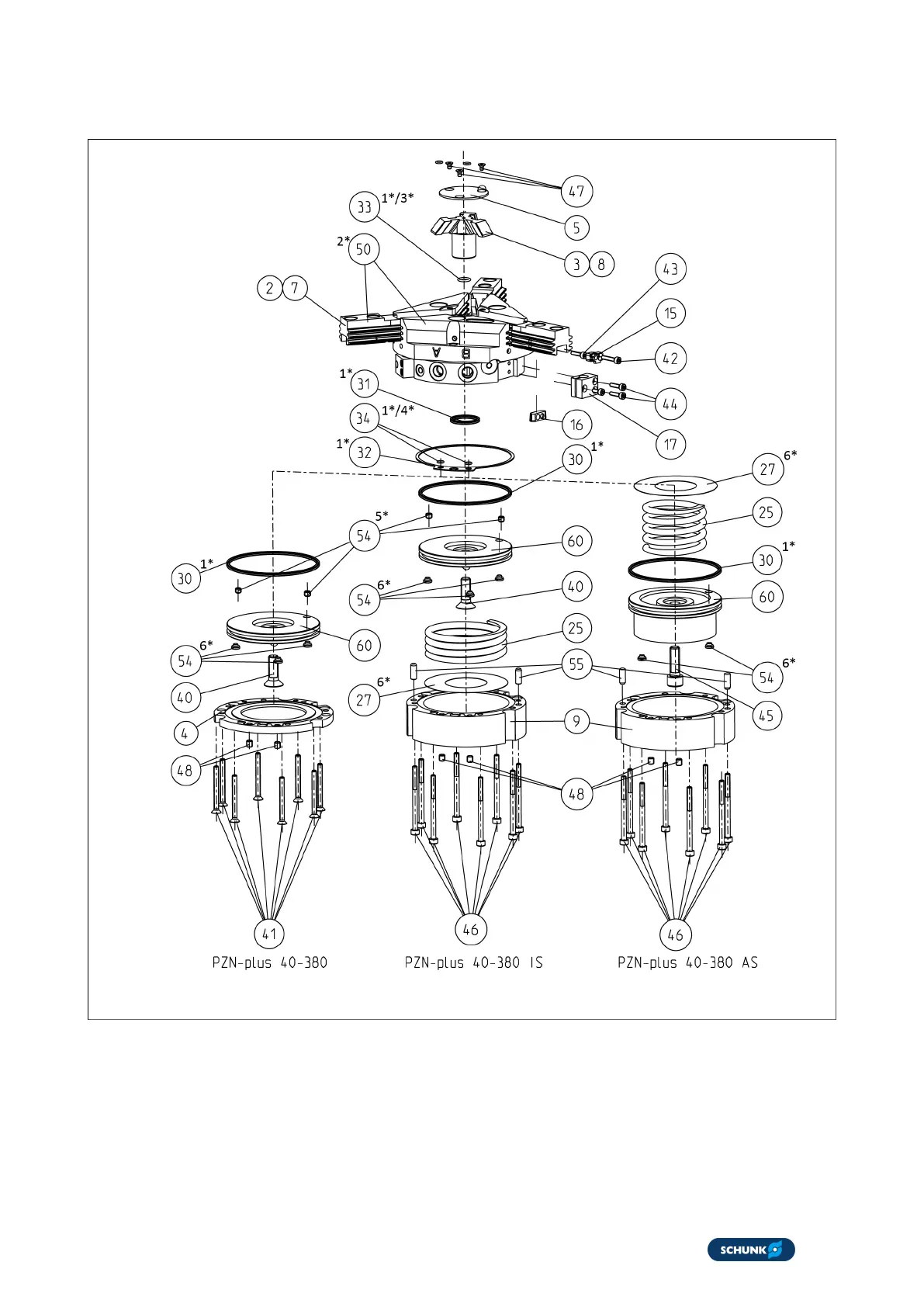

7.5.1 Basic module
Assembly of the variants "O.D. gripping" / "I.D. gripping" / without gripping force maintenance
1* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered completely.
2* Positions are adapted to each other and can not be replaced by the customer.
3* not for PZN-plus 40 - 125 5* size PZN-plus 160 -300
4* from size PZN-plus 125 6* at size PZN-plus 380
