Assembly
210.00 | PZN-plus | Assembly and Operating Manual | en | 389374 37

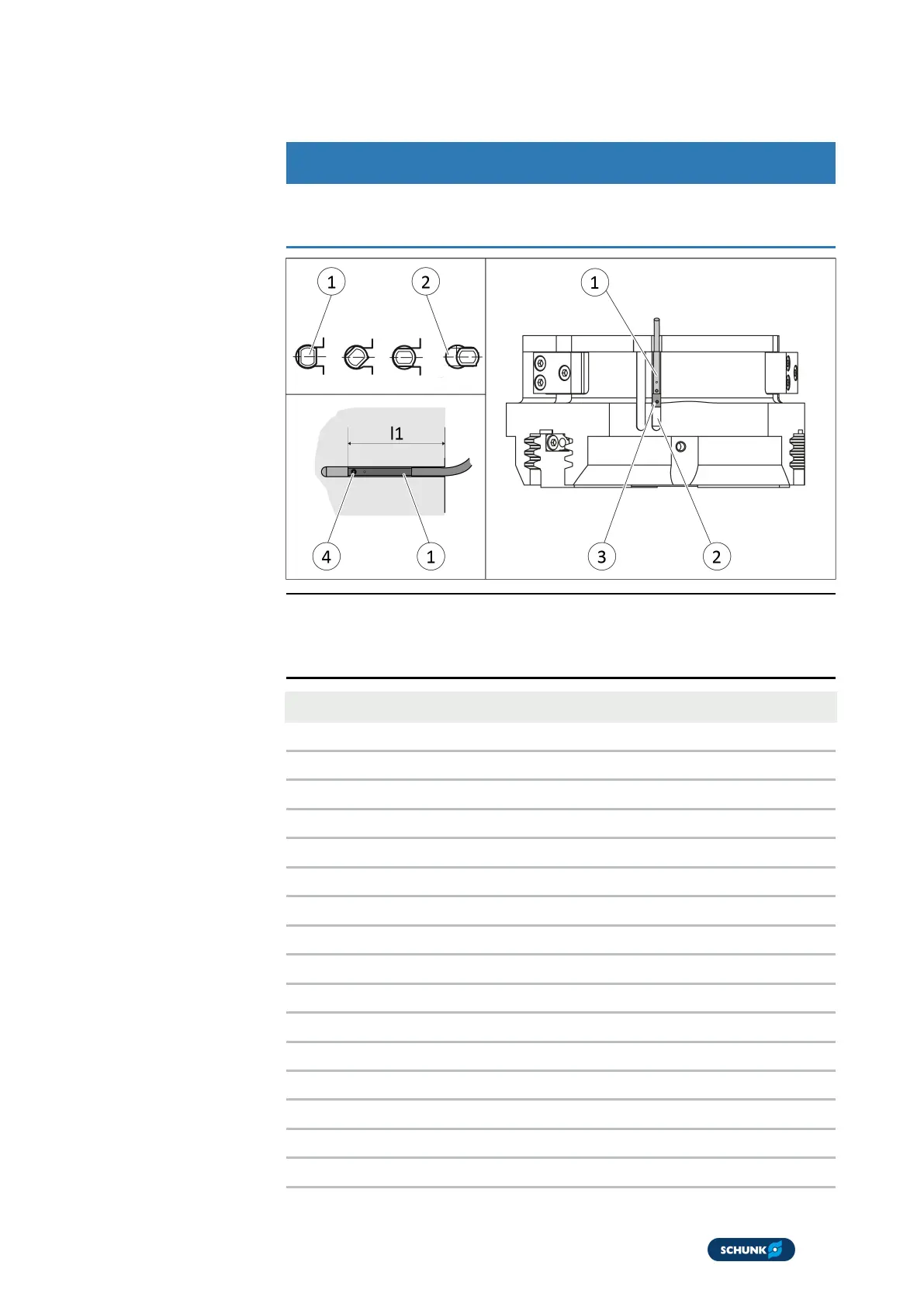

5.3.10 Mounting the magnetic switch MMS 22-IOL
CAUTION
Risk of damage to the sensor during assembly!
l
Observe the maximal tightening torque.
NOTE
If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), see following table.
Size l1* [mm]
64-1 24.5
64-1-AS/64-1-IS 38.0
64-1-KVZ 45.5
64-1-AS-KVZ/64-1-IS-KVZ 59.0
80-1 29.8
80-1-AS/80-1-IS 29.8
80-1-KVZ 54.8
80-1-AS-KVZ/80-1-IS-KVZ 70.8
100-1 29.8
100-1-AS/100-1-IS 49.9
100-1-KVZ 59.8
100-1-AS-KVZ/100-1-IS-KVZ 79.9
125-1 35.0
125-1-AS/125-1-IS 58.5
125-1-KVZ 70.0
125-1-AS-KVZ/125-1-IS-KVZ 93.5
