Assembly
210.00 | PZN-plus | Assembly and Operating Manual | en | 389374 27
5.3.2 Setting dimensions for magnetic switches

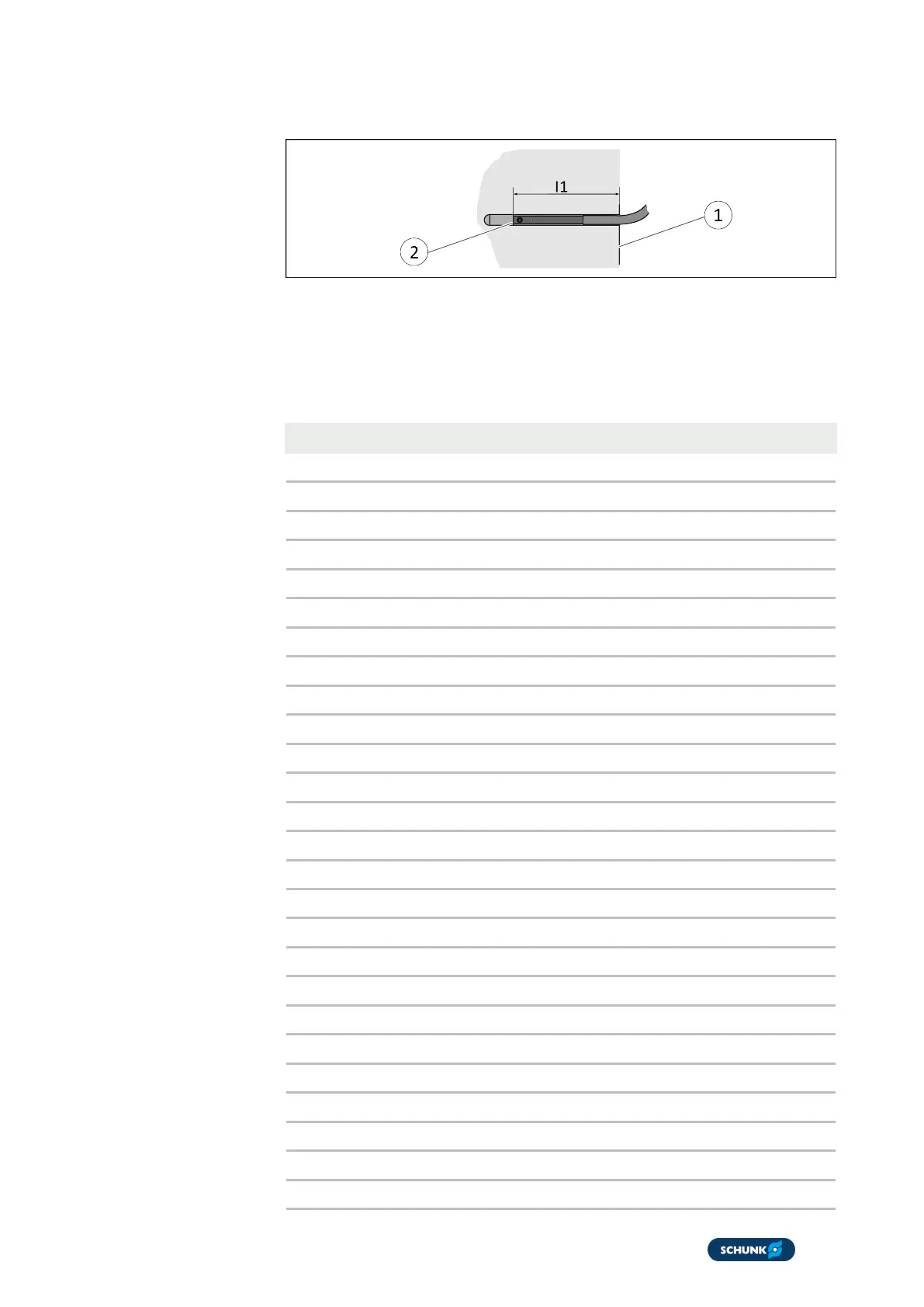

* Setting dimension I1, from product bottom edge (1) to front sensor (2)
The setting dimension applies for the following sensors:
l
Programmable magnetic switch MMS 22-PI1
l
Programmable magnetic switch MMS 22-PI2
l
Programmable magnetic switch MMS-P 22
Size l1* [mm]
40 20.3
40 AS 28.2
40 IS 28.3
40-KVZ 34.8
40 AS-KVZ 42.8
40 IS-KVZ 42.8
50 21.7
50 AS 32.2
50 IS 32.2
50-KVZ 39.7
50 AS-KVZ 50.1
50 IS-KVZ 50.1
64 24.5
64 AS 38.0
64 IS 38.0
64-KVZ 45.5
64 AS-KVZ 59.0
64 IS-KVZ 59.0
80 26.9
80 AS 42.3
80 IS 42.3
80-KVZ 51.9
80 AS-KVZ 66.9
80 IS-KVZ 66.9
100 29.8
100 AS 49.9
