38 02.00|ROTA TP |en

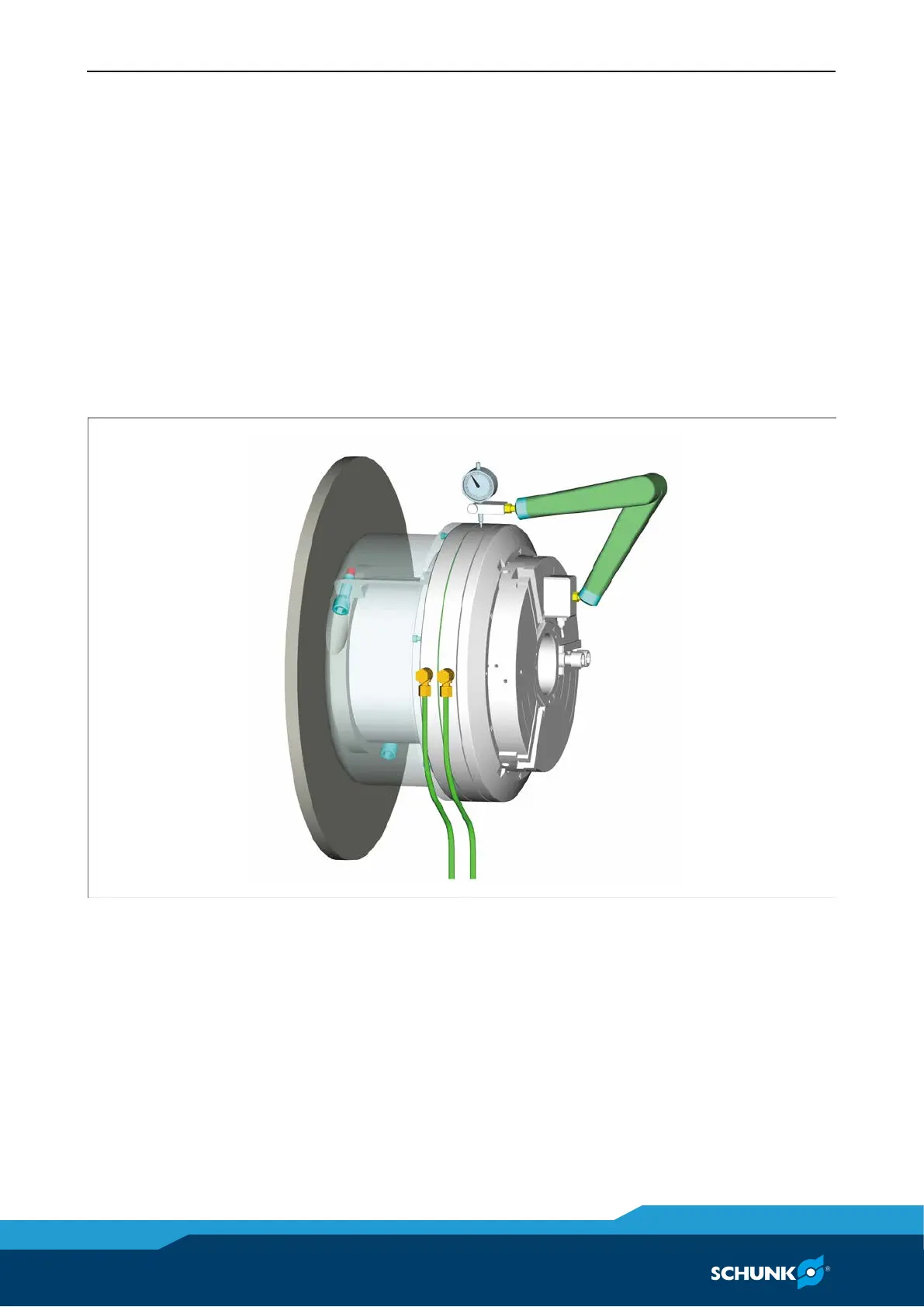

In this case, the distributor ring is a component that is completely
separate from the chuck and is centered and retained on the
headstock of the lathe axially and radially by means of spacing
consoles. The stationary mounting can be accomplished by using
M6 threaded holes on the rear face side of the distributor ring. It
must be ensured that the distributor ring is aligned with the chuck
body without contact. For this mounting type, the distributor ring
must be equipped with a spacer ring instead of the plastic centering
sleeve. This spacer ring is loosely enclosed with each ROTA TP / TP-LH
front-end power chuck. If the distributor ring is to be fastened but is
equipped standard with the centering sleeve, the centering sleeve
must be replaced with the enclosed spacer ring.
