SCHUNK ROTA TP - Calculation Example: Required Initial Clamping Force for a Given Speed

Technical data
24 02.00|ROTA TP |en
Calculation example: required initial clamping force for a given speed
Required initial clamping force F
sp0
for a given speed n
The following data is known for the machining job:
• Gripping from the outside in (application-specific)
• Machining force F
spz
= 3000 N (application-specific)
• max. speed of rotation n
max
= 3200
rpm
("Chuck data" table)
• RPM n = 1200 rpm (application-specific)
• Mass of one (!) top jaw m
AB
= 5.33 kg (applicationspecific)
• Center of gravity radius of top jaw r
sAB
= 0.107 m (application-
specific)
• Safety factor S
z
= 1.5 (according to VDI 3106)
• Safety factor S
sp
= 1.5 (according to VDI 3106)
Note: Masses of the jaw mounting screws and T-nuts are not taken
into account.
First the required effective clamping force F
sp
is calculated using
the machining force stated:

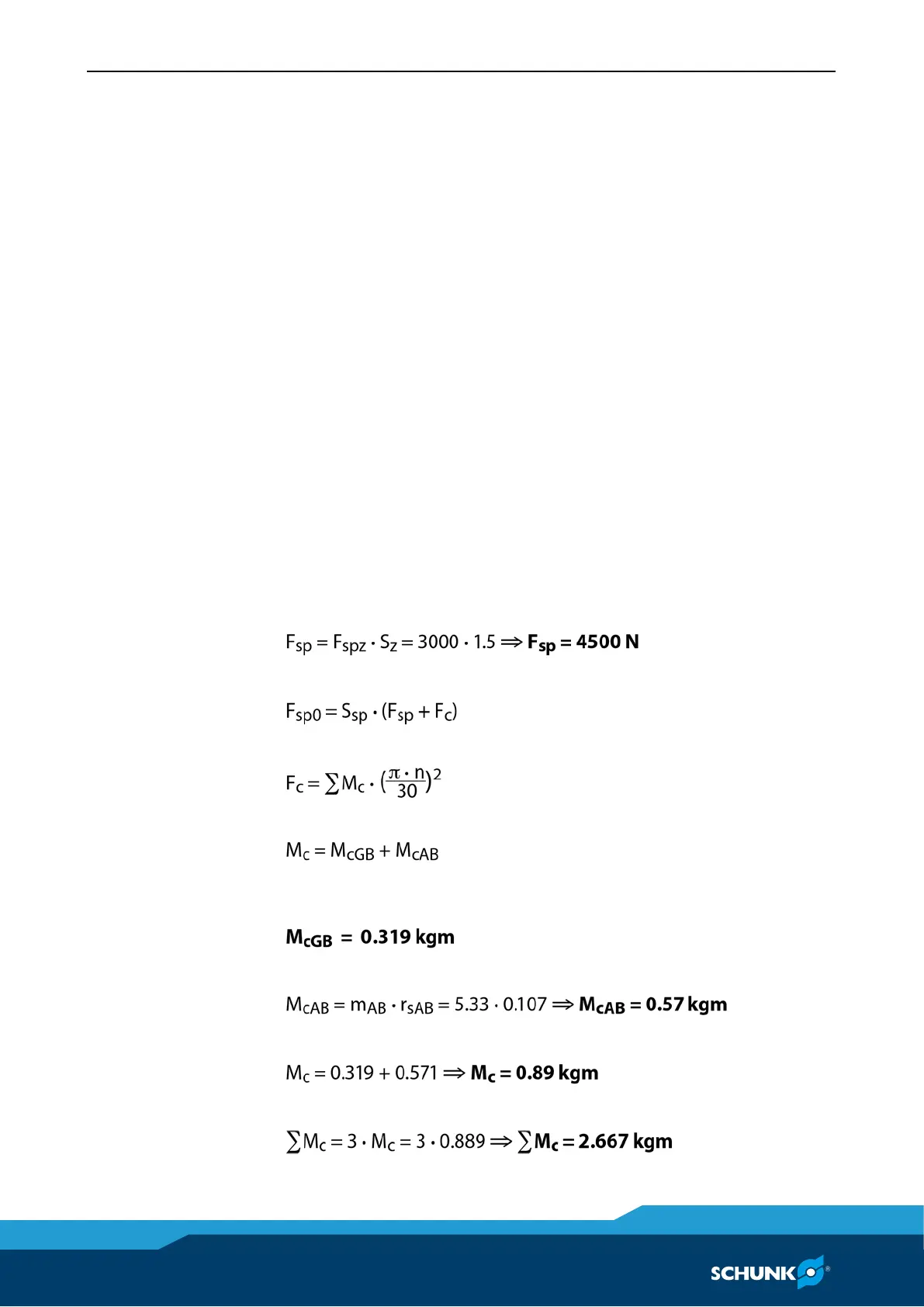

Initial clamping force during shutdown:
Calculation of total centrifugal force:
For two-part chuck jaws, the following applies:
Centrifugal torque of base jaw and top jaw specified in "Chuck data"
table:
For the centrifugal torque of the top jaw, the following applies:
Centrifugal torque for one jaw:
The chuck has 3 jaws, the total centrifugal torque is:
