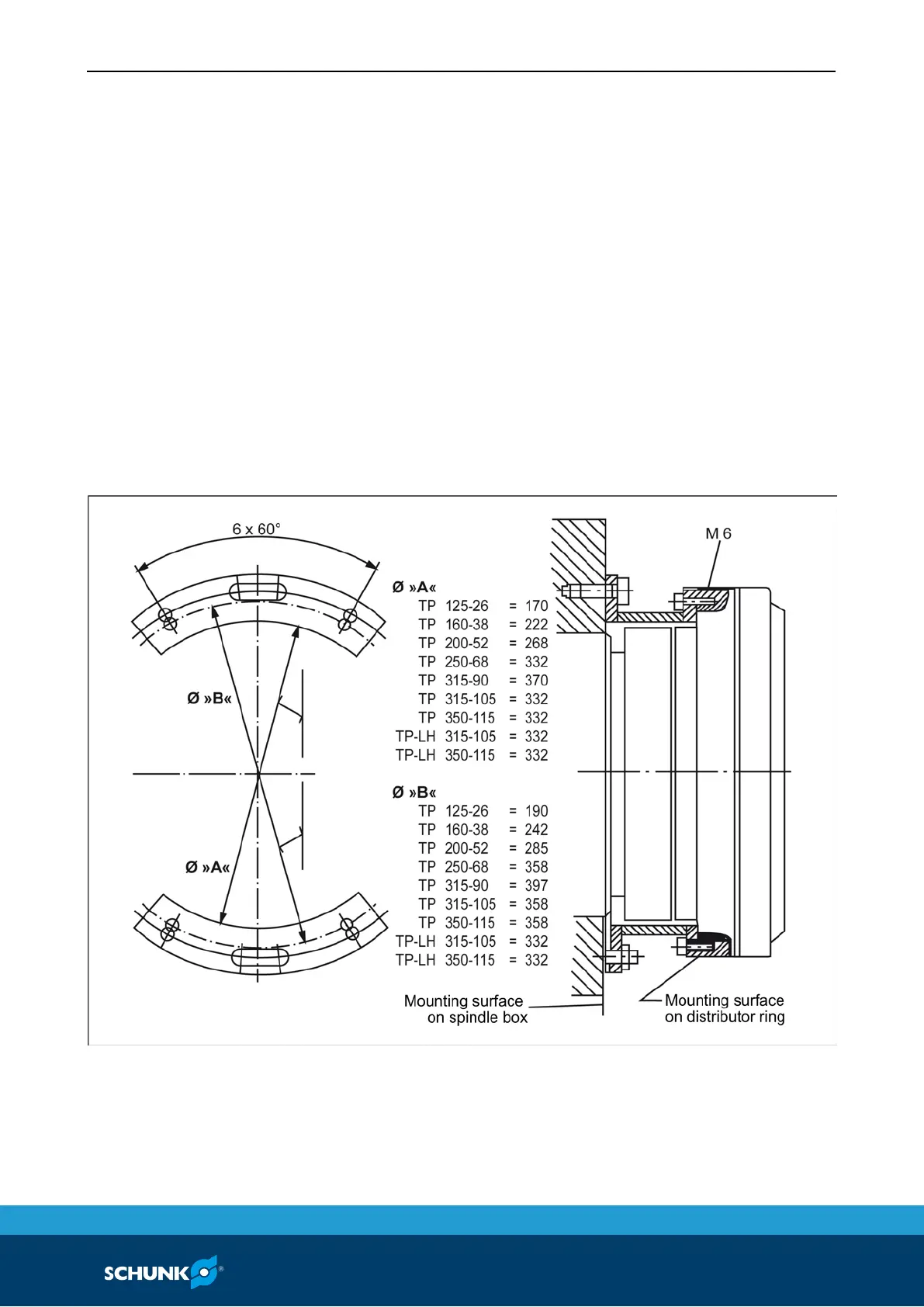

Mounting with bracket
First, the lathe chuck is installed onto the machine spindle with the
loosely attached distributor ring and the distributor ring is aligned
flush with the stepped front side of the chuck. The height dimension
of the spacing consoles can only be determined by measuring between
the face side of the headstock and the rear face side of the distributor
ring. The determined dimension is the height dimension of the
spacing consoles. In this case, the distance dimension a (see table
above) is subtracted.
If the face side of the headstock is not machined, a mean must be
determined and any height differences must be compensated by
means of a positioning screw or positioning sleeve. Incidentally,
the spacing consoles can be customized, but they should achieve
the stability of the presented design.
