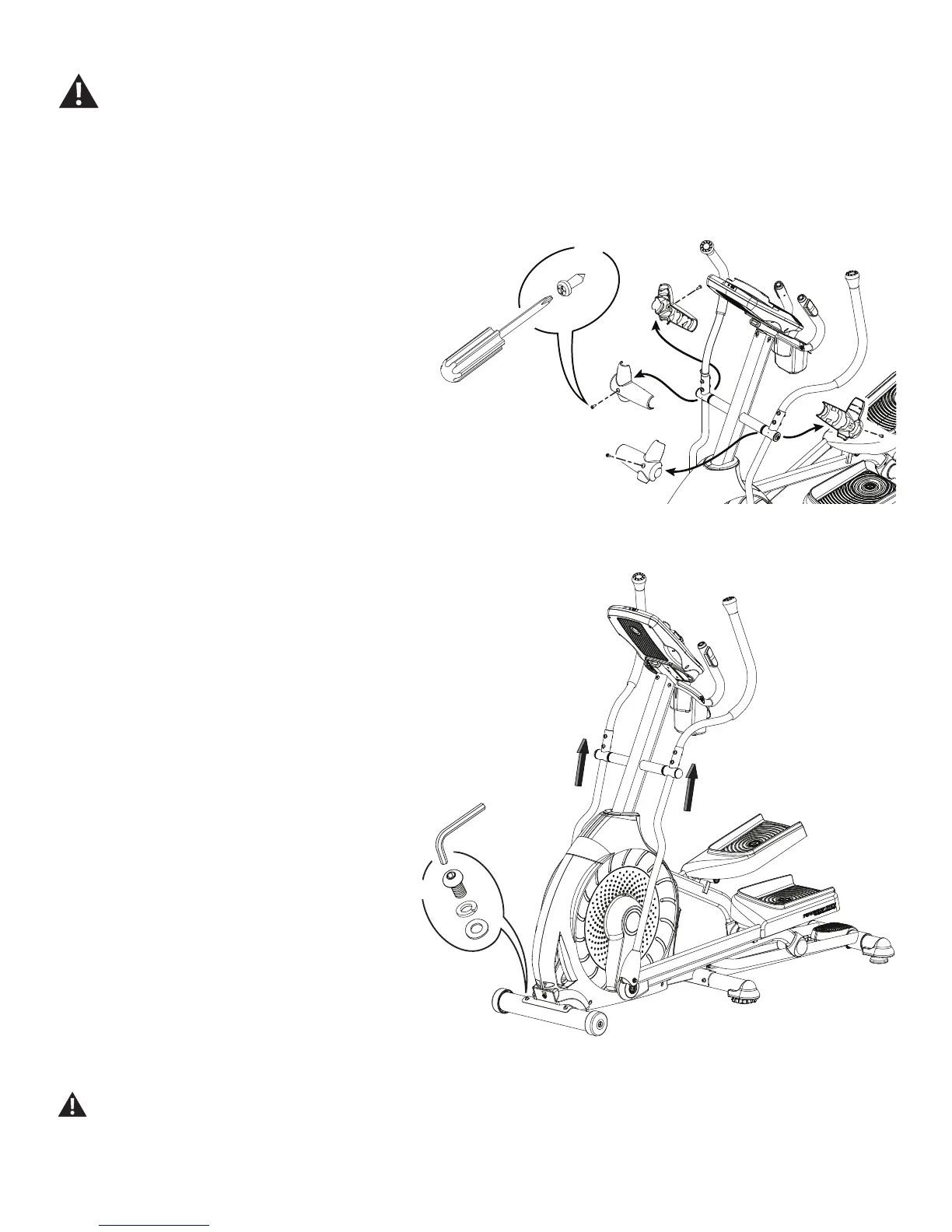

NOTICE: This procedure requires two or three people.
1. 470 only—loosen and remove the 4 screws from the Handlebar
Shrouds. Remove the Handlebar Shrouds and set them safely aside.
2. To free the Front Stabilizer, have one or two people lift the Main Unit
by grasping the Arm Pivot Tubes on each side of the Mast. Carefully lift
and hold the front end slightly off the floor.
3. Loosen and remove the 4 bolts that attach the Front Stabilizer using a
6mm hex wrench. Remove the Front Stabilizer.
4. Installation is the reverse procedure.
5. Dispose of the old part.
6. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
6mm
X4
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall
outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a
secure location.
#2
X4
To Next Page
