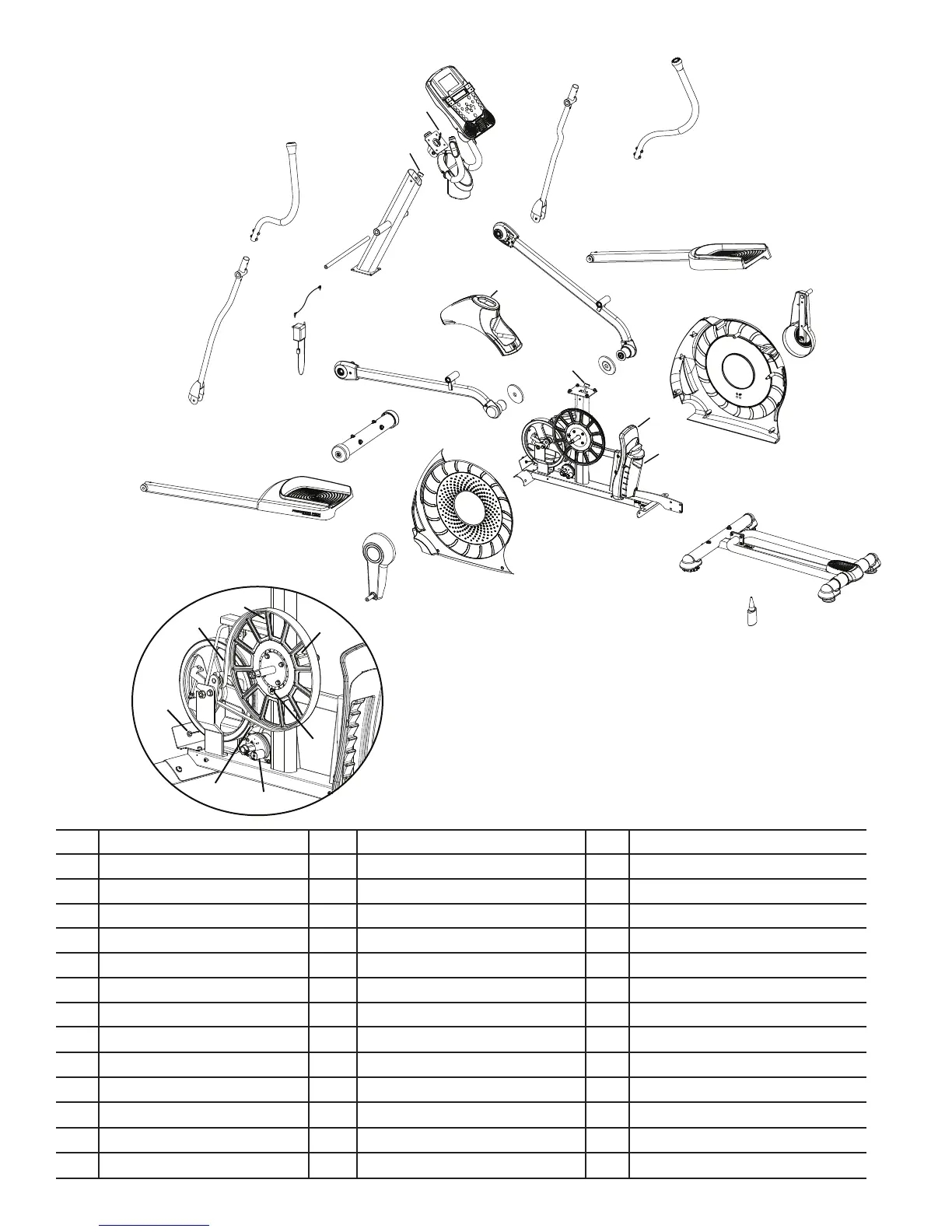

Maintenance Parts Exploded View
Your machine may differ. Use only as a guide.
A Console O Mast Boot CC Speed Sensor Magnet
B Heart Rate Cable P Shroud, Top DD RPM (Speed) Sensor
C Handlebar, Static Q Data Cable, Lower EE Pedal Arm, Left
D Data Cable, Upper R Incline Assembly FF Transport Wheel
E Arm Pivot Rod S Manual Main Shroud GG Front Stabilizer
F Console Mast T Frame Assembly HH Leg, Left
G Water Bottle Holder U Rail Assembly II Power Inlet
H Handlebar Arm, Lower Right V Shroud, Left JJ AC Adapter
I Handlebar Arm, Upper Right W Crank Assembly, Left KK MP3 Cable
J Pedal Arm, Right X Servo Motor LL Handlebar Arm, Lower Left
K Crank Assembly, Right Y Brake Assembly MM Handlebar Arm, Upper Left
L Shroud, Right Z Fly Wheel NN Plate, Roller (older models only)
M Roller AA Drive Belt OO Silicone Lubricant, Bottle
N Leg, Right BB Drive Pulley
A
G
C
B
D
E
F
H
I
M
N
O
P
K
L
T
V
W
U
EE
HH
J
GG
KK
JJ
LL
MM
R
Q
M
FF
FF
NN
NN
AA
BB
CC
DD
Z
X
Y
II
OO
S
