WARNING
ATTENTION
DANGER
IMMEDIATE ACTION REQUIRED
CAUTION
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord
from the wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power
cord in a secure location.
A
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
C
B
D

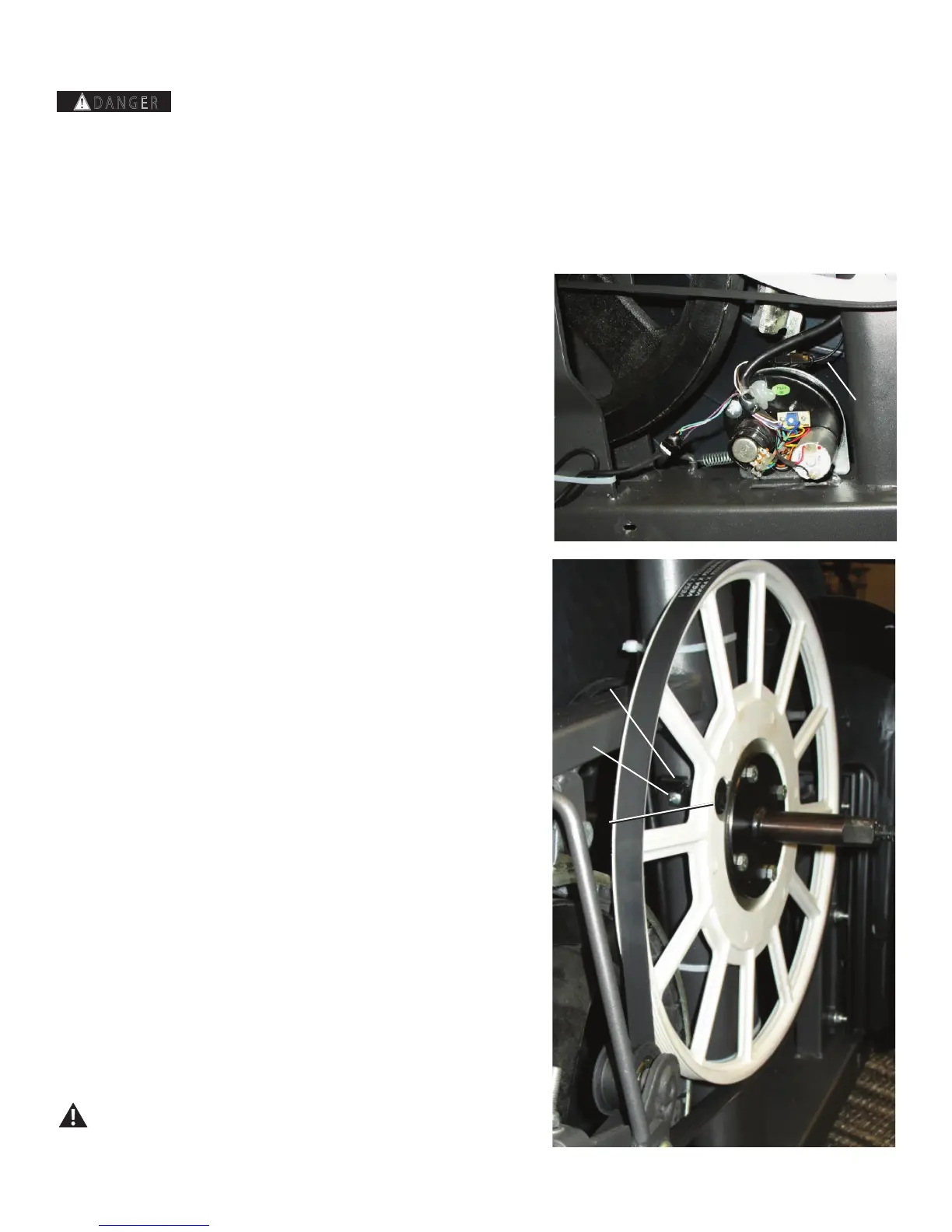

Note: Your machine may not match the image. For reference only.
1. Carefully remove the Shrouds. Refer to the “Replace the
Shrouds” procedure.
2. Disconnect the Speed Sensor Cable (A).
NOTICE: Do not crimp the cables.
3. Using a #2 Phillips screwdriver, remove the indicated bolt (B) from the
RPM Sensor Assembly (C).
Note: The Speed Sensor Magnet (D) is on the Drive Pulley Assembly.
4. Remove the RPM Sensor Assembly (C) and replace with the new
assembly.
5. Installation is the reverse procedure.
NOTICE: Do not crimp any cables. Be sure the routing for the new
RPM Sensor cable (A) and other wiring is correct to prevent
interference from moving parts.
Note: Before fully attaching the Shrouds, verify that the RPM Sensor
(C) and Speed Sensor Magnet (D) on the Drive Pulley do not
touch.
6. Dispose of the old parts.
7. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
