47
C
WARNING
ATTENTION
DANGER
IMMEDIATE ACTION REQUIRED
CAUTION
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord
from the wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power
cord in a secure location.
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
Note: Your machine may not match the image. For reference only.

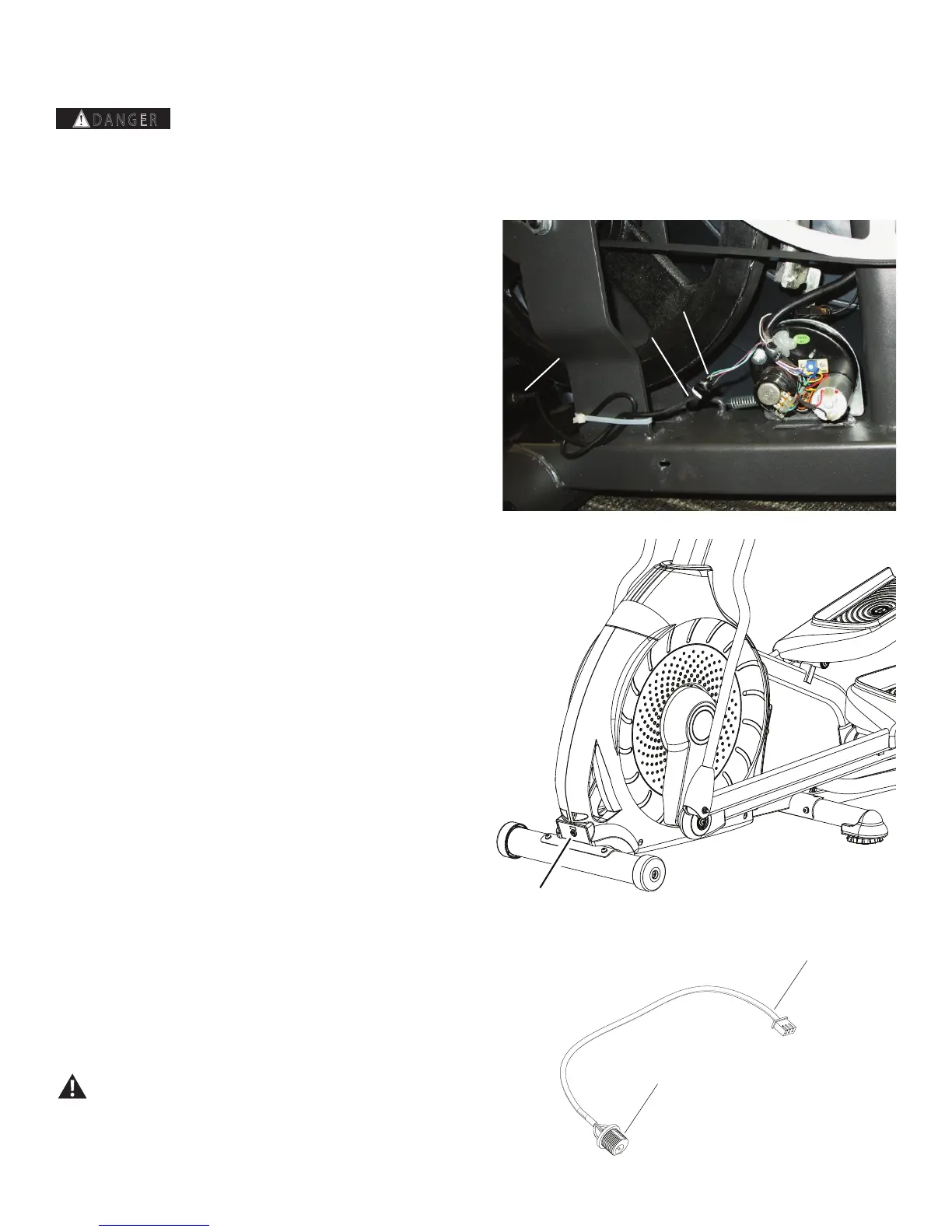

1. Remove the left Shroud. Refer to the “Replace the Shrouds”
Procedure.
2. Carefully disconnect the Power Inlet cable (A) from the wiring har-
ness (B) on the Servo Motor.
3. Using a 17mm wrench, loosen and remove the thin Nut from the
Power Inlet (C) on the outside of the front of the Frame.
NOTICE: Do not crimp the cable.
4. Pull the Power Inlet plug (C) out of the hole toward the inside
of the main unit. Discard the old Power Inlet assembly.
5. Installation is the reverse procedure.
NOTICE: Do not crimp any cables. Be sure the Power Inlet
plug is seated evenly in the hole.
6. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
C
A
B
C
A
To Next Page
