49
X2
6mm
X2
6mm
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall
outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a
secure location.
Note: Your machine may not match the image. For reference only.

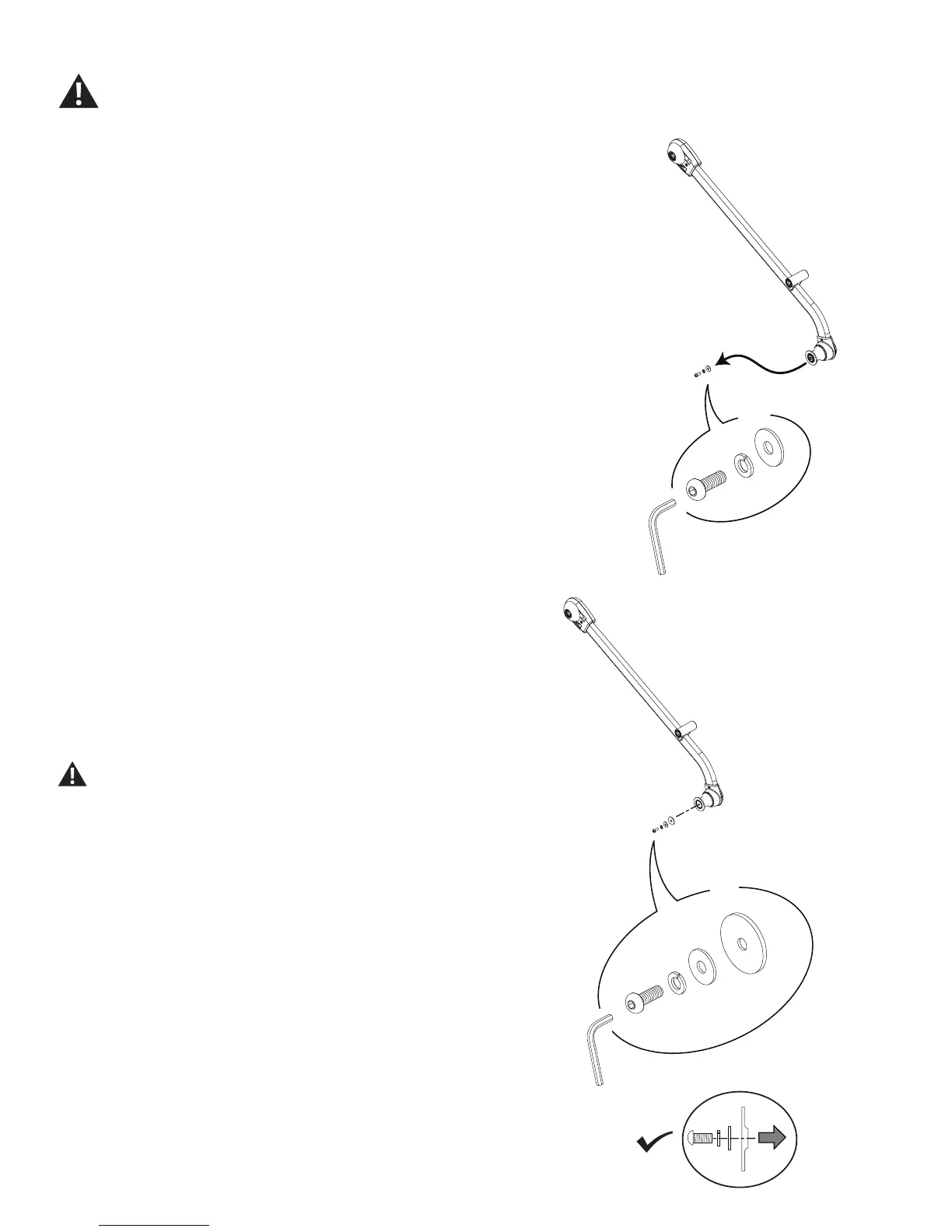

1. Using a 6mm hex wrench, remove the bolt and washers from Roller
assembly on the Leg.
NOTICE: This step may require two people to support the weight of the
Leg.
2. Using a 6 mm hex key, attach the Round Plate to the Leg.
Note: Be sure the inner ridge on the Round Plate is installed toward the
Leg.
3. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
