SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
21
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS

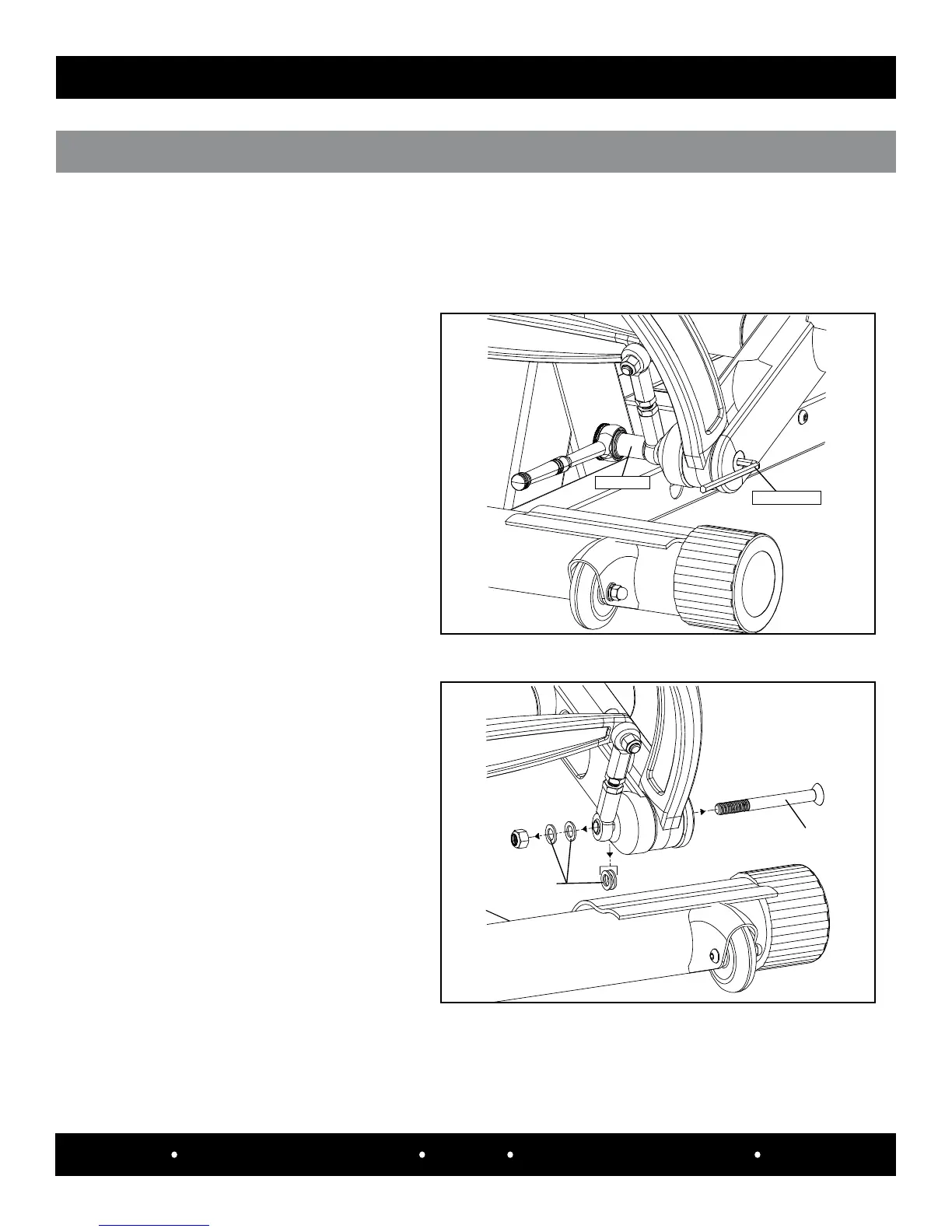

LEFT pIvoT LInk rEmovAL
Tools Required: * 1/4” Allen Hex * 5/8” Socket * Ratchet
* 3/8” Allen Hex * 5/8” Wrench
(A)
(B) x 4
(C)
Step 1:
Step 2:
5/8” Socket
1/4” Allen Hex
Place a towel on the frame, then use a 5/8”
socket on the lock nut and a 1/4” allen hex
on the screw head of the securing hardware
for the lower outer handle assembly.
Remove the (a) 7/16-14 nylock
nut (#1137027), ( b) f our w ashers
(#10357-03641) a nd
(c) 7/16-14 x 4.5” black at head socket
screw (#10537-08048).
Note: The assembly link may swing
downward. if so rest it on the towel.
To Next Page
