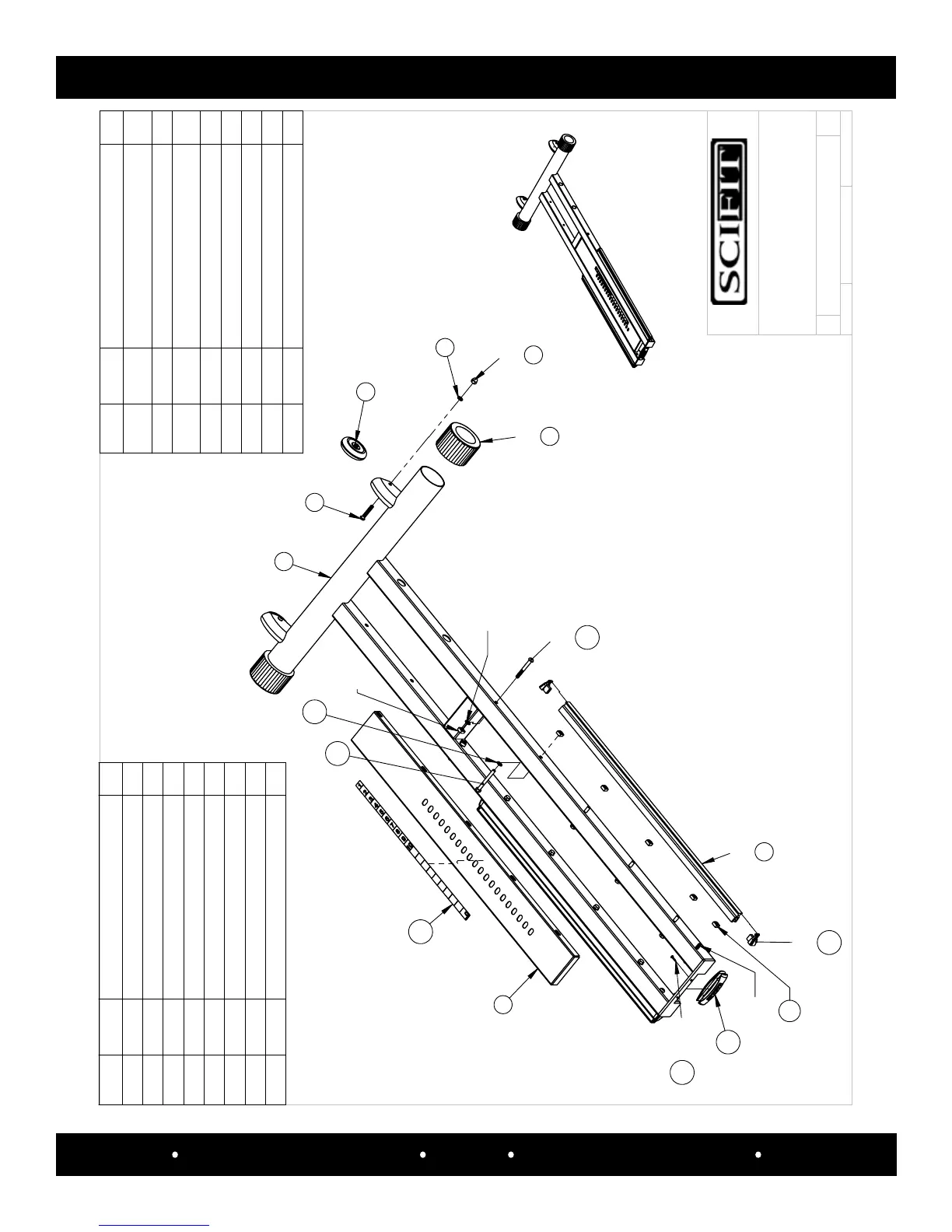

SCIFIT STEP ONE - Exploded View

SPECIFICATIONS
EXPLODED VIEW
81
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
REF VIEW ONLY
5
2X
8
2X
7
2X
4
2X
1
2
3
2X
12
4X
11
4X
16
8X
10
10X
9
2X
13
15
14
2X
(10)
6
(6)
(11)
12 x
ITEM
P/N
DESCRIPTION
QTY.
1
A5028
ASSY, BASE, WELDED
1
2
A5034
TRACK, ADJUSTMENT, SEAT
1
3
A5062
EXTRUSION, RAIL,
2
4
A1890
CAP, BASE, 3",
2
5
P2144
WHEEL, FRONT, PROII
2
6 37622
5/16-18 SQUARE NUT
12
7 1170961
NUT, ACORN, 5/16-18, SST
2
8 1133892
WASHER, SPLIT LOCK, 5/16
2
ITEM
P/N
DESCRIPTION
QTY.
9 73783
SCREW, 5/16-18 x 1.75, BHSC
2
10 1133712
5/16 INT L/W
10
11 171292
5/16-18 x 2.5" SS BTN HD SCREW
4
12
A5215
ENDCAP, COVER,
4
13
A5449
HANDLE, LIFT
1
14 142859
PLASTITE, #6 X 5/8
2
15
P1982
DECAL, NUMBER, 1"
1
16 13064
5/16-18 X 2 3/4 HCS
8
NOT TO SCALE
SIZE
DWG. NO.
A
REV.
SHEET 1 OF 18
WEIGHT:
STEPONE
STEPONE SERVICE EXPLODED VIEW
SCIENTIFIC SOLUTIONS FOR FITNESS
TITLE:
A
