SCIFIT STEP ONE - Pivot

27
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
SPECIFICATIONS
pIvoT BLADE rEpLAcEmEnT
Tools Required: * Ratchets * 3/ 8” Allen Hex * Torque w rench with range a bove 720 i n/lbs
* 5/8” Socket *7/32 Allen Hex
Place a small amount of Loctite 271 on the
threads of the screw, then loosely insert the
washer and screw previously removed to
hold the blade in place.
271

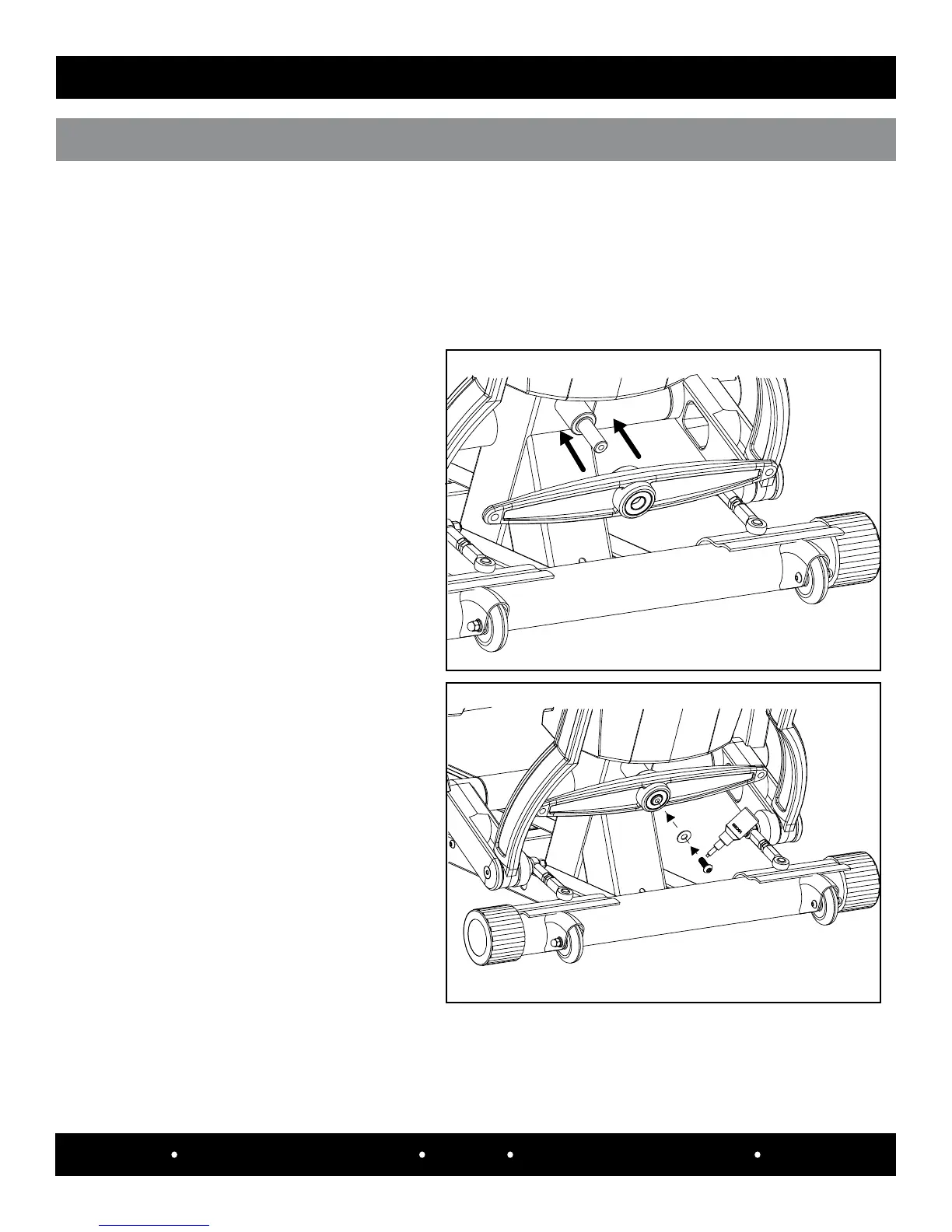

Step 1:
Carefully place the new pivot blade onto
the shaft.
Step 2:
