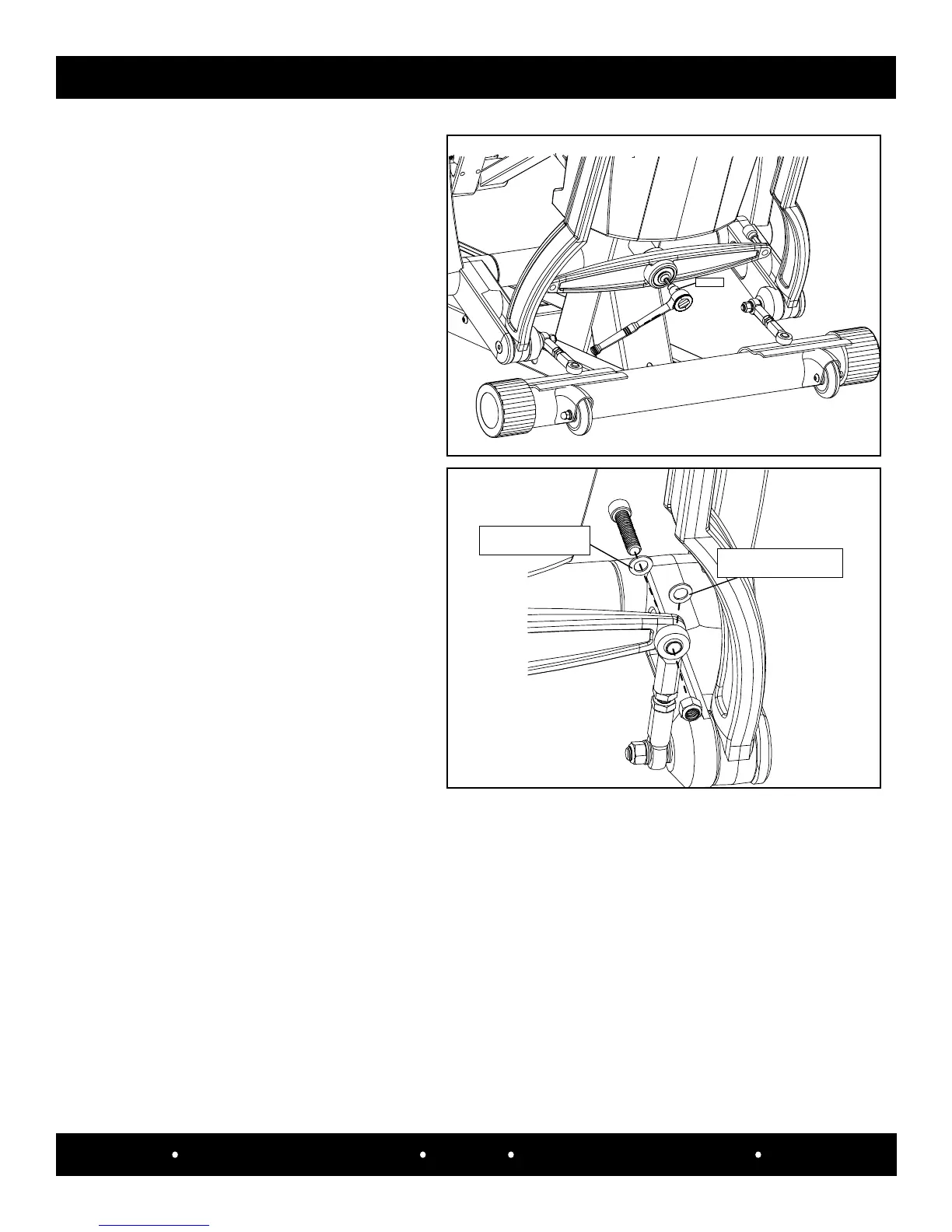

MECHANICAL PARTS REMOVAL/REPLACEMENT
7/32” Hex
Step 4:
Use a 7/32” allen hex to secure the pivot
blade.
Step 5:
Place washer between
pivot link and pivot blade
Place washer between
screw and pivot blade
Loosely secure the upper part of the left
pivot link with the previouly removed
hardware 7/16-14 x 1 3/4” black socket
head s crew ( #10537-08100), t wo w ashers
(#10537-03641), pivot link (#A5474) and
nylock nut (#1137027).
Step 6:
Repeat step 5 for the right pivot link.
