SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
Step 4:

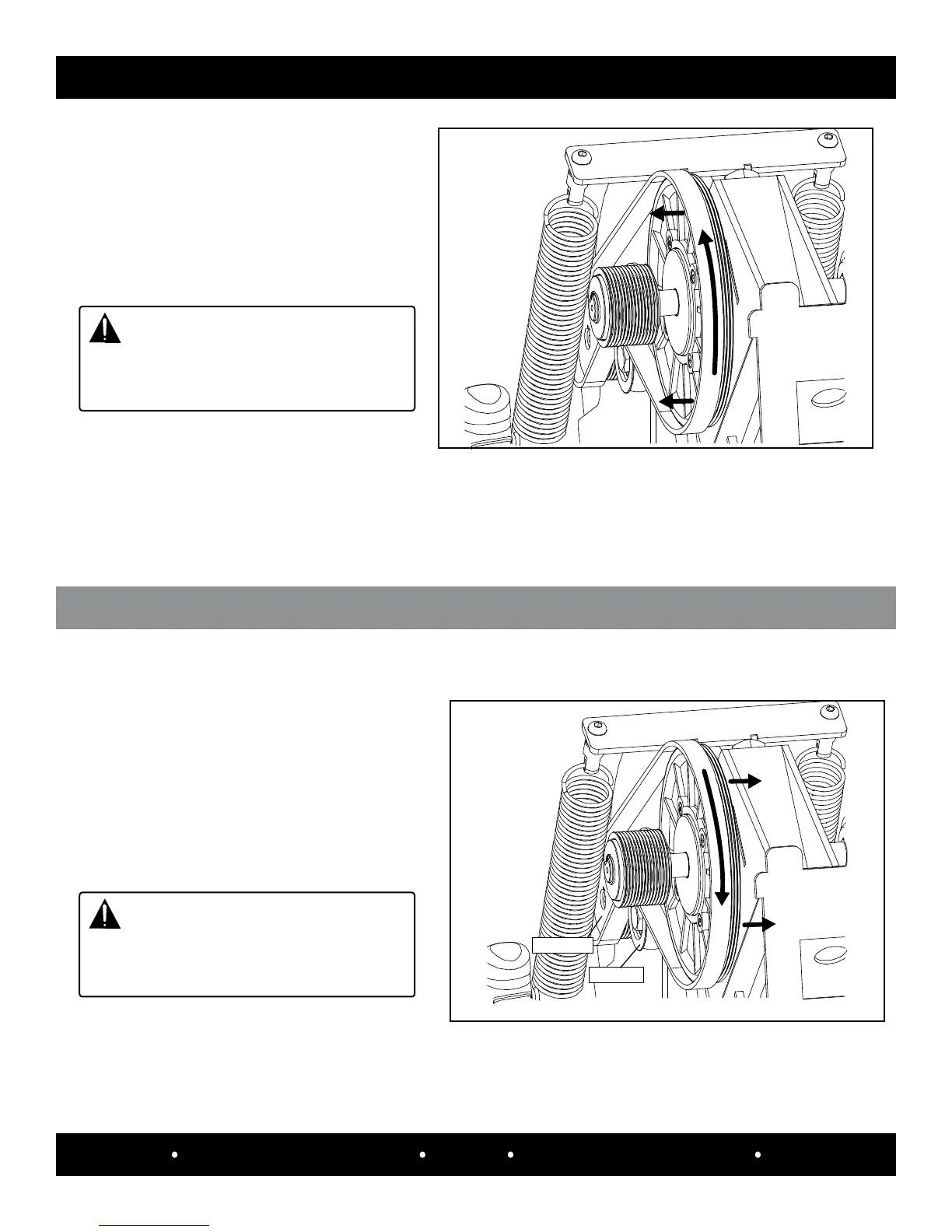

Carefully walk the drive belt (#P5166)
off the large pulley turning in a
counterclockwise direction.
ATTENTION
Pinching points may occur when removing
the belt, please use caution.
SPECIFICATIONS
DrIvE BELT rEpLAcEmEnT
Place the drive belt around the brake pulley
and over the idler pulley, then carefully
walk the drive belt onto large pulley’s
grooves t urning i n a c lockwise direction.
Note: Verify that belt is centered on the
pulley.
Step 1:
Idler pulley
Brake pulley
ATTENTION
Pinching points may occur when replacing
the belt, please use caution.
